SYM 10. A.C. GENERATOR/STARTING CLUTCH
10-7
Installation
Install the components in the reverse
procedures of removal.
Caution
Torque value: 1.0~1.4kgf-m

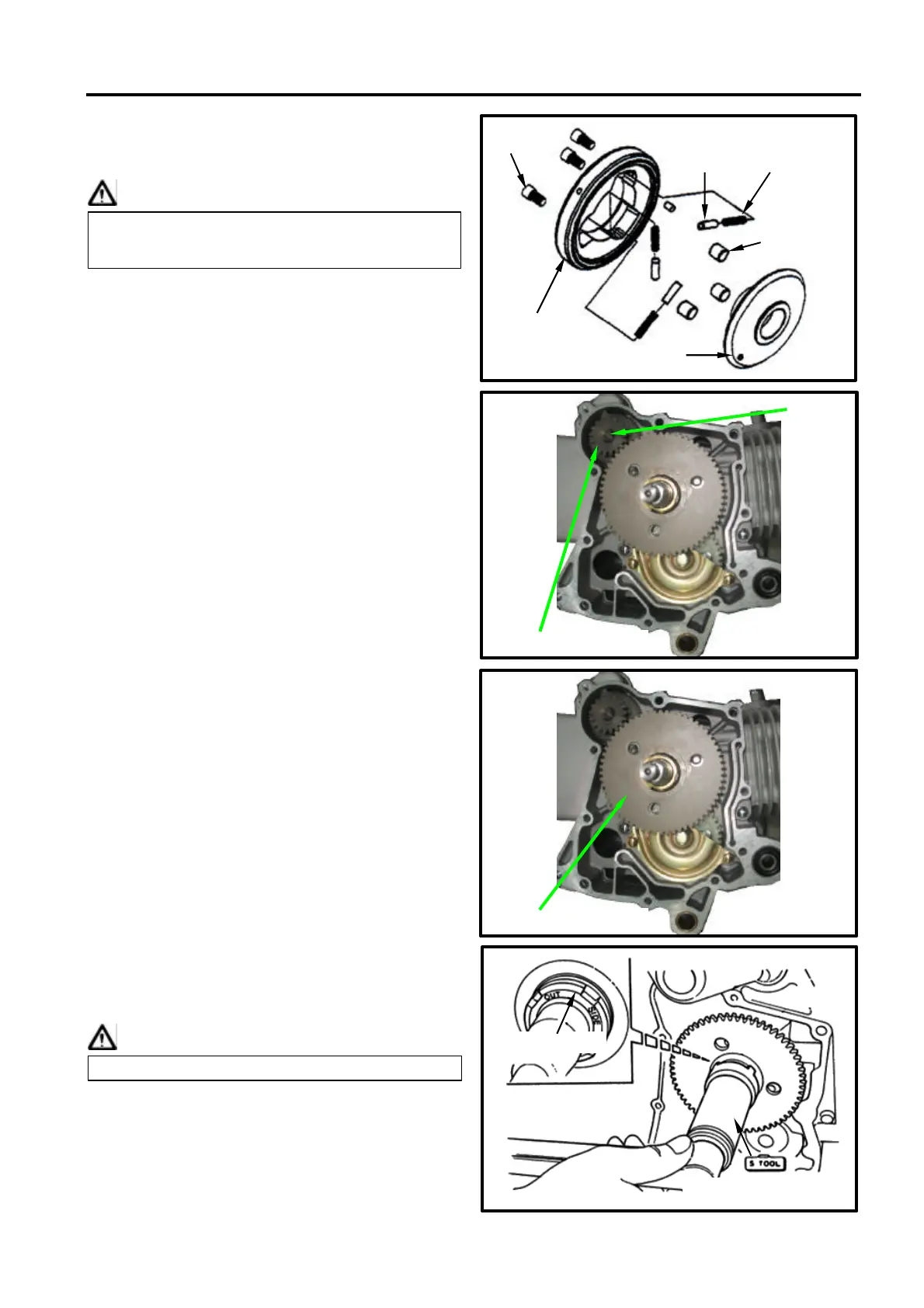

Starting clutch Installation
Install reduction gear shaft and reduction gear.
Install starting clutch.
Install the starting clutch outer and starter
driven gear.
Hold the starting driven gear with the
universal fixture.
Tighten the 22mm anti-loosen lock nut and
gasket.
Caution
Special service tools:
Anti-loosen lock nut socket
Universal fixture
Torque value: 9.0~10.0kgf-m
Add adhesive onto the thread of hex
socket bolt.
A
dd engine oil onto the thread of
lock
nut
.
Spring
Ro
ller
Plug
Clutch cover
Clutch body
Lock nut
Lock nut socket
H
ex socket
bolt
Starting reduction gear
Shaft
Starter driven gear
