2. MAINTENANCE INFORMATION SYM
2-4

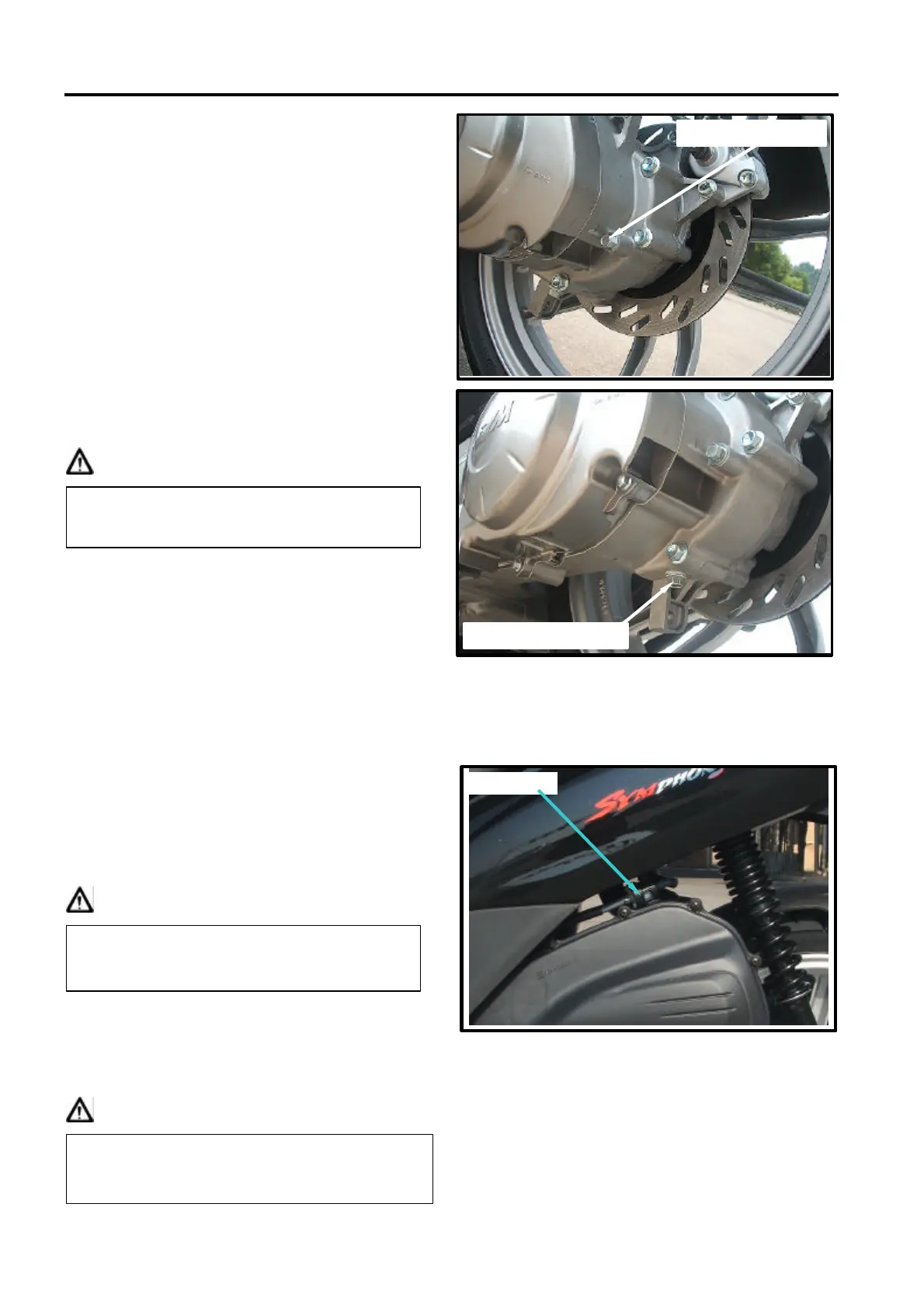

Gear Oil
Inspection
Check gear oil if leaking.
Park the motorcycle with main stand on flat
level place.
Turn off engine and remove the gear oil
draining plug.
Place a measurement cup under the
draining hole.
Remove the oil drain plug and drain gear oil
into a measurement cup.
Check gear oil if enough.
Replacement
At first, remove the gear oil refilling bolt, and
then remove the draining plug.
Install the draining plug after drained oil out.
Torque value: 0.8~1.2 kgf-m
Caution
Fill out gear oil to specified quantity from the
engine oil filling hole.
Install the oil filling bolt.
Torque value: 0.8~1.2 kgf-m
Transmission oil capacity: 180 c.c.(170
c.c. for change)
Recommended: genuine SYM HYPOID gear
oil (SAE 85W-140).
Fuel System
Fuel Pipe
Remove luggage box, side cover, center
cover, body frame cover, and pedal, as well
as front inner box.
Check all pipes, and replace it when they are
deterioration, damage or leaking.
Warning
Fuel filter
Remove the side cover.
Remove fuel pipe from the fuel filter.
Replace the fuel filter with new one.
Install the fuel filter.
Caution
Inspect if wa
sher is in good condition.
Replace it with new one if it was deformed
or damaged.
Gear oil refilling bolt
Gear oil draining plug
Gasoline is a
low ignition material so any
kind of fire is strictly prohibited as dealing
it.
The arrow on the fuel filter means the flow
direction of fuel and check it if leaking after
installation.
Fuel filter
