5. REMOVAL OF ENGINE SYM
5-8
INSTALLATION OF ENGINE
Check if the bushings of engine suspension
frame and shock absorber for damaged. If so,
replace with new ones.
Install the engine according to the reversing
order of removal.
Caution
Engine suspension nut:
Torque Value: 4.5~5.5kgf-m
Rear shock absorber bolt:
Torque Value: Top: 3.5~4.5kgf-m
lower: 2.4~3.0kgf-m
Rear wheel axle nut:
Torque Value: 11.0~13.0kgf-m
l Notice both feet and hands safety for
squeezing as engine installation.
l Do not bent or squeeze each wires or
hose.
l Route all ca
bles and wires in accordance
with the routine layout.

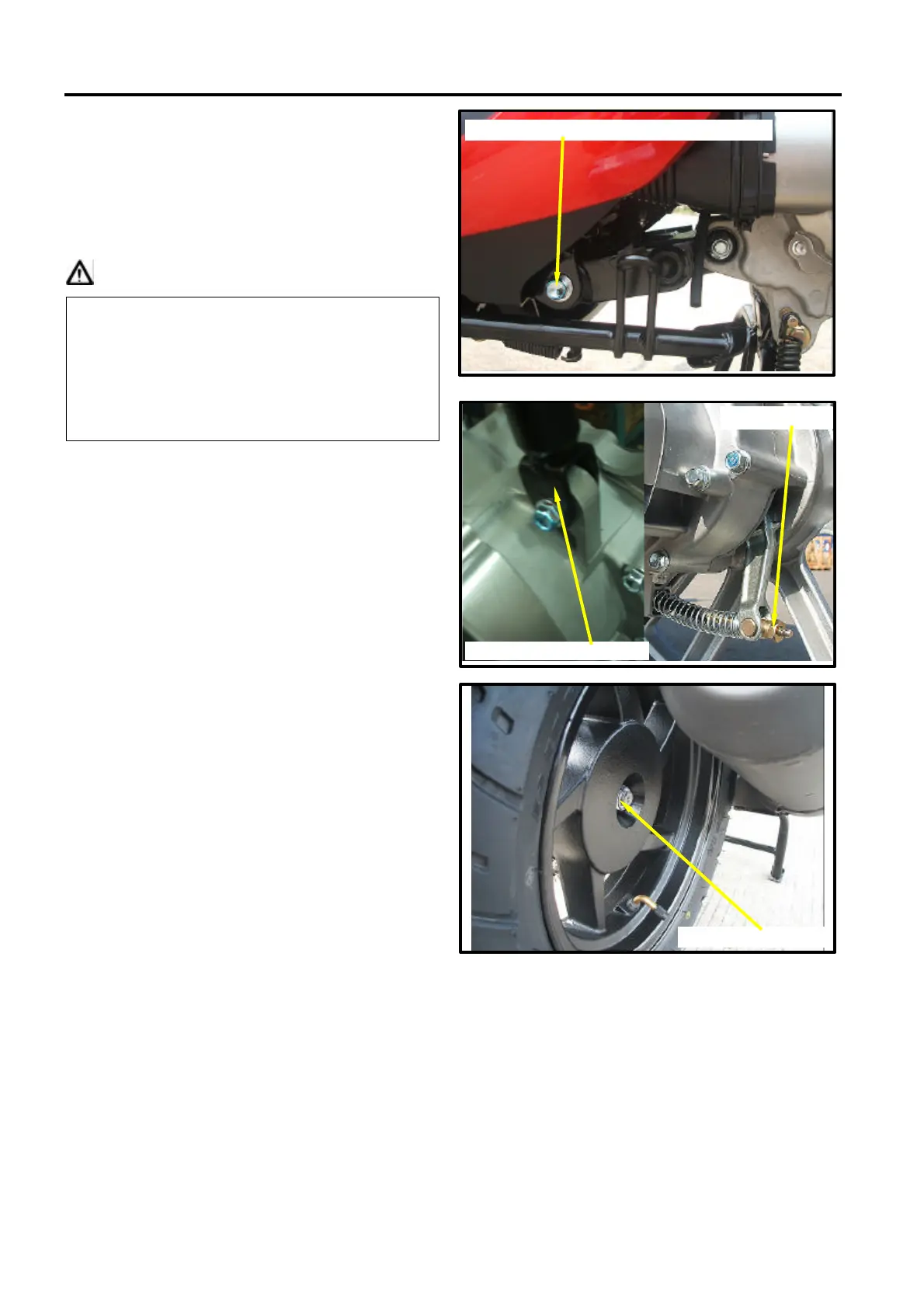

Bolt of engine suspension frame (right side)
Rear wheel axle nut×1
Brake cable nut
