SYM 10. A.C. GENERATOR/STARTING CLUTCH
10-3

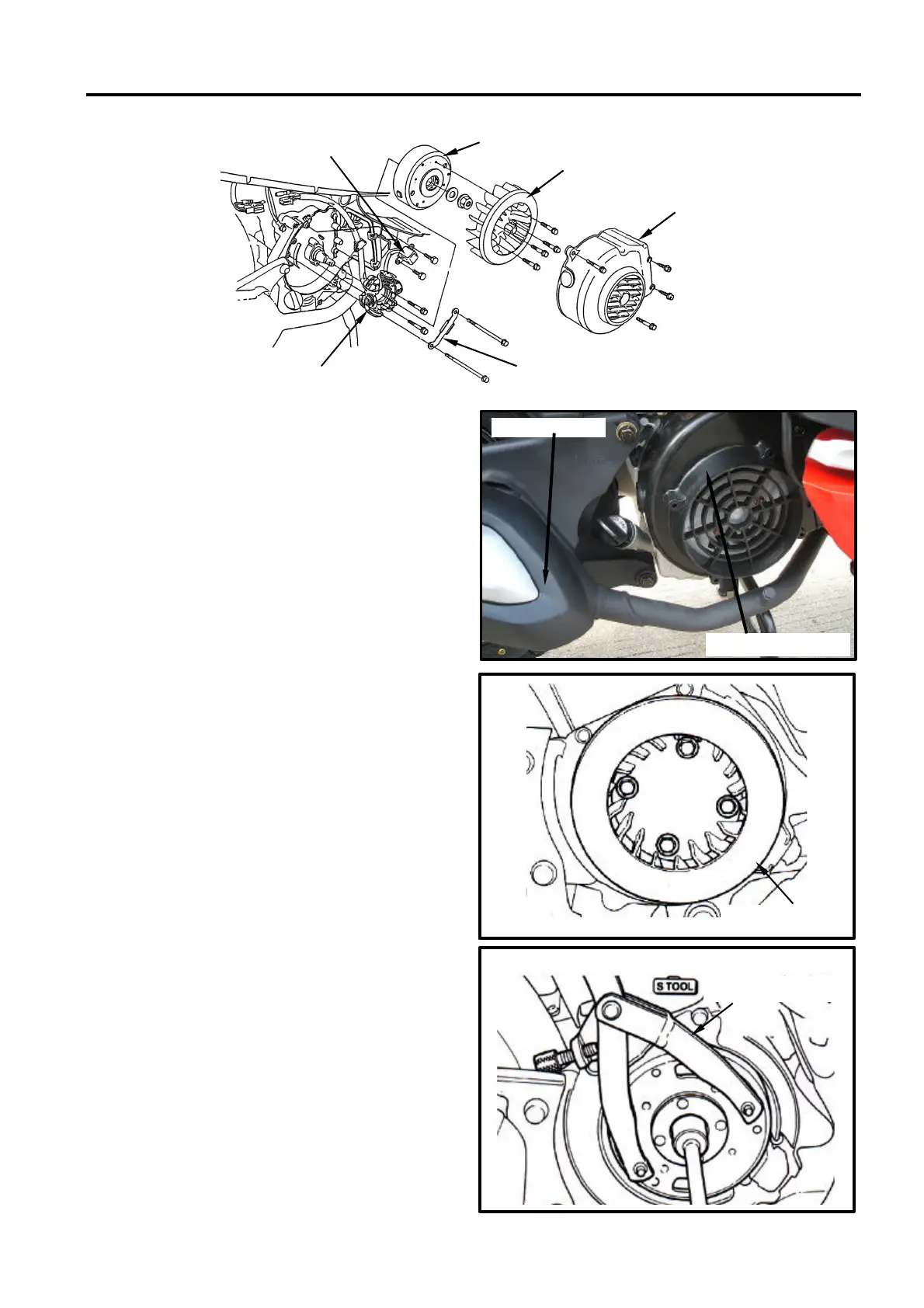

A.C. GENERATOR REMOVAL
Drain out the engine oil.
Remove the body cover.
Remove the exhaust muffler. (2 bolts, 2 nuts)
Remove the fan shroud. (4 bolts)
Remove the fan. (4 bolts)
Hold the flywheel with the universal fixture.
Remove the 10mm nut on the flywheel.
Special Service Tools:
Universal Fixture
Flywheel
Cooling fan
Cooling f
an
shroud
Coil
Pulse generator
Cable guide
Universal fixture
Cooling fan
Exhaust muffler
Cooling fan shroud
