15. REAR WHEEL/REAR SHOCK ABSORBER SYM
15-4
REAR SHOCK ABSORBER
Removal
Remove the luggage box. (bolts x 6)
Remove the rear carrier. (bolts x 3)
Remove the left & right body covers. (screws
x 4, bolts x 3)
Remove the air cleaner bolts (bolts x2)
Remove the lower nut of the rear shock
absorber (bolt x 1)
Remove the upper nut of the rear shock
absorber (bolt x 1)
Remove the rear shock absorber.
Installation
Install the rear shock absorber according to
the reverse procedure of removal.
Caution
Torque values
Rear shock absorber lower mount bolt:
2.4~3.0 kgf-m
Rear shock absorber upper mount bolt:
3.5~4.5 kgf-m
The rear shock absorber has to be replaced
with one set and can not be replaced by
unauthorized persons. Otherwise, it might
damage the rubber bushing and
construction.

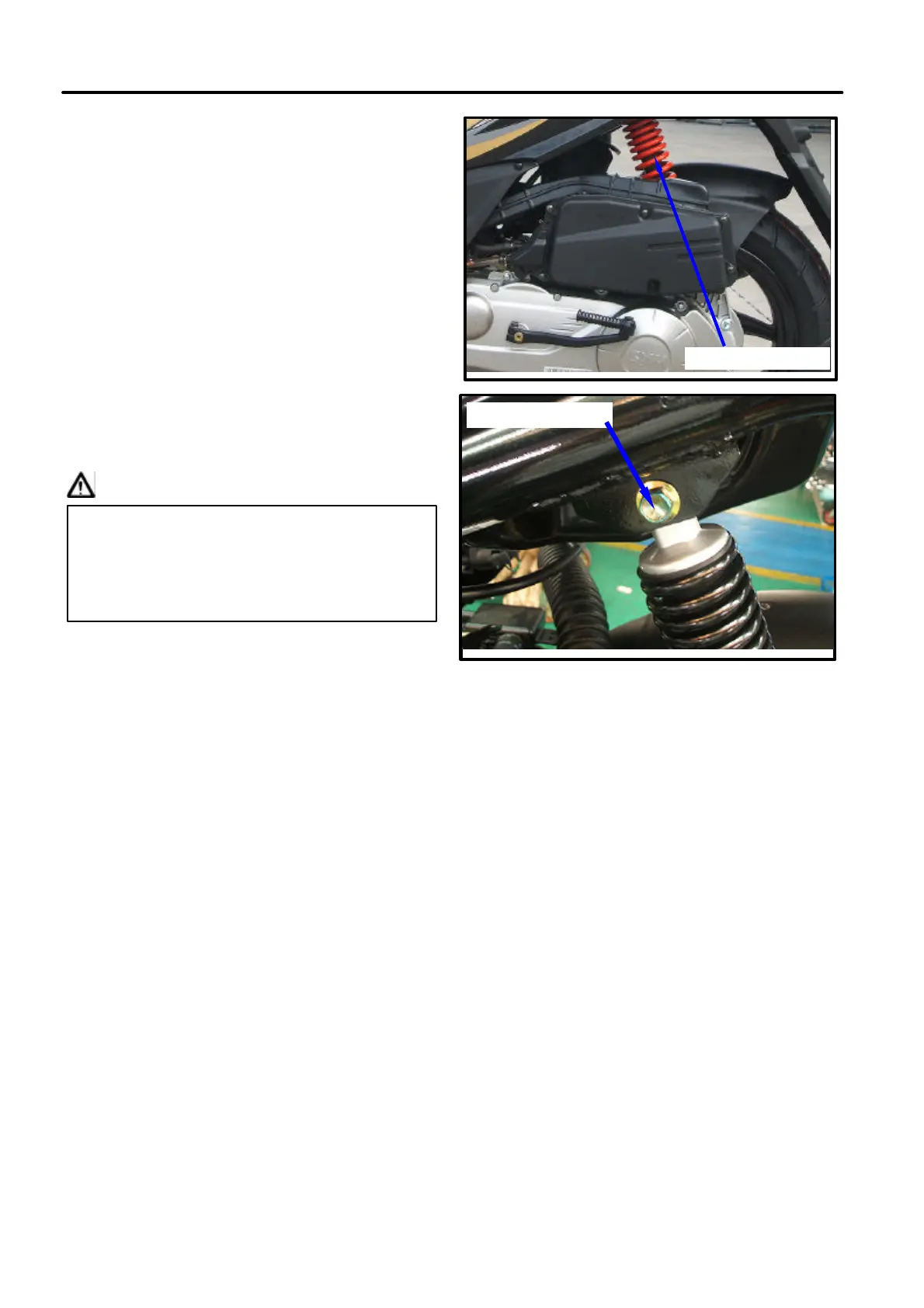

upper mount bolt
