1. GENERAL INFORMATION/TROUBLE DIAGNOSIS SYM
1-16

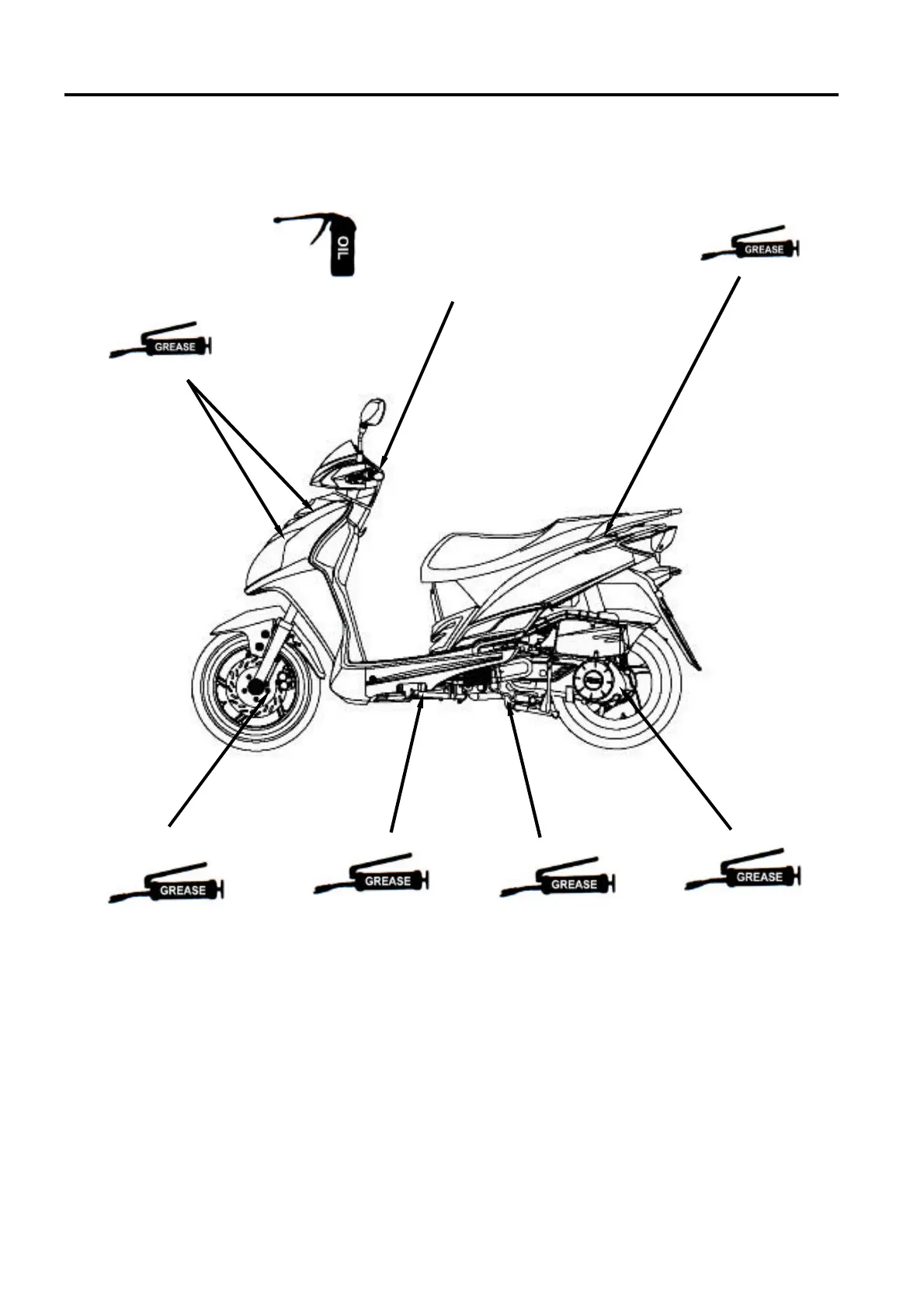

LUBRICATION POINTS
Acceleration cable/ Front & rear brake lever pivot
Steering shaft bearing
Seat lock
Speedometer gear /
Front wheel bearing
Side stand shaft
Main stand shaft
Rear wheel bearing
