3. LUBRICATION SYSTEM SYM
3-6

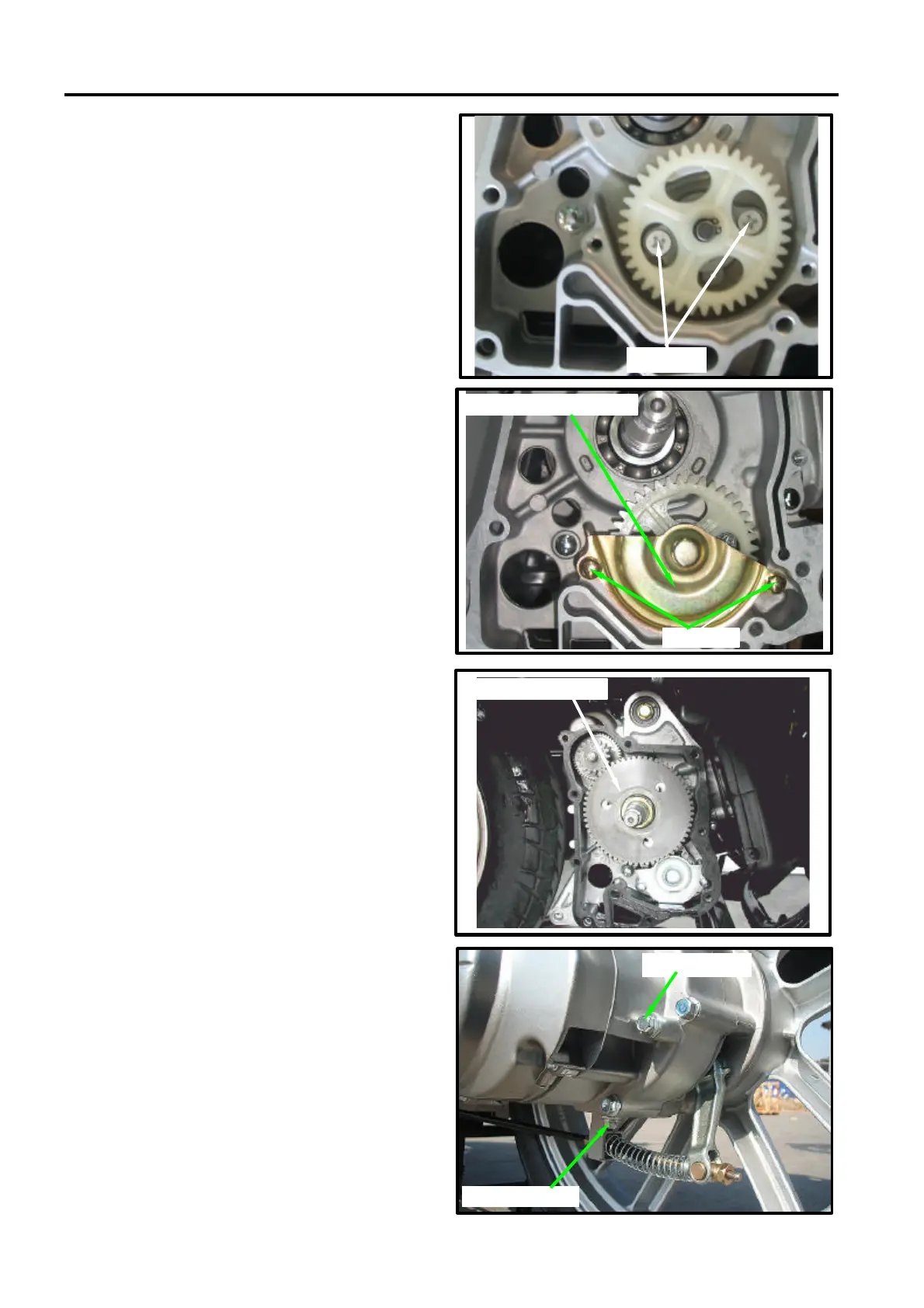

Oil Pump Installation
Install the oil pump (2 bolts).
Install oil pump outer cover (2 bolts).
Install the starting gear and the alternator.
(Refer to chapter 10)
GEAR OIL
Oil Level Inspection
Park the motorcycle on flat ground with main
stand.
Turn off engine and remove both engine oil
filling bolt and oil draining bolt.
Start drive gear
2 bolts
2
bolt
s
oil pump outer cover
Filling bolt
Draining
bolt
