SYM 5. REMOVAL OF ENGINE
5-3
ENGINE REMOVAL
Open the seat.
Remove the rear carrier (3 bolts ).
Remove the luggage box assembly (4
bolts ).
Remove the body cover (4 screws, 3 bolts).
Remove the power connector of auto by-
start.
Remove the generator connector and pulse
generator connector.
Remove the starter motor wire on the Starter
magnetic switch.
Remove the spark plug cap.

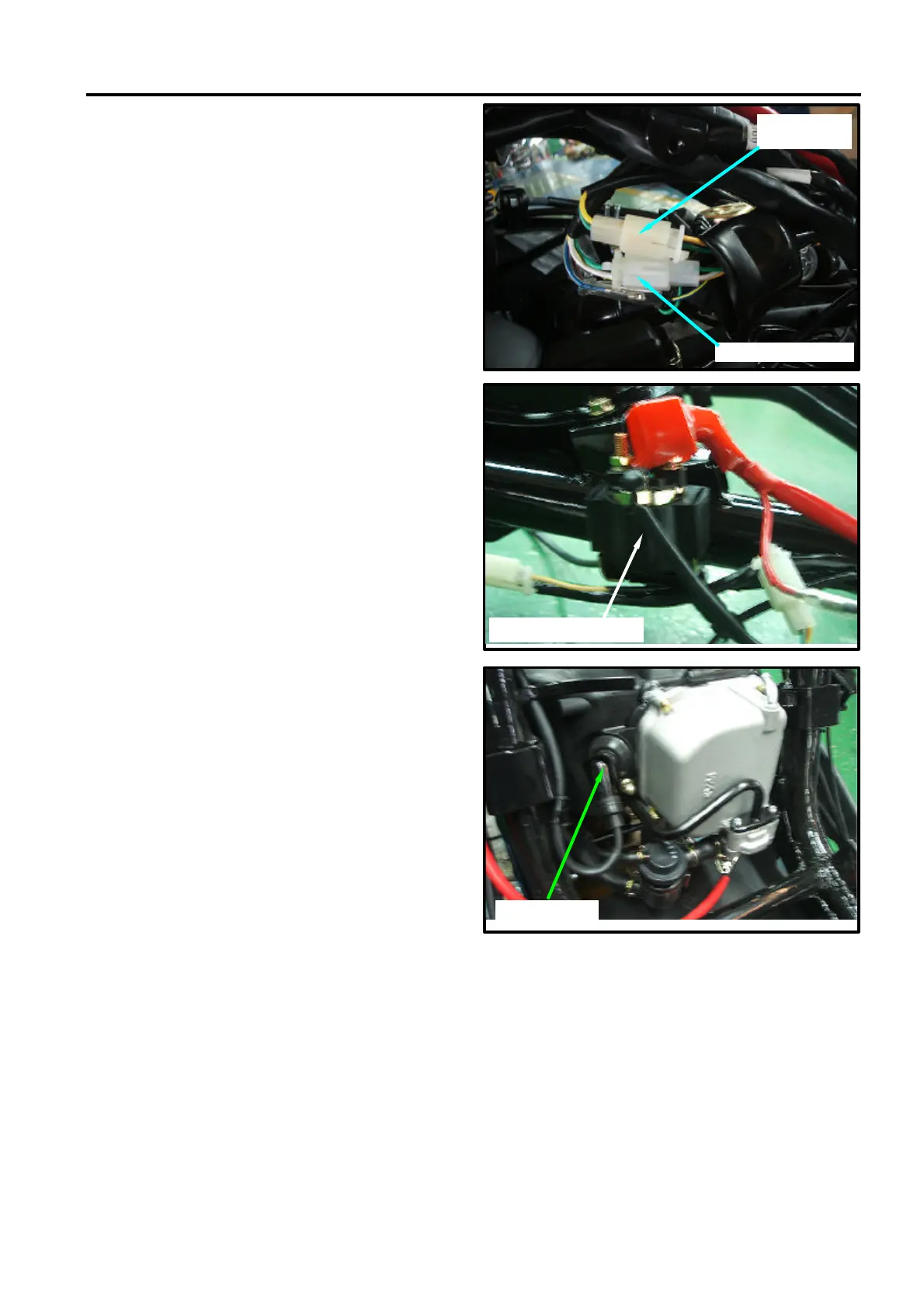

Auto by-start
connector
Generator connector
Starter magnetic switch
Spark plug cap
