SYM 3. LUBRICATION SYSTEM
3-5
Oil Pump Inspection

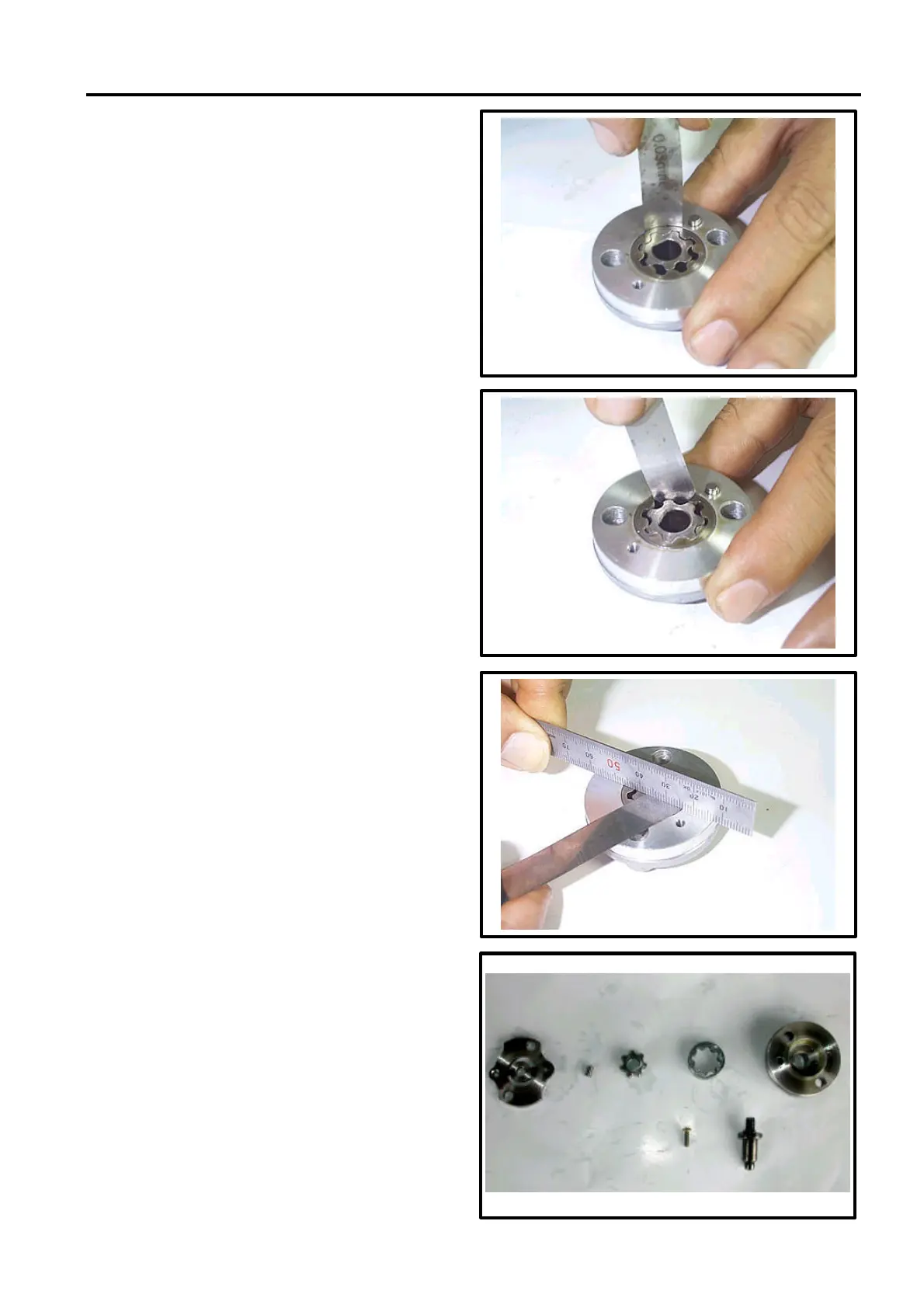

Check the clearance between oil pump body
and outer rotor.
Limit: below 0.12 mm
Check clearance between inner and outer
rotors.
Limit: below 0.12 mm
Check clearance between rotor side face
and pump body.
Limit: below 2.0 mm
Oil Pump Re-assembly
Install inner and outer rotors into the pump
body.
Align the indent on driving shaft with that of
inner rotor. Install the driving shaft.
Install the oil pump cover and fixing pin
properly and then tighten screw. (1 screw)
