6. Engine Removal
6-2
Engine Removal-Carburetor Model

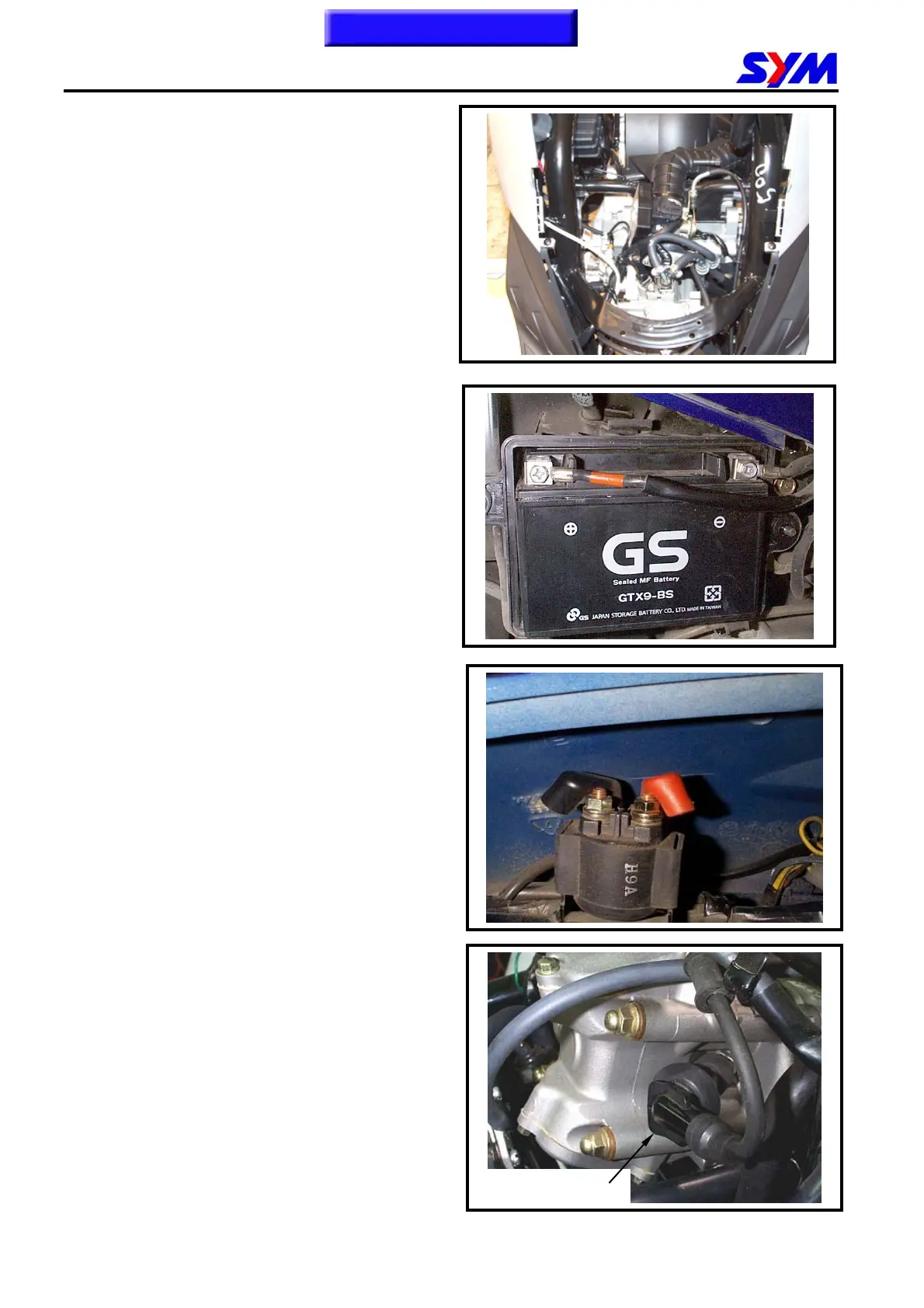

Open seat cushion.
Remove the luggage box (6 bolts and 1 screw).
Remove rear carrier (3 bolts).
Remove rear bracket (2 bolts).
Remove the rear central cover (4 screws).
Remove the left and right pedals (1 bolt).
Remove the left and right covers (4 screws).
Remove the central cover (6 screws).
Remove the left & right body covers and the
central upper cover (4 screws and 2 bolts).
Remove the battery negative (-) post.
Remove the battery positive (+) post.
Remove ignition coil cable.
Disconnect the auto by-starter wire connector.
Disconnect A.C.G wire connectors.
Remove starter motor wire from relay.
Remove spark plug cap.
Spark plug cap
