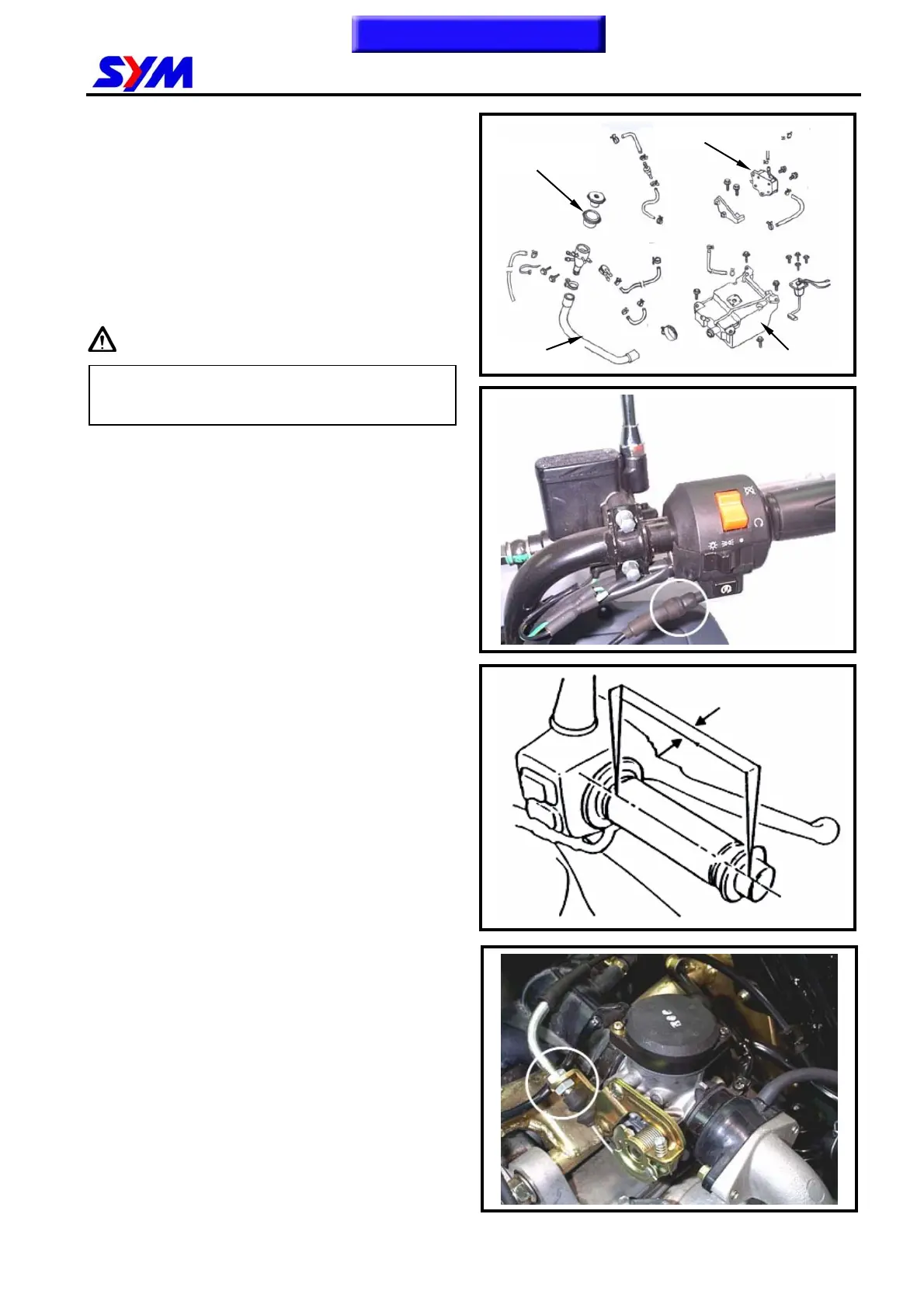

2. Maintenance Information
2-3
Fuel Lines
Remove trunk
Remove side cover.
Remove central cover.
Remove body frame cover.
Remove pedal.
Remove front glove box.
Check all lines, and replace it when they are
deterioration, damage or leaking.
Warning
Gasoline is a low ignition material so any
kind of fire is strictly prohibited as dealing it.
Throttle Operation
Have a wide open of throttle valve as handle bar
in any position and release it to let back original
(full closed) position.
Check handle bar if its operation is smooth.
Check acceleration cable and replace it if
deteriorated, twisted or damaged.
Lubricate the cable if operation is not smooth
Measure handle bar free play in its flange part.
Free play: 2~6 mm.
Adjustment can be done in either end.
Secondary adjustment is conducted from top
side.
Remove rubber boot, loosen fixing nut, and then
adjust it by turning the adjustment nut.
Primary adjustment is conducted from bottom
side.
Loosen fixing nut, and adjust by turning the
adjustment nut.
Tighten the fixing nut, and check acceleration
operation condition.
Filler hole
Fuel tank
Fuel pump
2~6 mm
