18. Electrical System
18-11

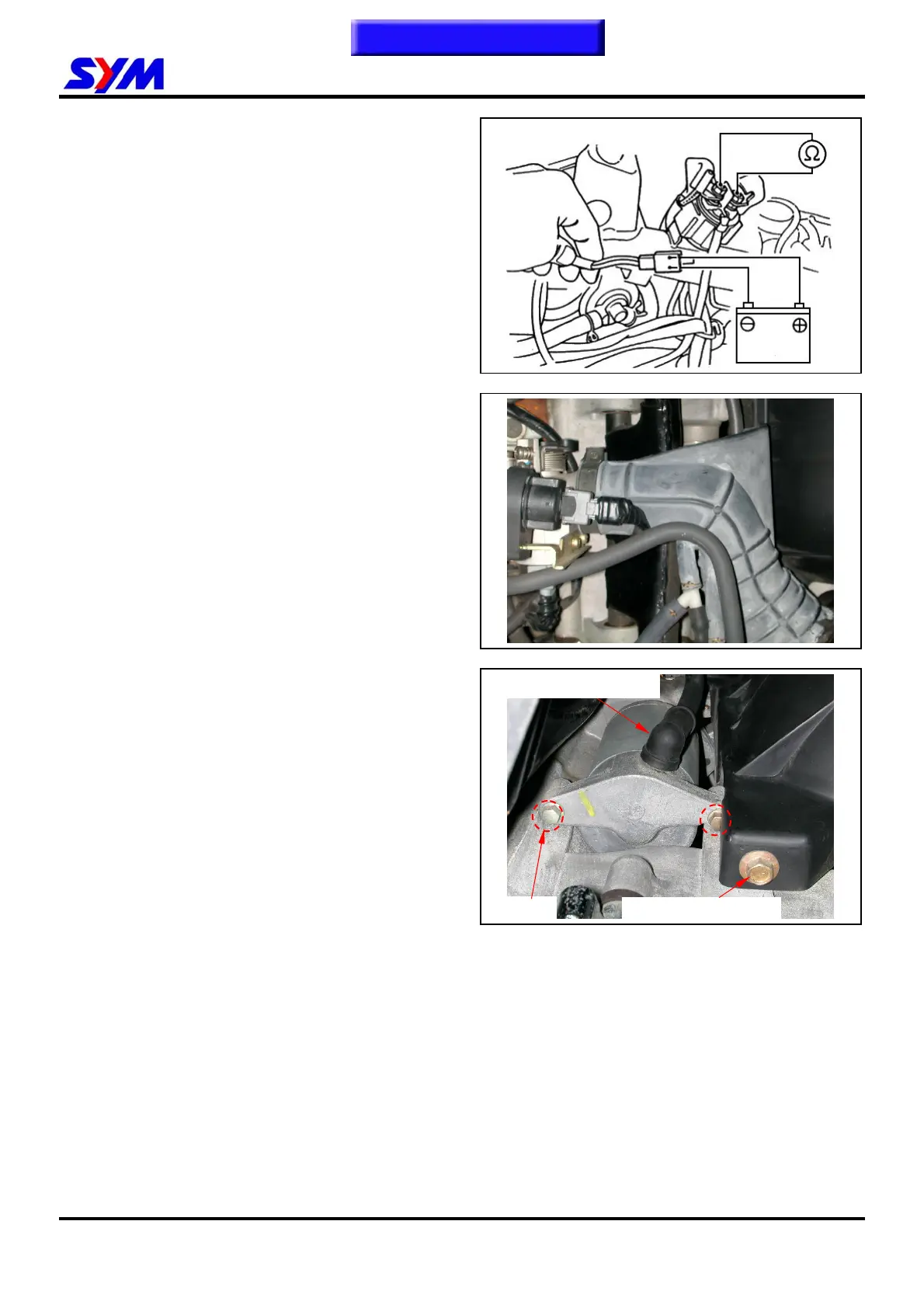

Connect the yellow/red cable to the battery
positive terminal and the green/yellow cable to
the battery negative terminal.
Check the continuity of the large terminal end.
If there is no continuity, replace the relay.
Starter motor removal
Turn off the main switch.
Remove the luggage box.
Disconnect the negative pole wire.
Remove the air cleaner (2 bolts).
Remove the starter motor wire.
Remove the rear inner fender lock bolt.
Remove the starter motor (2 lock bolts).
Starter motor installation
Install in the reverse order of removal.
2 bolts
Starter motor wire
Rear inner fender bolt
