18. Electrical System
18-10
Starting System

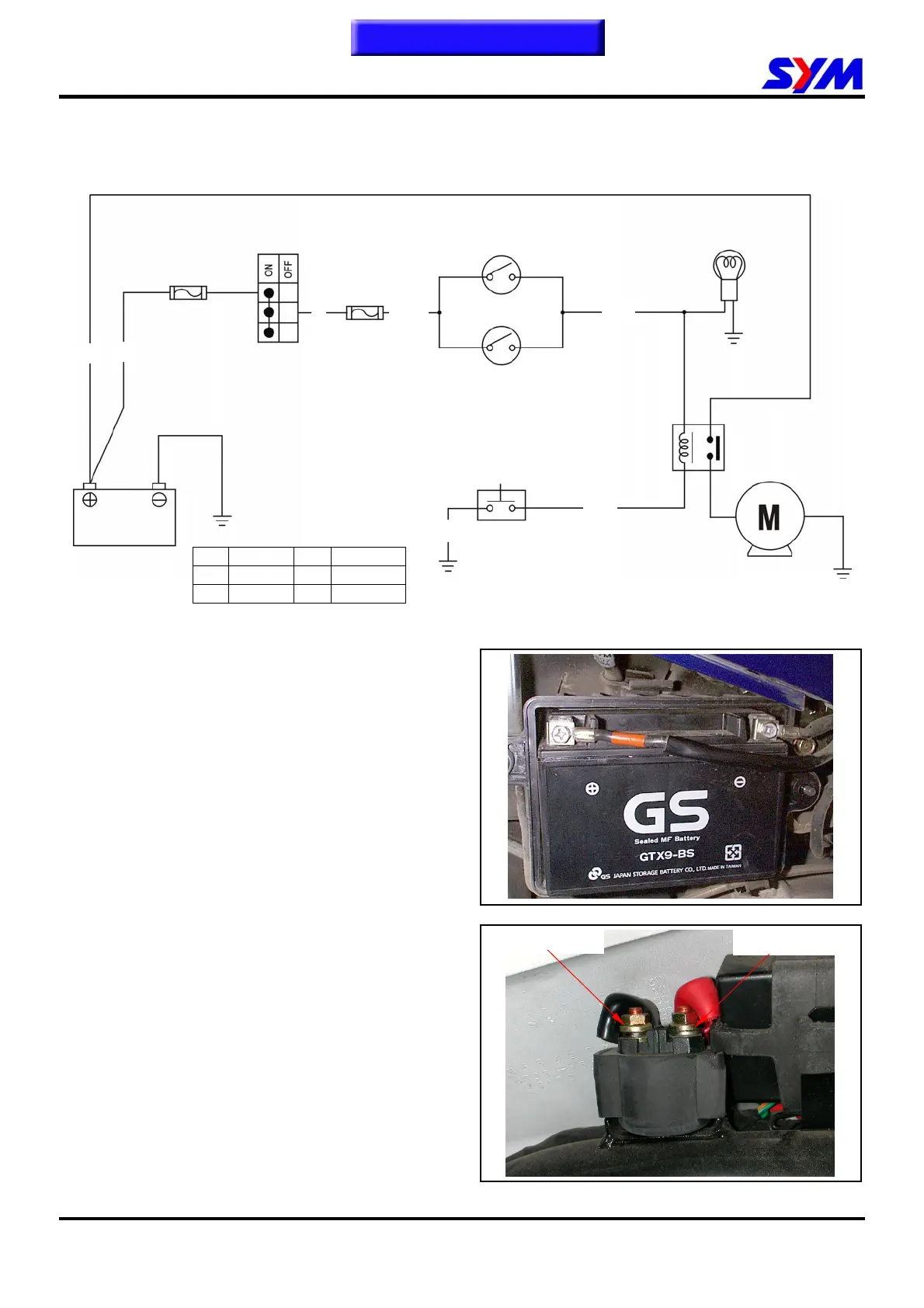

Starting circuit
Starter relay inspection
Remove the luggage box assembly.
Open the main switch
Press the brake
Push down the starter switch
If a sound of “Click Click” is heard, it indicates
the relay function normally.
Disconnect the cable positive terminal from
the relay.
Disconnect the positive cable of the starter
motor.
Disconnect the connector of the relay.
Connect an ohmmeter to the large terminal
end.
Brake light
Front brake switch
G/Y
W/G
Y/R
R
G
Main switch
Fuse 20A
Battery
R Red W White
B Black L Blue
G Green Y Yellow
R
Starter switch
Starter relay
Starter motor
B
Fuse 15A
Rear brake switch
Starter motor Battery (+)
