Sym X'PRO RV125 User Manual

9. V-Belt Drive System
9-6

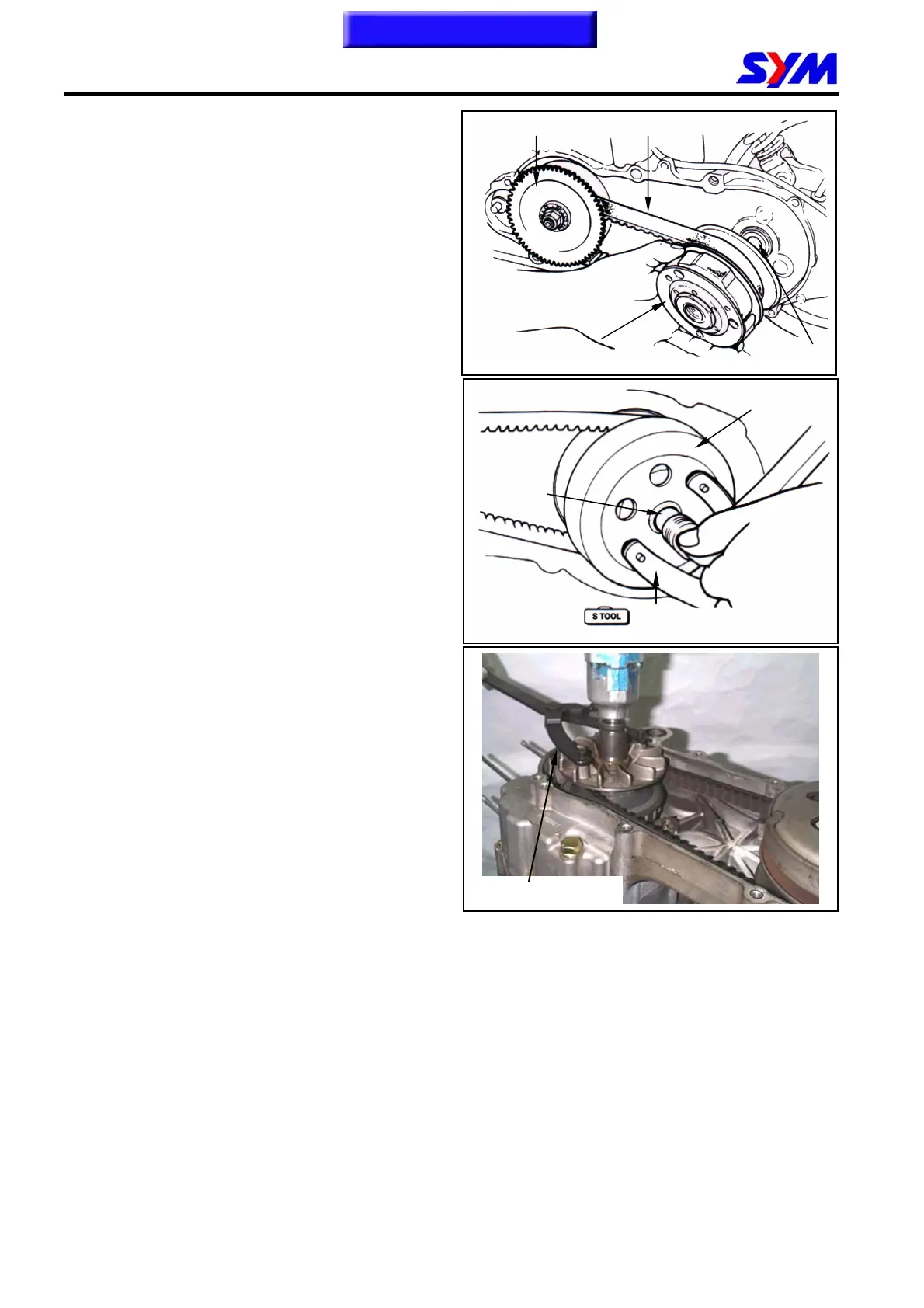

Install the clutch with universal holder, and then
tighten nut to specified torque value.
Torque value: 5.0~6.0 kgf-m
Drive Face
Removal
Remove left crankcase cover.
Hold generator flywheel with universal holder,
and then remove drive face nut.
Remove drive face.
Drive face
Driven pulley
Drive shaft
Driving belt
Clutch outer
Nut
Universal holder
Universal holder
