3. LUBRICATION SYSTEM
3-5

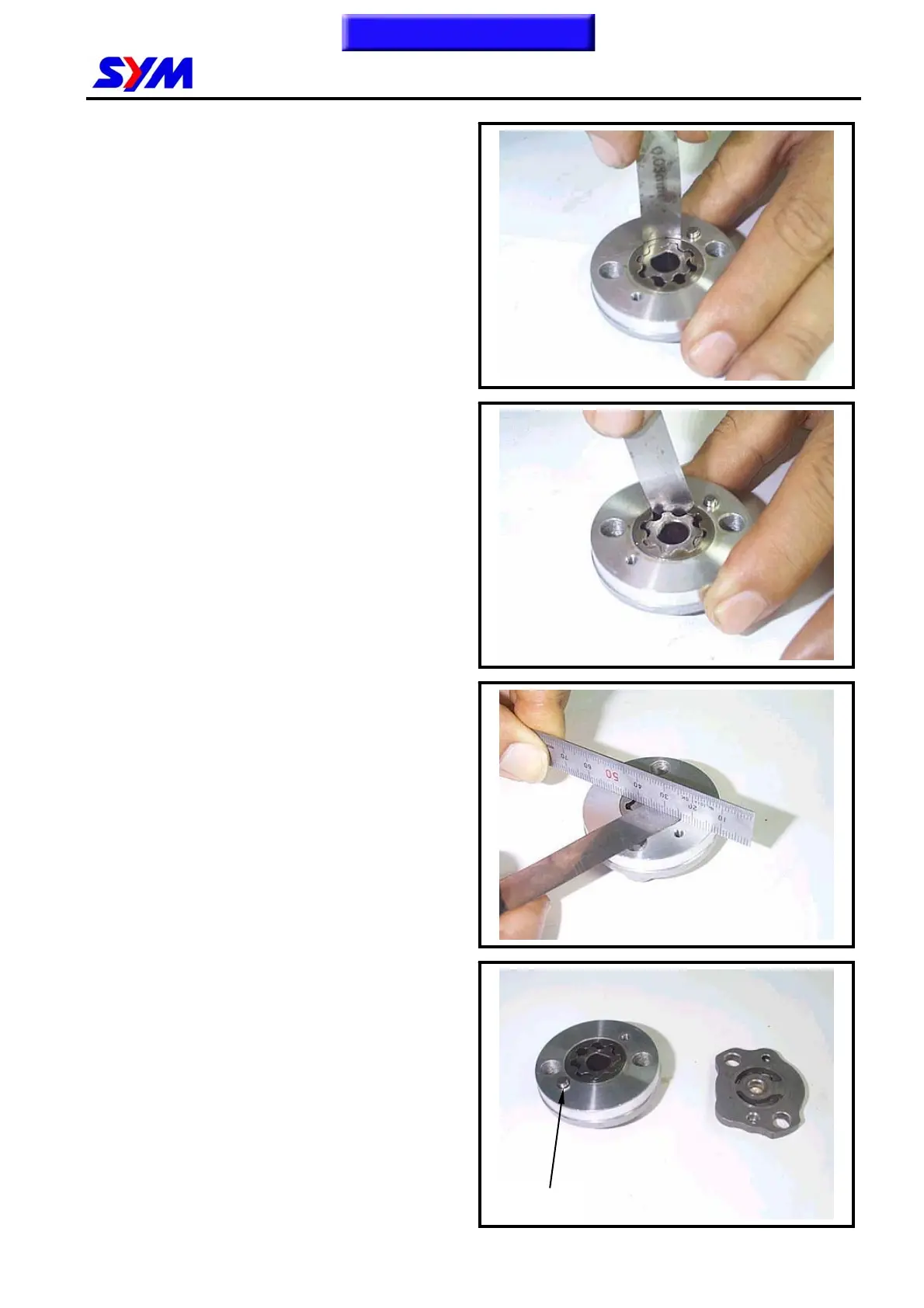

Oil Pump Inspection
Check the clearance between oil pump body
and outer rotor.
Limit: 0.25 mm
Check clearance between inner and outer
rotors.
Limit: 0.20 mm
Check clearance between rotor side face and
pump body
Limit: 0.12 mm
Oil Pump Reassembly
Install inner and outer rotors into the pump body
Align the indent on driving shaft with that of inner
rotor. Install the driving shaft
Install fixing pin
PIN
