10. Final Drive Mechanism
10-6

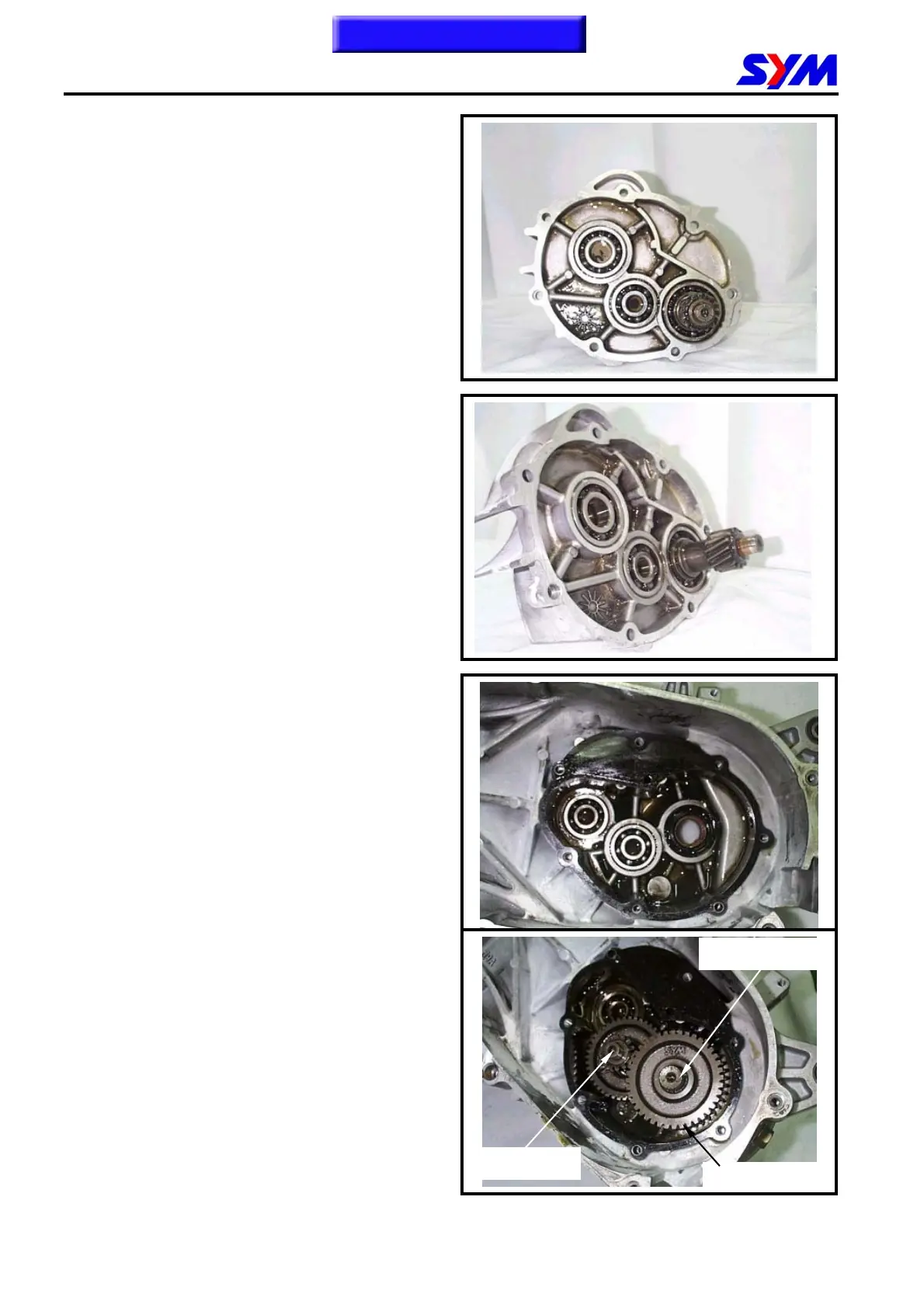

Install a new final shaft bearing onto gear box
cover.
Tool:
Bearing (6203/6004UZ) driver
Press the bearing in with hydraulic presser.
Install the driving shaft onto gear box cover and
then place it to proper position.
Apply with grease onto new oil seal lip, and then
install the oil seal.
Tool:
Oil seal (20*32*6) driver
Final Drive Mechanism Reassembly
Apply with grease onto the oil seal lip of final
driving shaft.
Install countershaft, final shaft and final driving
gear.
Countershaft
Final driving gear
Final shaft
