9. V-Belt Drive System
9-5

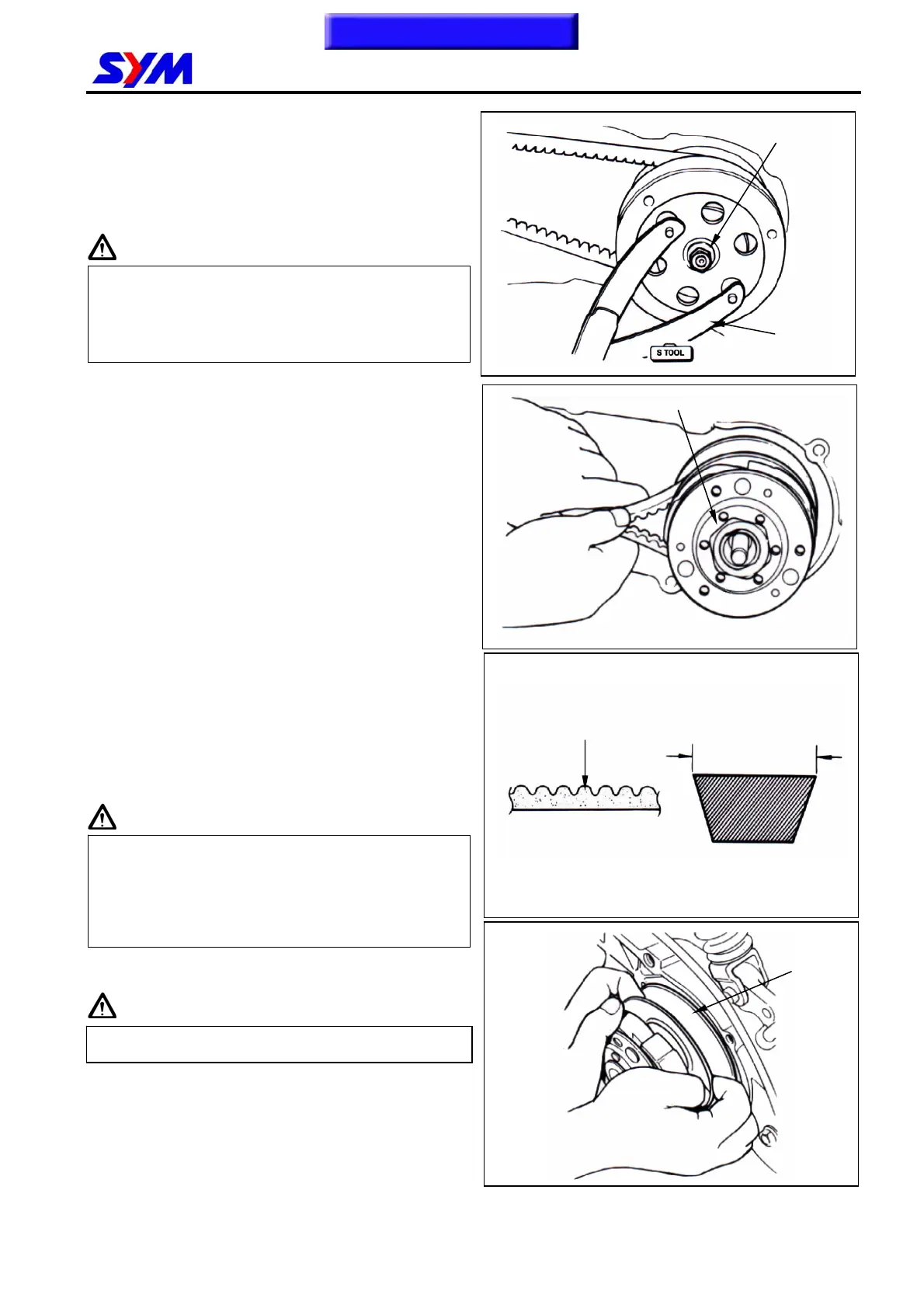

Drive Belt
Removal
Remove left crankcase cover
Hold clutch outer with universal holder, and
remove nut and clutch outer.
Caution
Push the driving belt into belt groove as diagram
shown so that the belt can be loosened, and then
remove the driven pulley.
Remove driven pulley. Do not remove driving
belt.
Remove the driving belt from the groove of driven
pulley.
Inspection
Check the driving belt for crack or wear. Replace
it if necessary.
Measure the width of driving belt as diagram
shown.
Service Limit: 17.5 mm
Replace the belt if exceeds the service limit.
Caution
Installation
Caution
Install driving belt onto driven pulley.
Install the driven pulley that has installed the belt
onto drive shaft.
z Using special service tools for tightening or
loosening the nut.
z Fixed rear wheel or rear brake will damage
reduction gear system.
Pull out driven pulley to avoid it closing.
z Using the genuine parts for replacement.
z The surfaces of driving belt or pulley must
be free of grease.
z Clean up all grease or dirt before
installation.
Nut
Universal
holder
驅動皮帶
Driven pulley/driving belt
Width
Belt tooth
Driven
pulley
