18. Electrical System
18-20

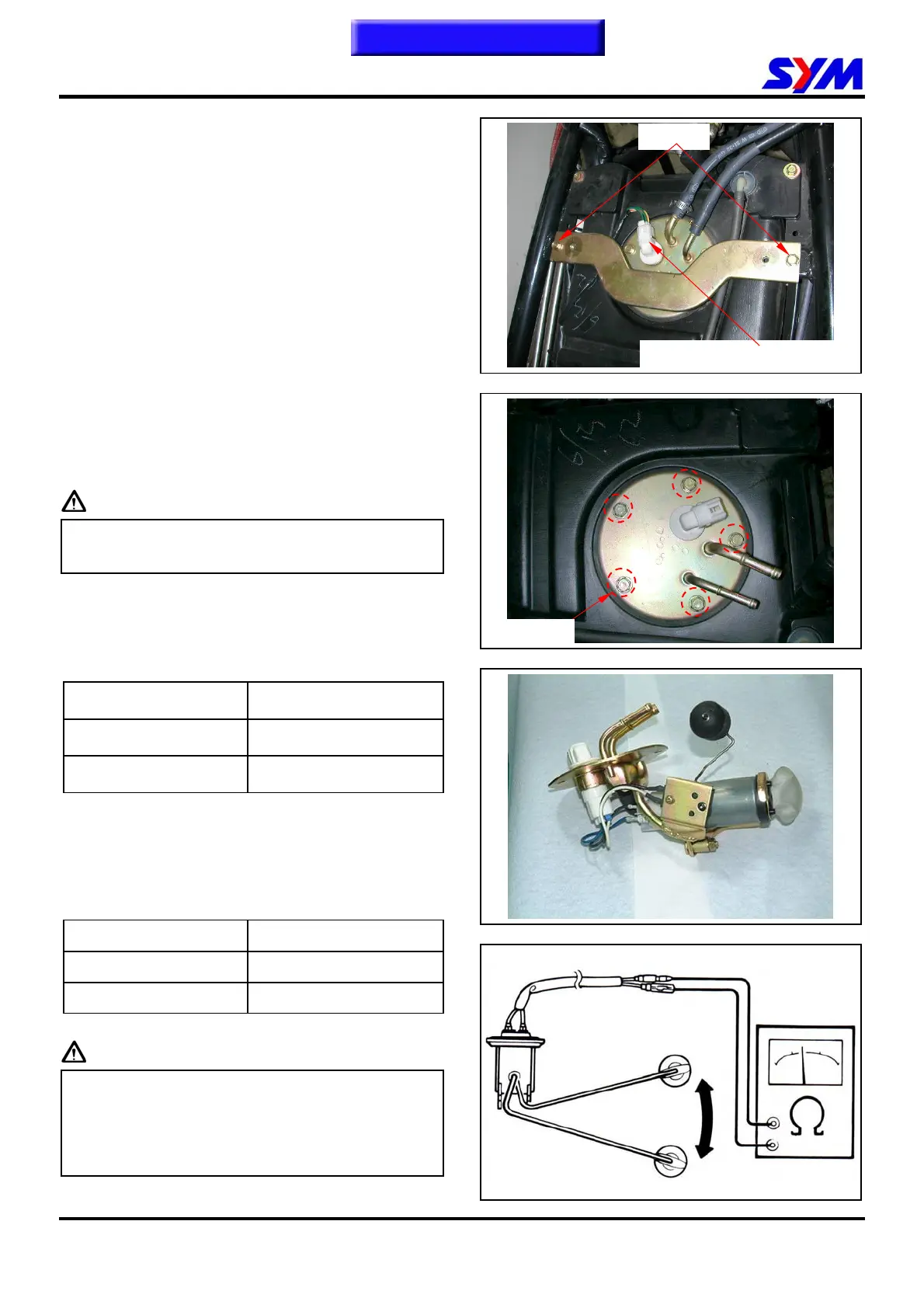

Fuel Unit
Open the seat.
Remove the luggage box (bolt x 6, screw x 1).
Remove the rear carrier (bolt x 3).
Remove the rear carrier seat (bolt x 2).
Remove the rear center cover (screw x 4).
Remove the left and right rear foot rest (bolt
x1).
Remove the left and right side cover (screw x
4).
Remove the central cover (screw x 6).
Remove the left and right body cover, the
center cover (screw x 4, bolt x 4).
Remove the foot rest (bolt x 4, screw x 4).
Disconnect the terminals of the fuel unit.
Remove the fuel unit (screw x 4).
Caution
y Great care shall be taken not to damage
or bend the float arm of the fuel unit.
Float location Resistance
Upper
97.5~107.5 Ω
Lower
4~10 Ω
Turn on the main switch.
Move the fuel unit float up and down to check
if the fuel gauge works properly.
Float location Fuel gauge
Upper Full
Lower Empty
Caution
y While conducting the test, turn on the
direction indication lamp to make sure that
the battery is in serviceable condition.
y
Fuel pump / fuel unit coupler
2 bolts
Full
Empty
5 bolts
