5. Fuel Injection System
5-20

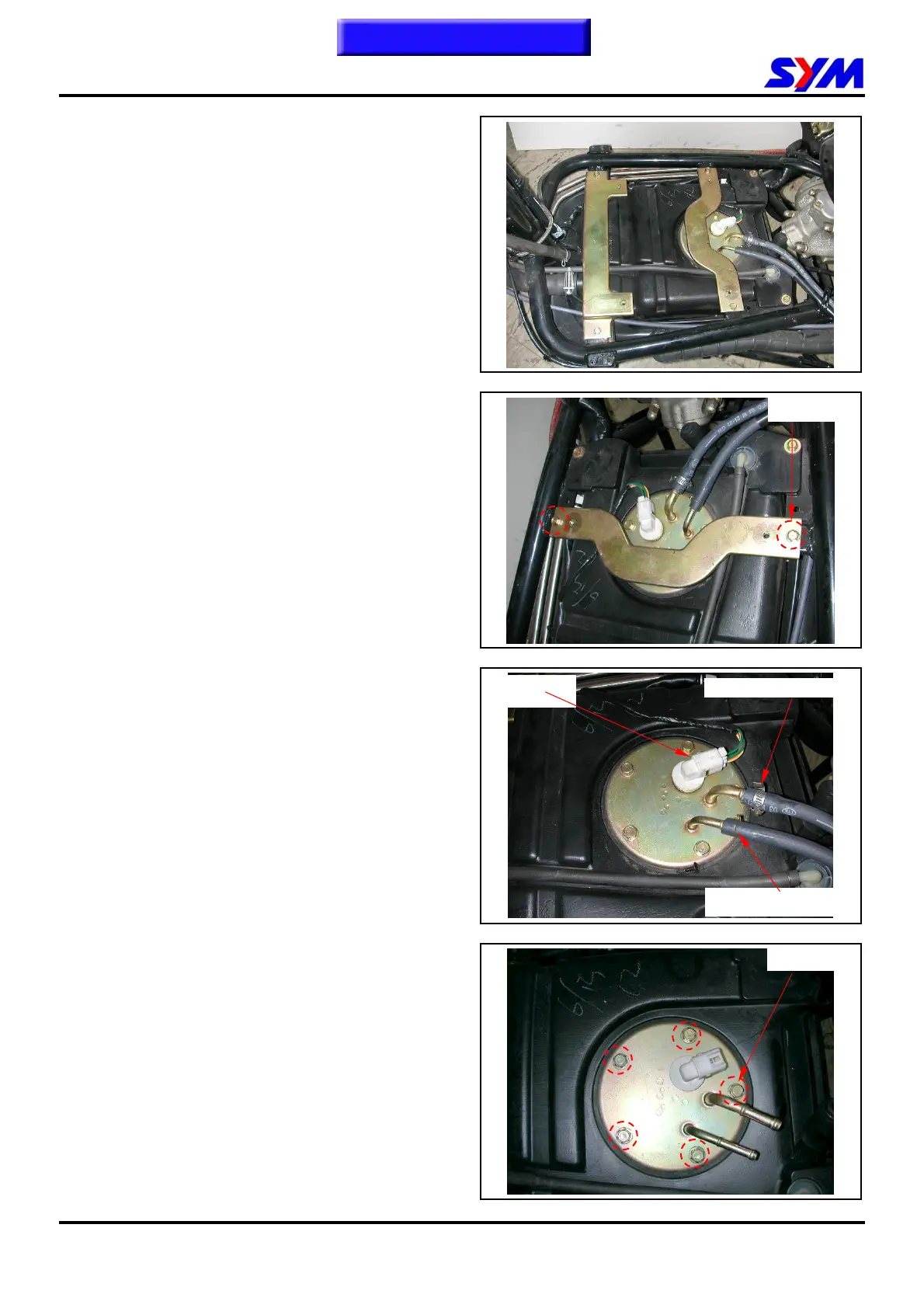

Fuel Pump / Fuel Unit
Removal
Remove the front cover and right/ left side
covers.
Remove the luggage box.
Remove the right/ left body covers.
Remove the central cover and footrest.
Remove the front inner cover.
Remove the fuel tank fixing bracket (2 lock
bolts).
Disconnect the fuel pump and fuel unit
couplers.
Remove the fuel pipes.
Remove the fuel pump lock bolts.
2 bolts
Fuel out
ut
i
e
5 bolts
Coupler
Fuel backflow pipe
