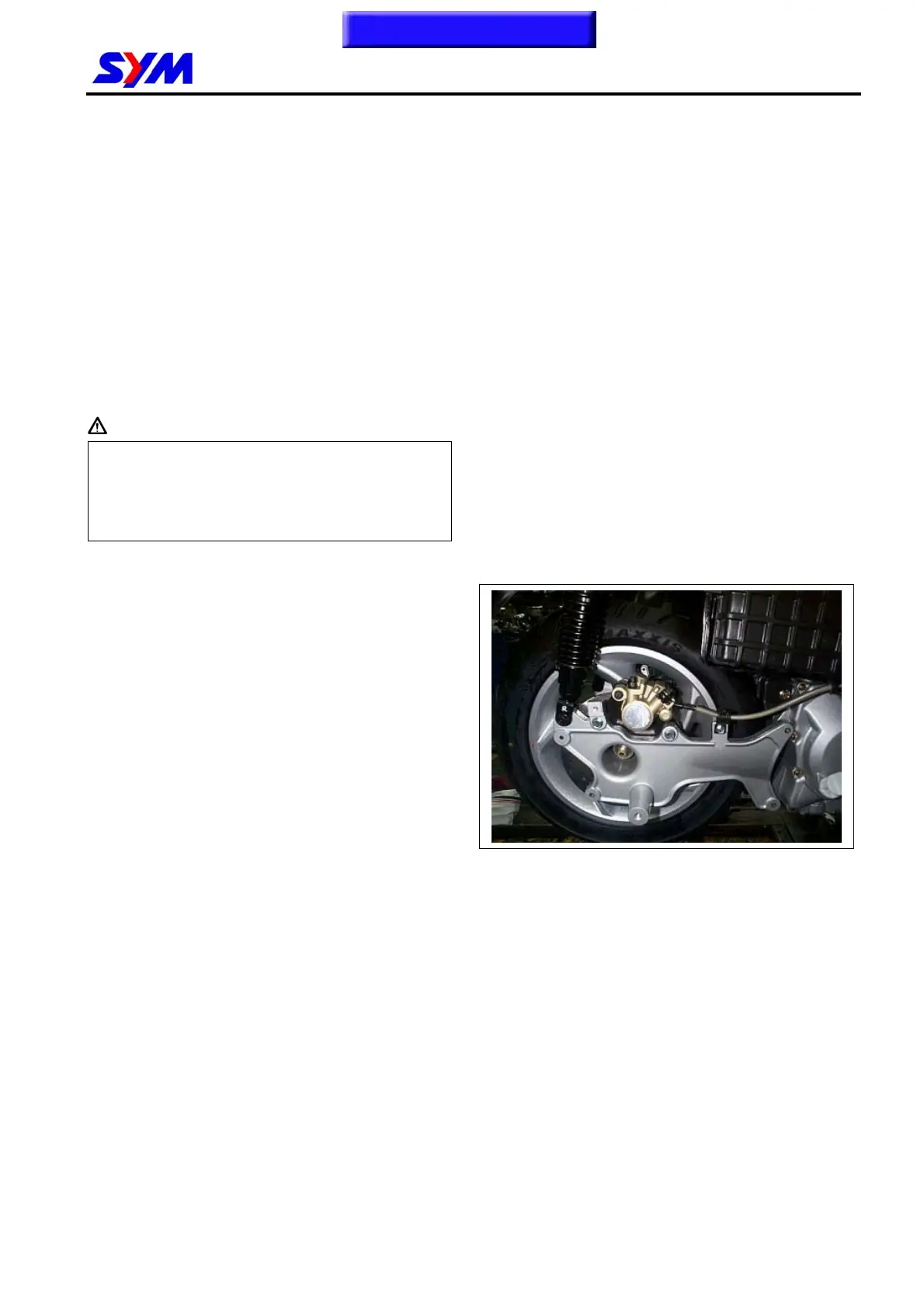

17. Muffler / Rear Wheel / Rear Cushion
17-5
Align the rear shock absorber with the rocker
arms hole; tighten the cushion with bolts.
Install the brake calliper and tighten the lock
bolts.
Install the muffler and tighten the lock bolts.
Install the guards and cover in reverse order of
removal.
Torque Value
Cushion bolt: 2.4 ~ 3.0 kgf-m
Nuts of rear wheel shaft: 10.0 ~ 12.0 kgf-m
Bolts for the brake calliper: 2.9 ~ 3.5 kgf-m
Bolts for the muffler: 3.2 ~ 3.8 kgf-m
Nuts for the muffler: 2.7 ~ 3.3 kgf-m
Caution
Rear Cushion
Removal
Remove the rear cover (screw x 4).
Remove the right side cover (screw x 3).
Remove the luggage box (bolt x 6, screw x 1).
Remove the body cover (bolt x 2, screw x 2).
Loosen the lock bolts of the air filter (bolt x 2).
Remove the muffler (bolt x 3, nut x 2).
Remove the rear fender assembly (bolt x 2,
screw x 2).
Remove the left / right rear cushions.
Removal
Remove a lower bolt from the shock absorber
(bolt x 1).
Attention must be paid to their direction
when rocker arm collars are installed. The
small ends of inner and outer collars must
face to rocker arm bearing.
