7. Cylinder Head / Valve
7-9

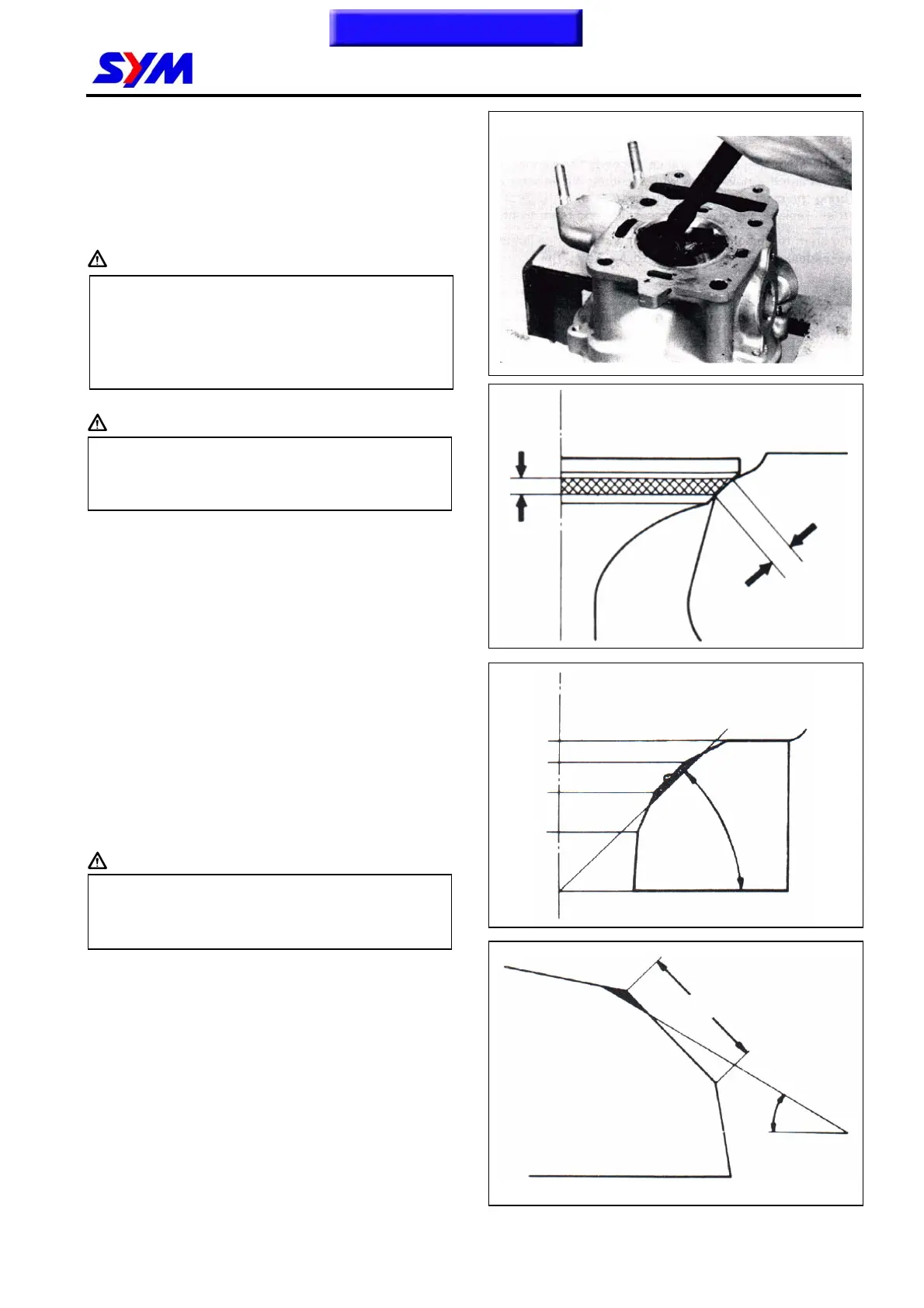

Valve Seat Inspection
Clean up all carbon deposits onto intake and
exhaust valves.
Apply with emery slightly onto valve contact face.
Grind valve seat with a rubber hose or other
manual grinding tool.
Caution
Remove the valve and check its contact face.
Caution
Valve seat inspection
If the valve seat is too width, narrow or rough,
correct it.
Valve seat width
Service limit: 1.6mm
Check the contact condition of valve seat.
Valve seat grinding
The worn valve seat has to be ground with valve
seat chamfer cutter.
Refer to operation manual of the valve seat
chamfer cutter.
Use 45° valve seat chamfer cutter to cut any rough
or uneven surface from valve seat.
Caution
Use 32° cutter to cut a quarter upper part out.
z Do not let emery enter into between valve
stem and valve guide.
z Clean up the emery after corrected, and
apply with engine oil onto contact faces of
valve and valve seat.
Valve seat
width
45°
Roughness
32°
Old valve seat width
z Replace the valve with new one if valve
seal is roughness, wear out, or
incomplete contacted with valve seat.
z After valve guide had been replaced, it
has to be ground with 45° valve seal
chamfer cutter to correct its seat face.
To this chapter contents
To Next Page
