16. Steering / Front Wheel / Front Cushion
16-6

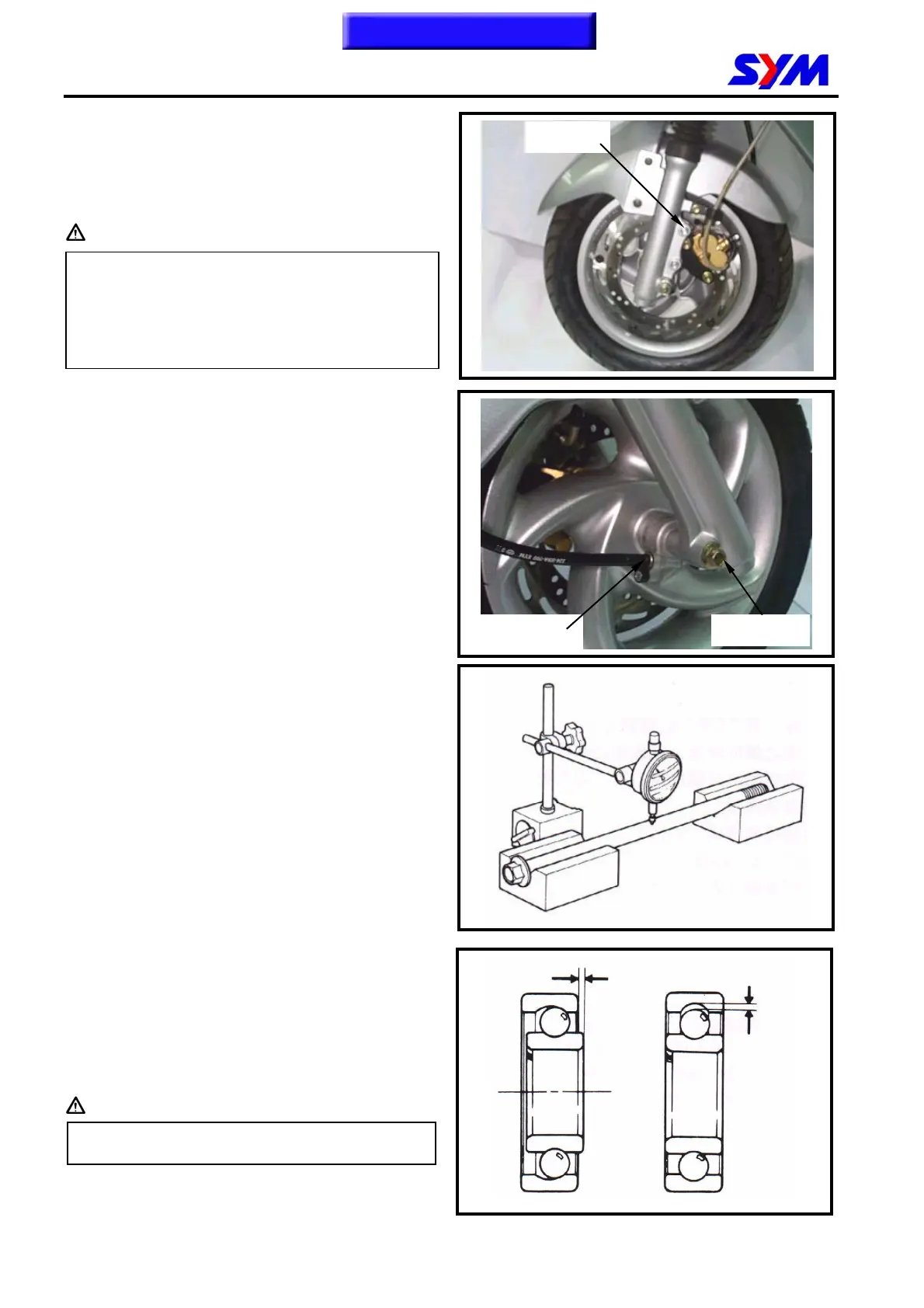

Front Wheel
Removal
Loosen two screws from the front brake calliper.
Remove the front brake calliper.
Caution
Remove the speedometer cable.
Turn loose the nuts and pull out the wheel axle.
Remove the front wheel.
Inspection
Wheel axle
Place the wheel axle on a V block, measure its
runout.
Service limit: 0.2 mm
Wheel axle
Use finger to move the inner ring of each bearing,
it shall move smoothly and quietly. Check the
outer ring is securely attached on the wheel hub.
If the motion of the inner ring of the bearing is not
smooth, or noisy and loose when being moved,
remove and discard it.
Caution
The bearing shall be replaced in pair.
Bolt×2
Clearance
Clearance
Care shall be taken not to push the brake
lever to avoid the brake pad being squeezed
out. In case that the brake pad is accidentally
squeezed out, use a screwdriver to force it
back to the place.
Speedometer
Wheel axle
