9. V-Belt Drive System
9-3

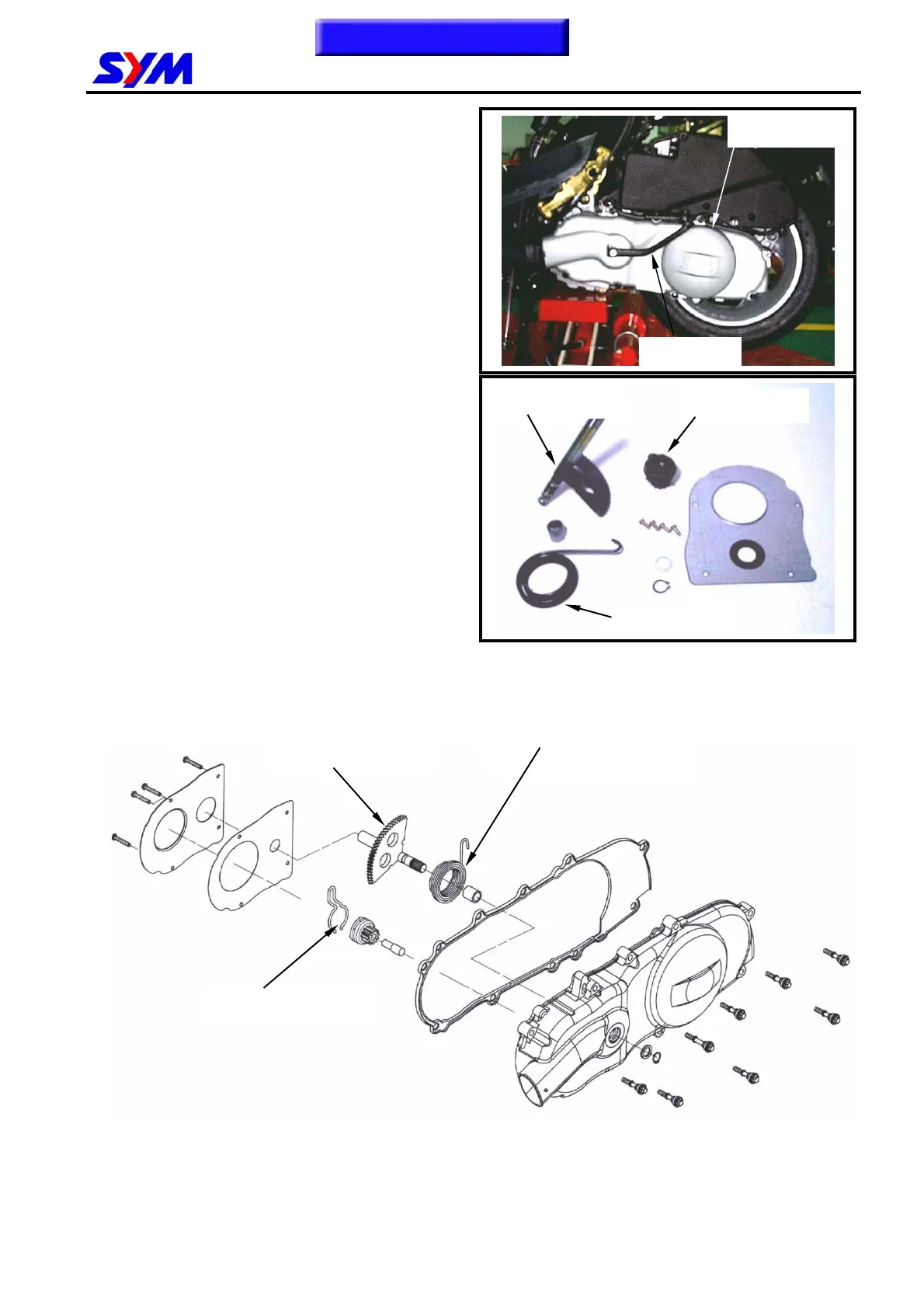

Left Crankcase Cover
Left crankcase cover removal
Remove body cover.
Remove air cleaner (2 bolts).
Remove kick starter (1 bolt).
Remove L crankcase cover (9 bolts).
Disassembly of Kick Starter
Remove snap ring and thrust washer from L
crankcase cover.
Install kick starter arm, rotate the arm slightly and
then remove driven gear and washer. Remove
the kick starter arm, starter spindle, and return
spring as well as socket.
Inspection of Kick Starter
Check if starter spindle, driven gear, socket and bearing hole for wear or damage.
Left crankcase
cover
Kick starter
Starter shaft
Return spring
Friction spring
Starter spindle
Return spring
Driven gear
