Tenda O3 User Manual

117

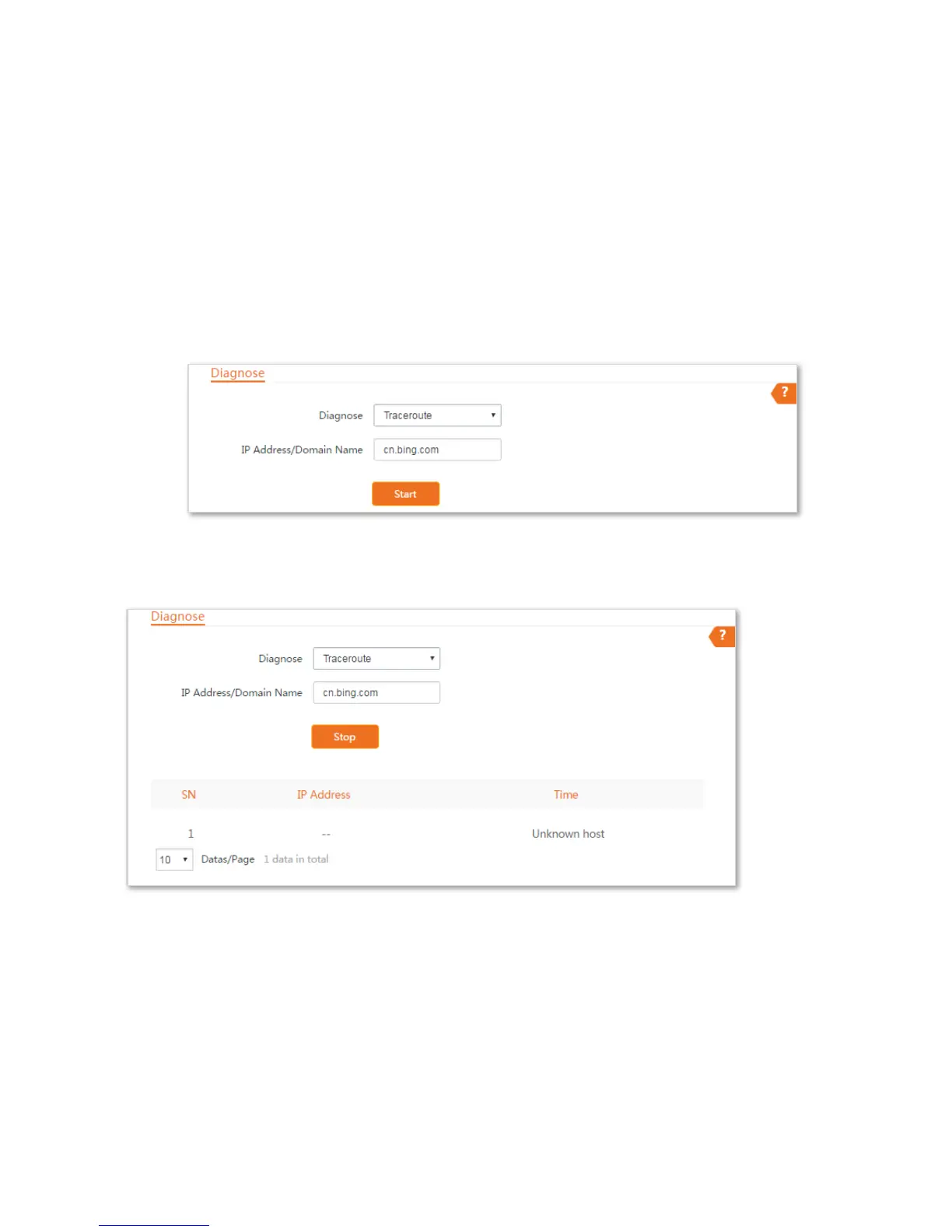

8.2.4 Traceroute
You can use the Traceroute tool to detect the routes that the packets pass by from the device to destination host.
Assume that you want to detect the routes that the packets pass by from the CPE to cn.bing.com.
Configuration Procedure
Step 1 Choose Advanced > Diagnose.
Step 2 Select Traceroute in the Diagnose list.
Step 3 Enter an IP address or a domain name, which is cn.bing.com in this example.
Step 4 Click Start.
----End
The diagnosis result will be displayed in a few seconds in the list below Start button. See the following figure:
8.2.5 Speed Test
It is used to test the throughput between two Tenda CPE in the same network. The test requires one of the two
devices to be set as a server and the other as a client. The client launches the test request to the server and the
server responds to it. The test result displays on the Speed Test page of the client.
Choose Advanced > Diagnose to enter the page.
Set Diagnose to Speed Test.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
