4.3 Universal Repeater Mode (Only for O3)
4.3.1 Overview
In Universal Repeater mode, this CPE expands your WiFi network for broader network coverage. Advantage of
Universal Repeater compared with Repeater mode: This mode does not require that the upstream AP supports
WDS function.

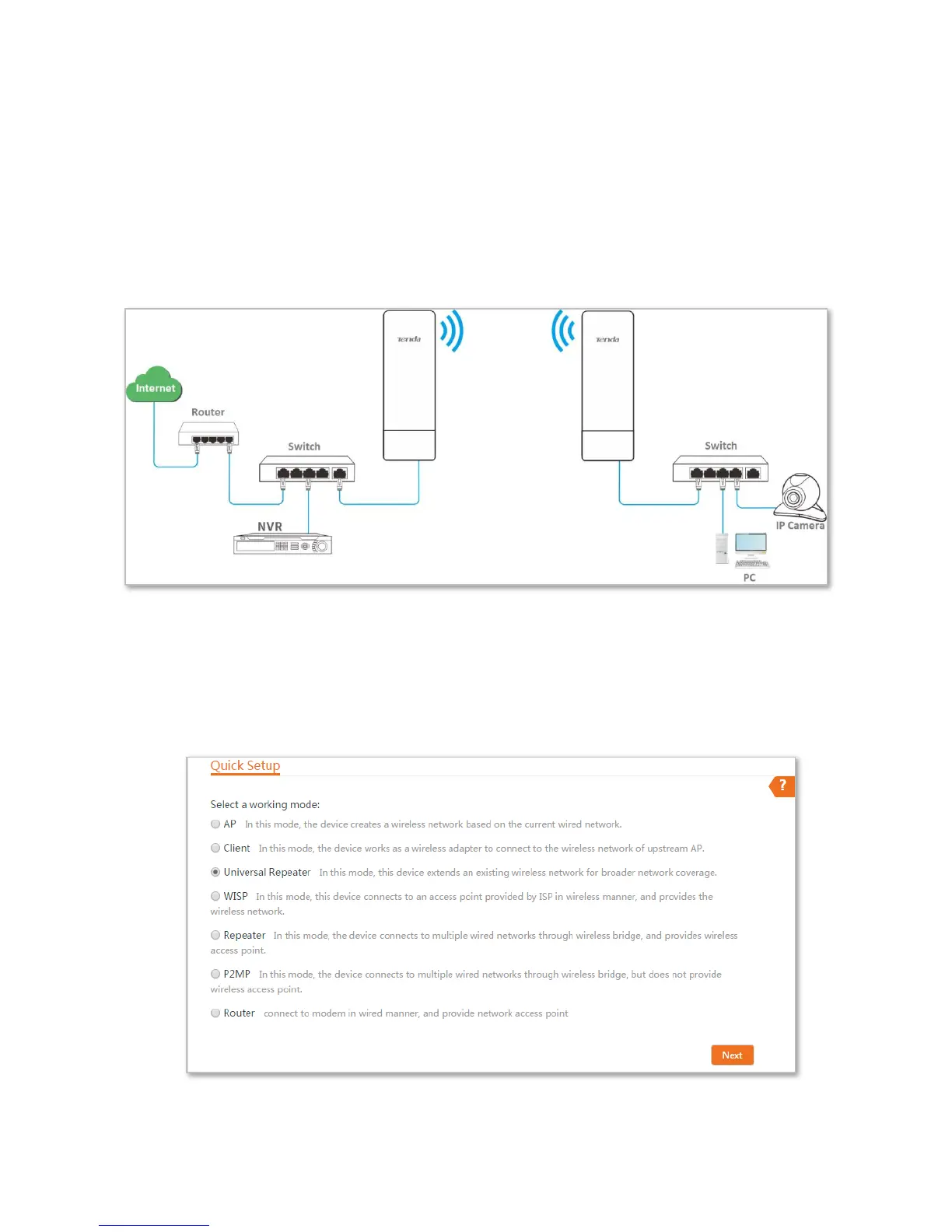

See the following network topology:
4.3.2 Setting up the Universal Repeater Mode
Configuration Procedure:
Step 1 Log in to the web UI of the CPE2 and choose Quick Setup to enter the configuration page.
Step 2 Select Universal Repeater, and click Next.
CPE1: AP mode
SSID: WiFi_123456
Key: 12345678
CPE2:
Universal Repeater mode

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
