Tenda O3 User Manual

70
Automatically Obtaining an IP Address
This mode enables the CPE to automatically obtain an IP address, a subnet mask, a gateway IP address, DNS
server IP addresses from a DHCP server on your LAN. If a large number of CPEs are deployed, you can adopt this
mode to prevent IP address conflicts and effectively reduce your workload.
Configuration Procedure:

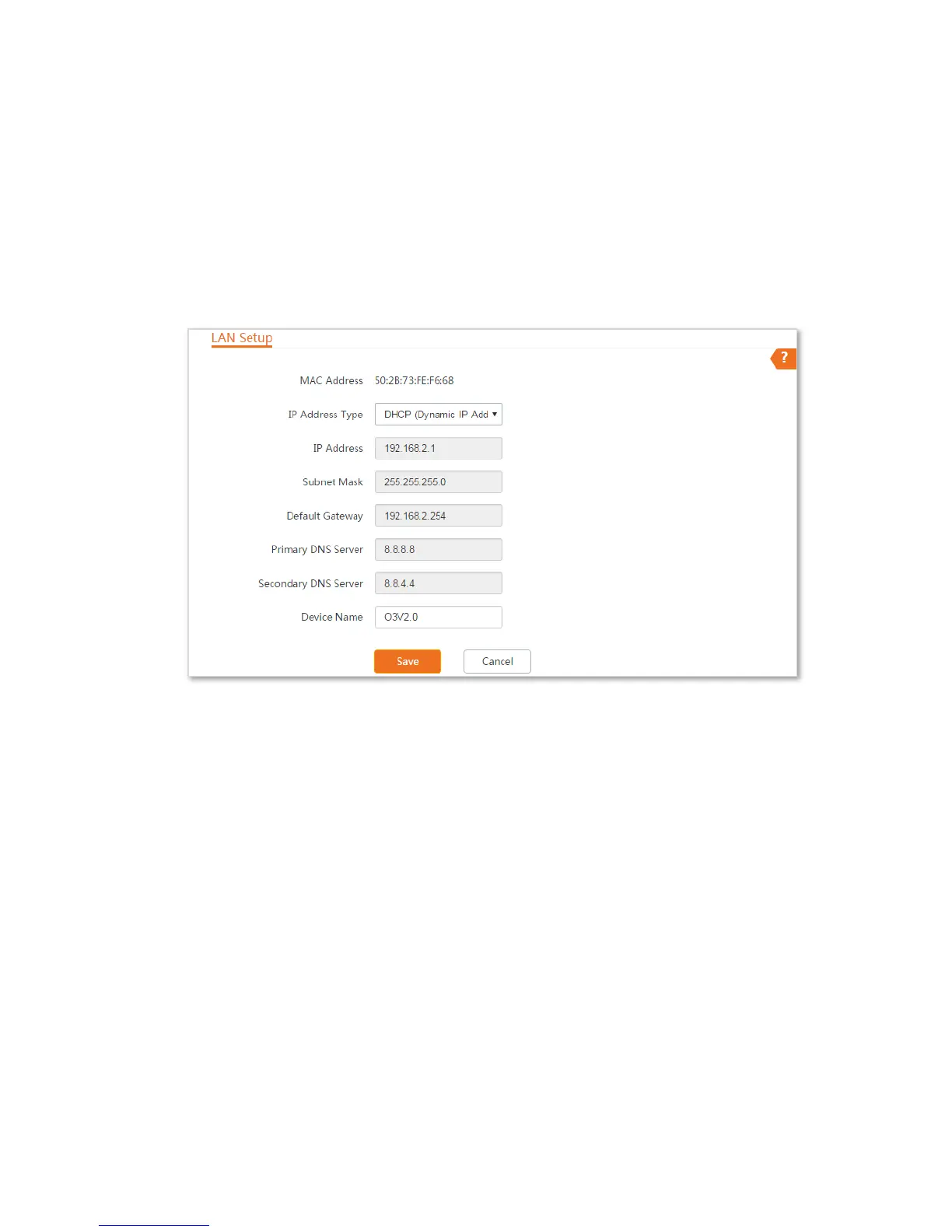

Step 1 Choose Network > LAN Setup to enter the configuration page.
Step 2 Set IP Address Type to DHCP (Dynamic IP Address).
Step 3 Click Save.
----End
After the configuration, if you want to re-log in to the web UI of the CPE, check the client list of the DHCP server
for the IP address assigned to the CPE, ensure that the IP address of the management computer and the IP
address of the CPE belong to the same network segment, and access the IP address of the CPE.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
