Tenda O3 User Manual

140
Community name is used to define the relationship between an SNMP agent and an SNMP manager. If the
community name contained in an SNMP packet is rejected by a device, the packet is discarded. A community
name functions as a password to control SNMP agent access attempts of SNMP managers.
SNMP V2C is compatible with SNMP V1 and provides more functions than SNMP V1. Compared with SNMP V1,
SNMP V2C supports more operations (GetBulk and InformRequest) and data types (such as Counter64), and
provides more error codes for better distinguishing errors.

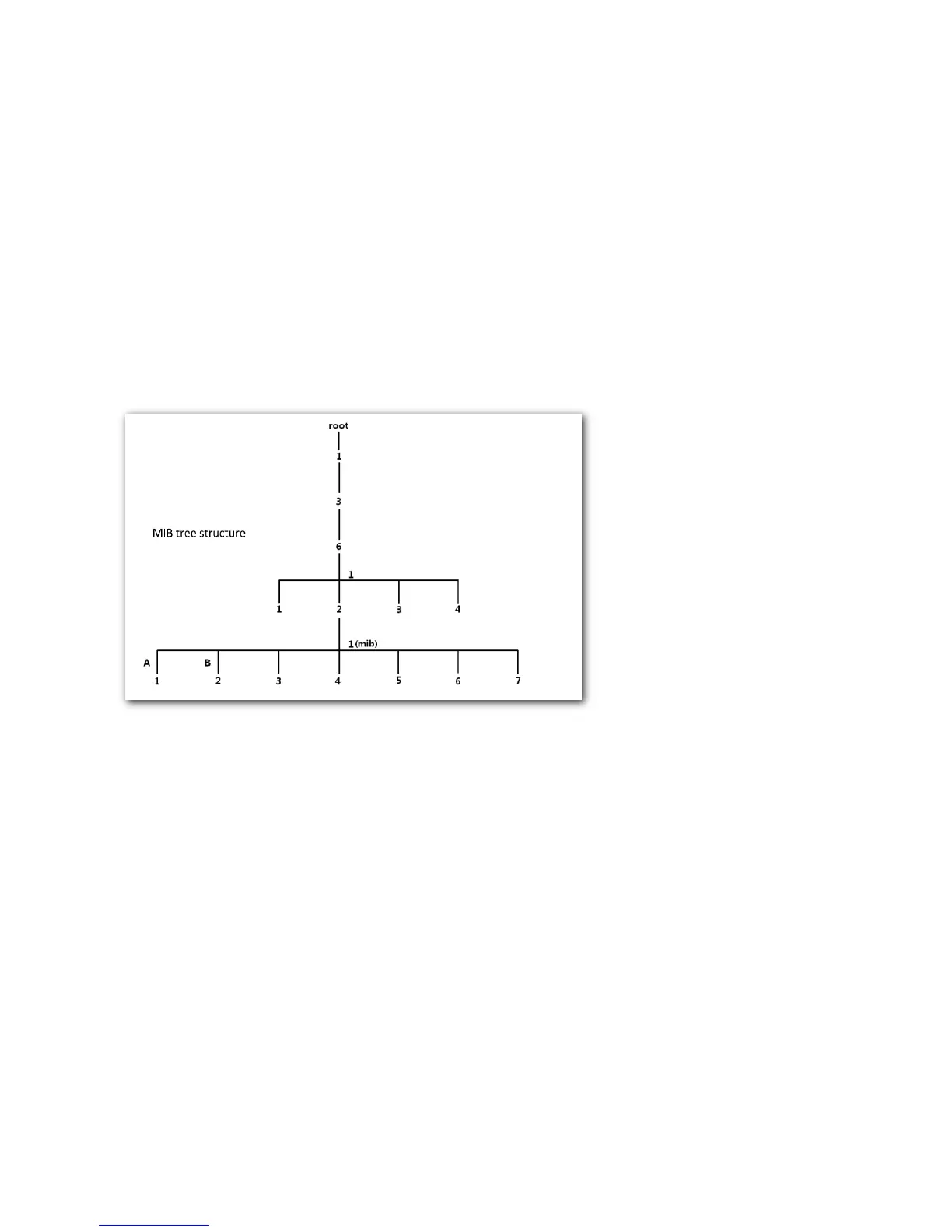

MIB Introduction
An MIB adopts a tree structure. The nodes of the tree indicate managed objects. A path consisting of digits and
starting from the root can be used to uniquely identify a node. This path is calling an object identifier (OID).The
following figure shows the structure of an MIB. In the figure, the OID of A is 1.3.6.1.2.1.1, whereas the OID of B is
1.3.6.1.2.1.2.
Configuring the SNMP Function
Configuration Procedure
Step 1 Choose Advanced > Network Service.
Step 2 Enable the SNMP Agent function.
Step 3 Set the related SNMP parameters.
Step 4 Click Save on the bottom of this page.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
