Tenda O3 User Manual

7
2 Application Scenario
2.1 ISP Hotspot Connection-WISP Mode
An apartment needs to bridge an ISP hotspot for internet access.
2.1.1 Solution
Tenda CPE can address this requirement.
O3 is used as an example to illustrate the installation procedure. The installation procedure of O1 is similar.
2.1.2 Setting up the CPE

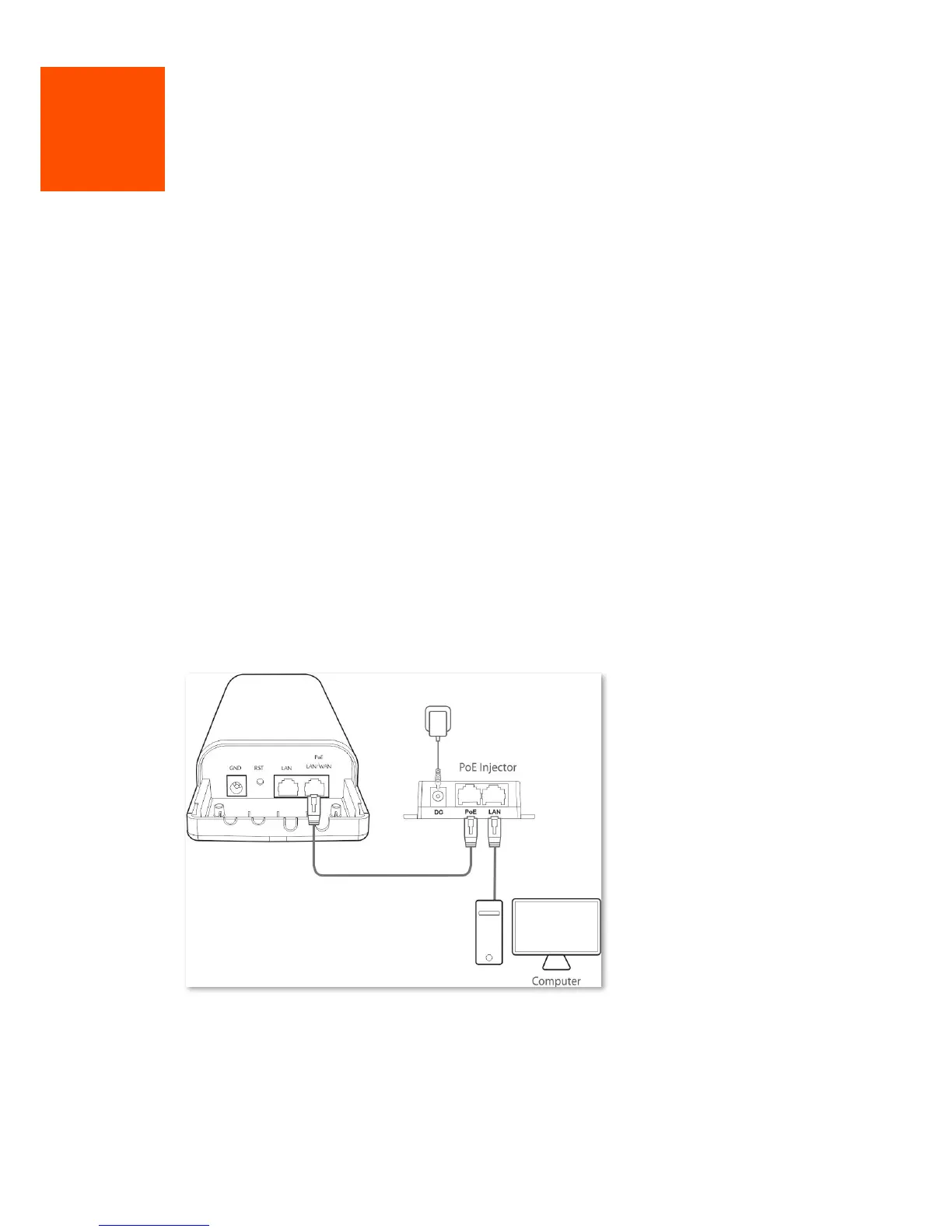

Step 1 Connect the computer to the CPE.
1. Uncover the housing of the CPE.
2. Use an Ethernet cable to connect the PoE/LAN/WAN port of the device to the PoE port of the PoE
injector.
3. Use the included power adapter to connect the PoE injector to a power socket. The LAN/WAN LED
indicator of the CEP lights up.
4. Use an Ethernet cable to connect your computer to the LAN port of the PoE injector.
Step 2 Set the CPE to WISP mode.
1. Start a web browser on your computer, and visit 192.168.2.1. Enter your user name and password
(default: admin/admin), and click Login.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
