Tenda O3 User Manual

71
6.2 MAC Clone
This function is available only when the CPE works in WISP or Router mode.
6.2.1 Overview
If the device cannot access the internet after configuring internet settings, your ISP may have bound your
account with the MAC address of your computer that was used to verify internet connectivity after you
subscribed to the internet service. Therefore, only the computer can access the internet with the account.
In this case, you can try either of the following methods to address the issue.
Method 1
Step 1 Connect the computer to the device.
Step 2 Log in to the device’s web UI.

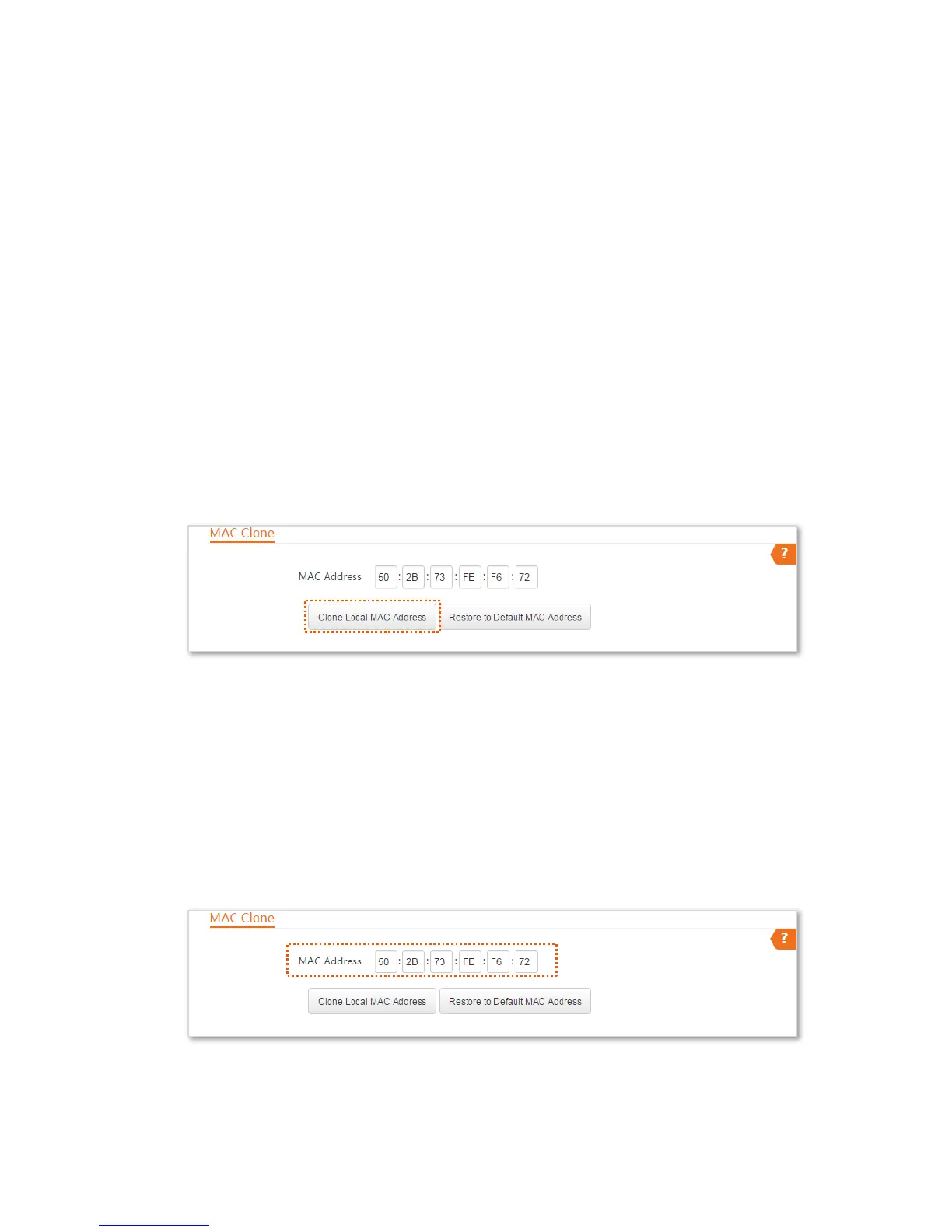

Step 3 Choose Network > MAC Clone to enter the configuration page.
Step 4 Click Clone Local MAC Address.
Step 5 Click Save.
----End
Method 2
Connect another device (such as a smart phone or tablet) to the device
Step 1 Log in to the device’s web UI.
Step 2 Choose Network > MAC Clone.
Step 3 Enter the MAC address of the computer that can access the internet in the MAC Address boxes.
Step 4 Click Save.
----End

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
