Tenda O3 User Manual

128
8.5 MAC Filter (Only for O3)
This function is available only when the CPE works in WISP or Router mode.
8.5.1 Overview
The MAC Filter function enables you to allow or disallow the devices, such as computers, laptops, tablets, and
smart phones, to access the internet via the CPE based on their MAC addresses.

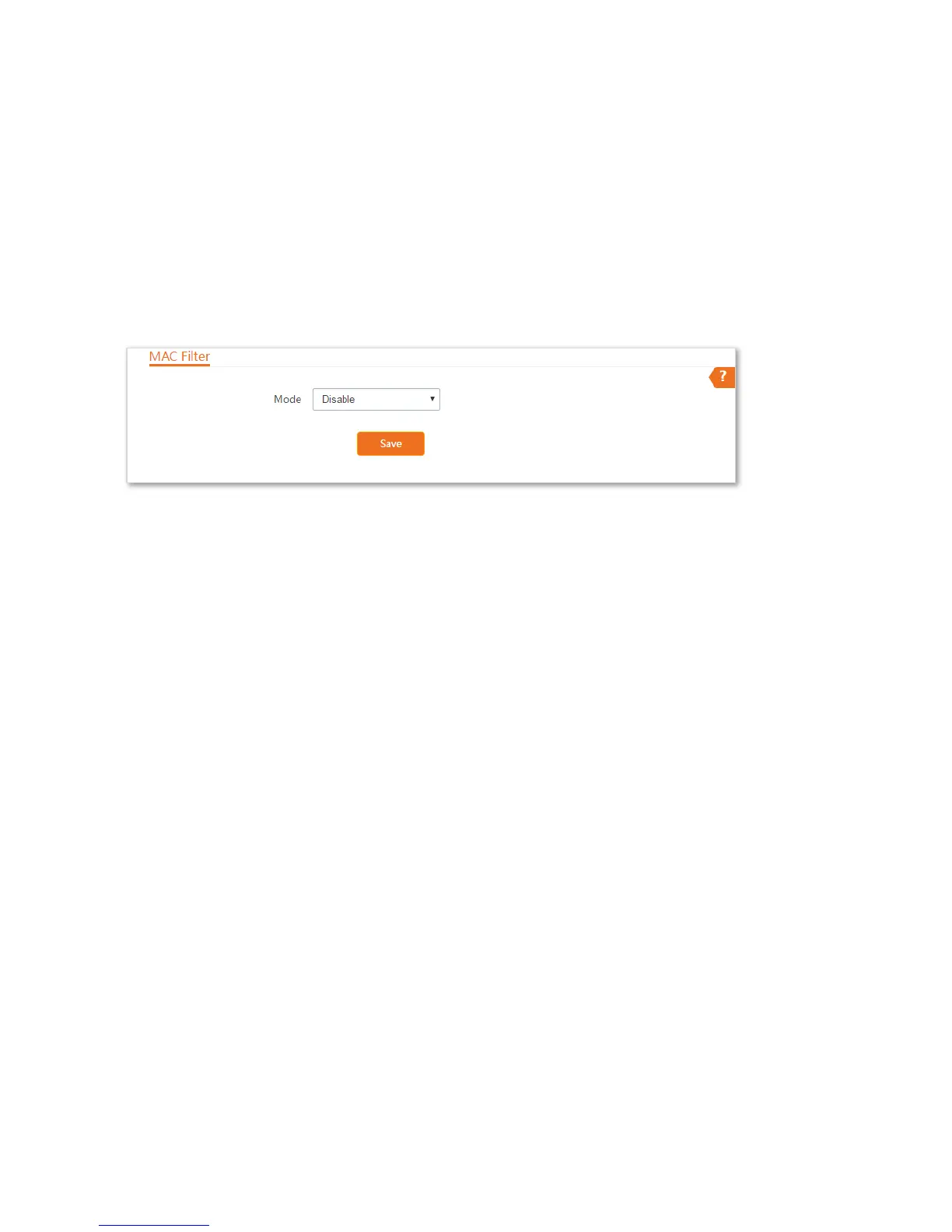

Choose Advanced > MAC Filter to enter the page.
The function is disabled by default.
8.5.2 Configuring MAC Filter
Configuration Procedure
Step 1 Choose Advanced > MAC Filter.
Step 2 Select a MAC filter mode, Disallow or Allow.
Step 3 Enter a remark for the rule, such as somebody’s device.
Step 4 Specify a period at which the rule takes effect.
Step 5 Tick the dates on which the rule takes effect.
Step 6 Click Add.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
