Tenda O3 User Manual

2
LED Indicator
Status
Description
WiFi
Solid on
The wireless function is enabled, but no data is being transmitted.
Blinking
Data is being transmitted in a wireless manner.
Off
The wireless function is disabled.
LED1, LED2, LED3
(Signal Strength LED)
Solid on
Bridged successfully, and the device works in AP mode.
LED1, LED2 and LED3 are solid on: Perfect Signal
LED1 and LED2 are sold on, and LED3 is off: Good signal
LED1 is solid on, and LED2 and LED3 are off: Weak signal. Please adjust the
direction or location of the two devices.
Blinking
Bridged successfully, and the device works in Client mode.
Off
The device does not bridge to another peer AP.

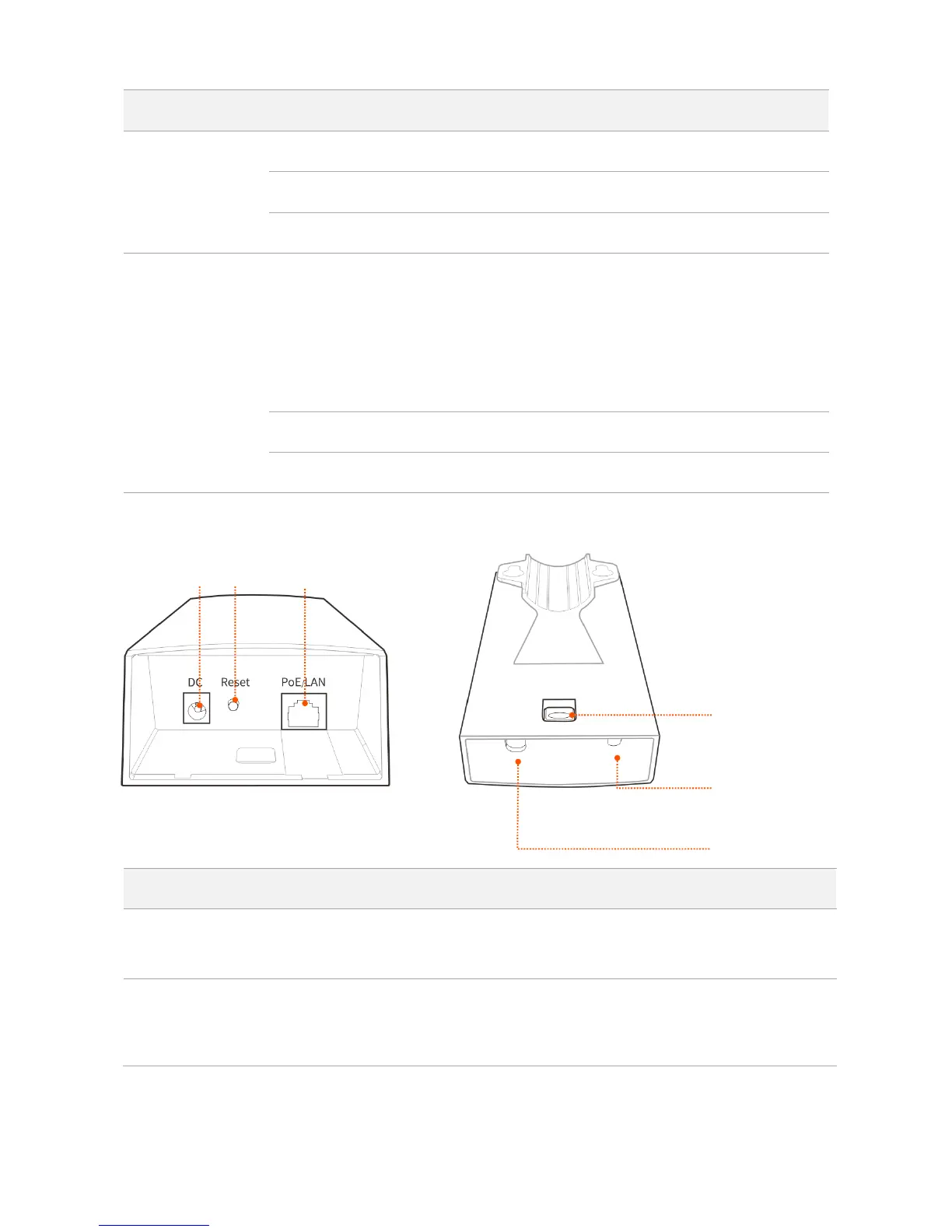

Button and Ports
O1 O1
ID
Port/Button
Description
①
DC
Power Jack
Connect the included power adapter to this jack to supply power to the device.
②
Reset
Reset Button
After the device is powered on for 1 minute, hold down this button for about 7 seconds.
When all the LED indicators on the device light up, the device is restored factory settings.
⑥
.
①
.
②
③
⑤
.
④

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
