Tenda O3 User Manual

121
8.3 Bandwidth Control (Only for O3)
This function is available only when the CPE works in WISP or Router mode.
8.3.1 Overview
If multiple devices access the internet through the CPE, bandwidth control is recommended, so that high-speed
file download by a device does not reduce the internet access speed of the other devices.

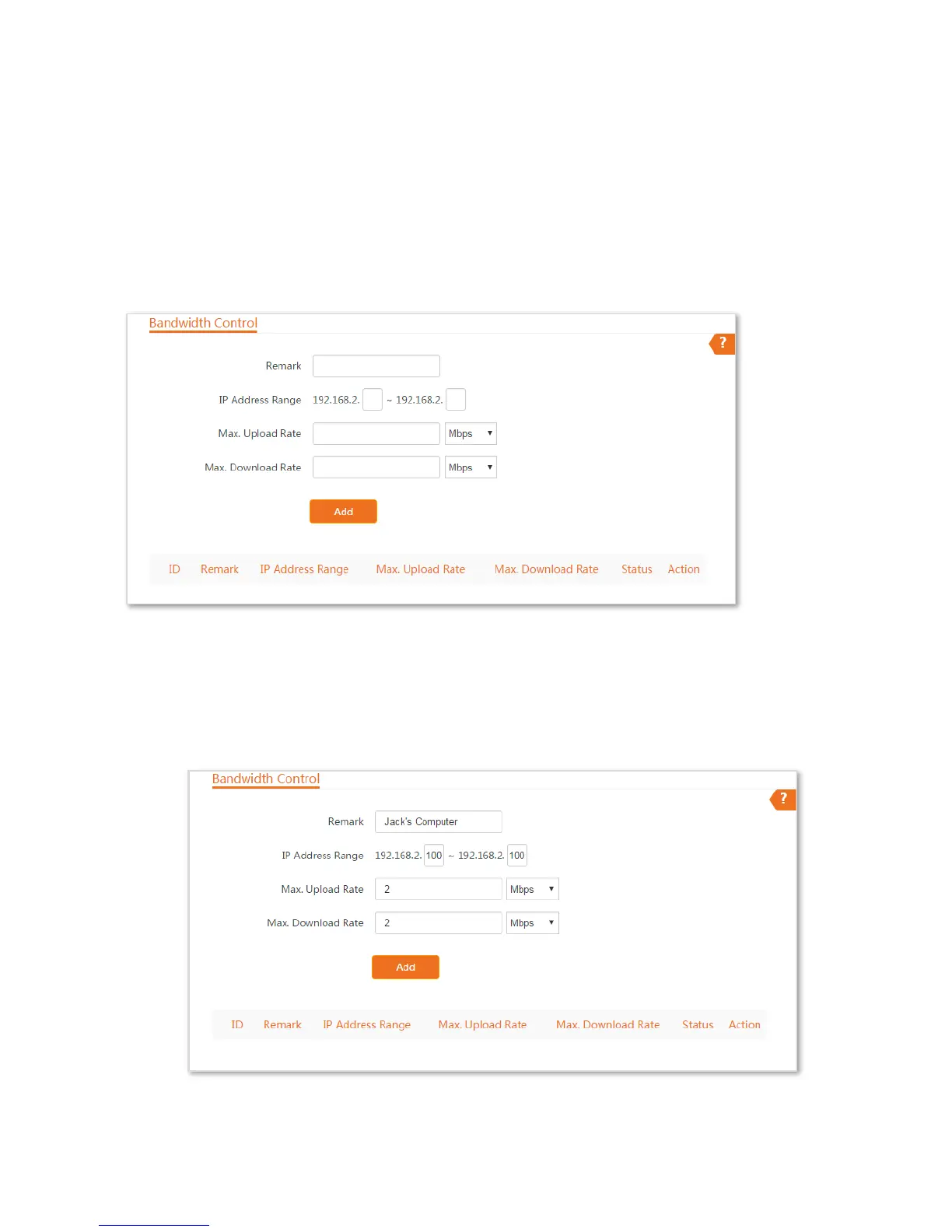

Choose Advanced > Bandwidth Control to enter the page.
Configuring Bandwidth Control
Step 1 Choose Advanced >Bandwidth Control.
Step 2 Set up the related parameters.
Step 3 Click Add.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
