Tenda O3 User Manual

39
4.5 Repeater Mode (Only for O3)
4.5.1 Overview
In Repeater mode, the CPE connects 2 or more (this device supports 4 at most) wired networks with a wireless
link, and can be connected with both wired and wireless clients. To use this function, the peer AP is required to
support WDS function. Repeater mode is used to achieve communication between multiple offices of an
enterprise in a city.
The CPE in Repeater mode can works with the CPE in Repeater or P2MP mode. It supports one to four bridging at
most.
4.5.2 Setting up the Repeater Mode
One to One Bridging
Assume that CPE1 and CPE2 both work in Repeater mode and the wireless parameters of CPE2 are as follows:
SSID: Tenda_123456
Security mode: WEP
Authentication type: Shared
Key1 to key4: 1234

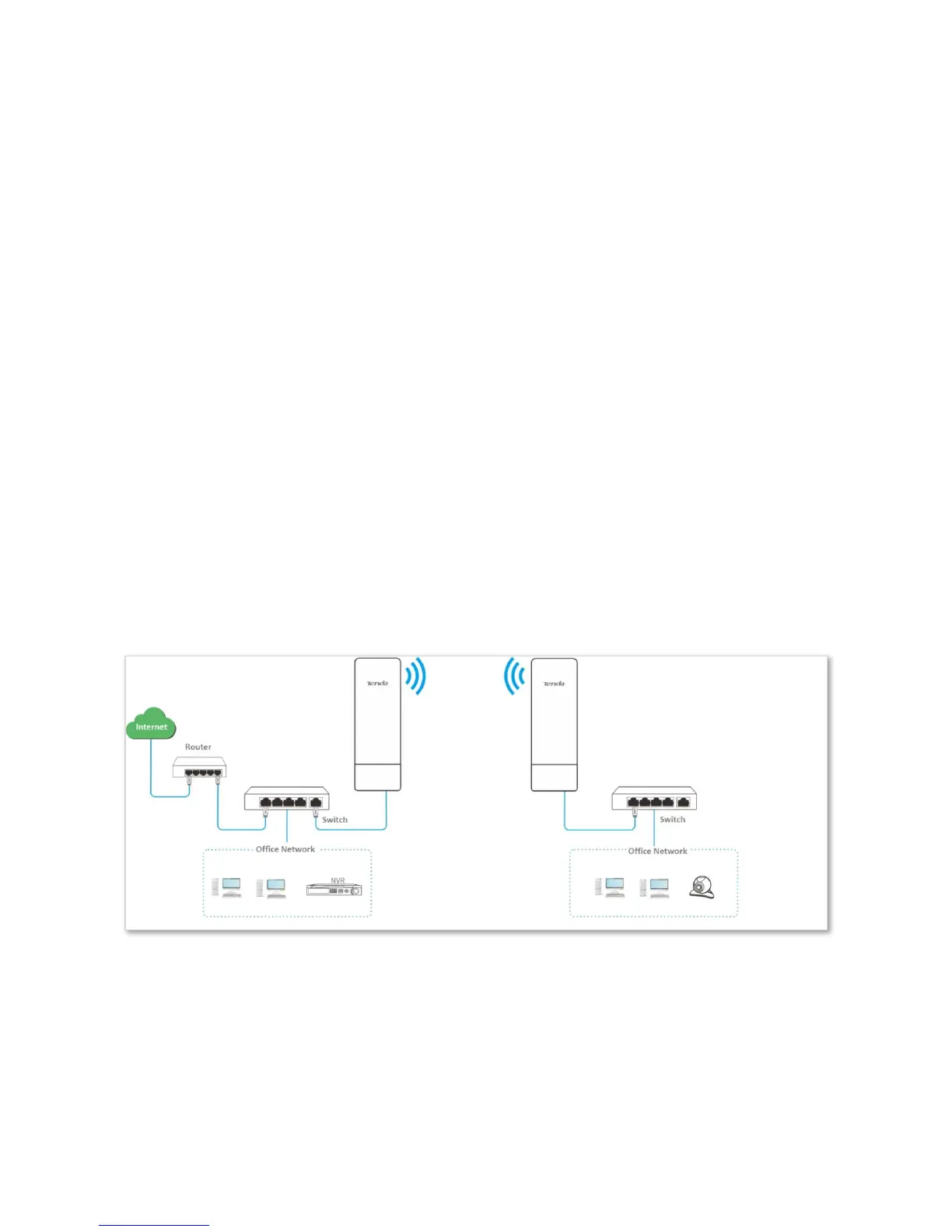

See the following network topology:
Configuration Procedure:
Step 1 Set CPE1 to the Repeater mode.
1. Log in to the web UI of CPE1 and choose Quick Setup to enter the configuration page.
2. Select the SSID of CPE2, which is Tenda_123456 in this example, and click Next.
CPE1: Repeater mode
CPE2: Repeater mode
SSID: Tenda_123456
Security Mode: WEP
Authentication Type: Shared
Key 1-4: 12345

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
