Parameters Description
Name
Description
Remark
It specifies the additional information of the bandwidth control rule.
IP Address Range
It specifies the IP addresses or range of devices that this rule applies to.
Max. Upload Rate
It specifies the maximum upload/download rate of the each device whose IP address is within the
IP Address Range.
Max. Download Rate
Status
It specifies the current status of the rule. You can enable or disable it as required.
Action
Click to delete the rule.

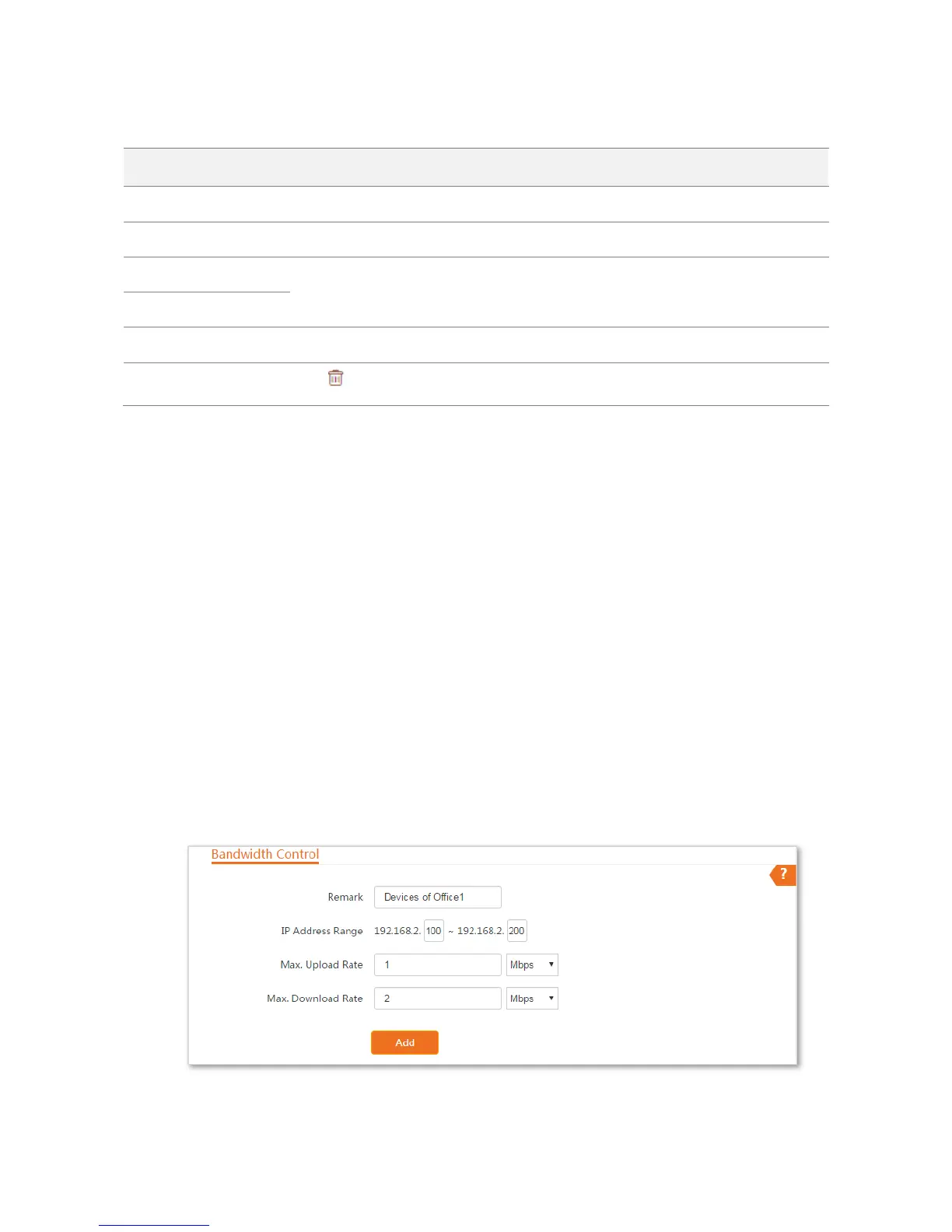

8.3.2 Examples of Configuring Bandwidth Control
Networking Requirement
The CPE is used in a company to deploy its network, and the device is set to Router mode. To ensure that every
device can access the internet smoothly, you want to specify a maximum upload/download for each device.
Assumption: The maximum upload rate of each device connected to the WiFi network of the CPE is 1 Mbps, and
download rate is 2 Mbps. And the IP address range of the devices connected to the WiFi network is
192.168.2.100 to 192.168.2.200.
Configuration Procedure
Step 1 Choose Advanced > Bandwidth Control.
Step 2 Enter a remark, such as Devices of Office1.
Step 3 Specify an IP address range, which are 100 and 200 in this example.
Step 4 Specify the maximum upload rate and download rate respectively, which are 1 and 2 in this example.
Step 5 Click Add.
----End

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
