Tenda O3 User Manual

138
----End
Verification
On the computer with the IP address of 202.105.106.55, start a browser and visit http://202.105.106.55:8080.
Then you can log in to the web UI of the CPE and configure the settings.

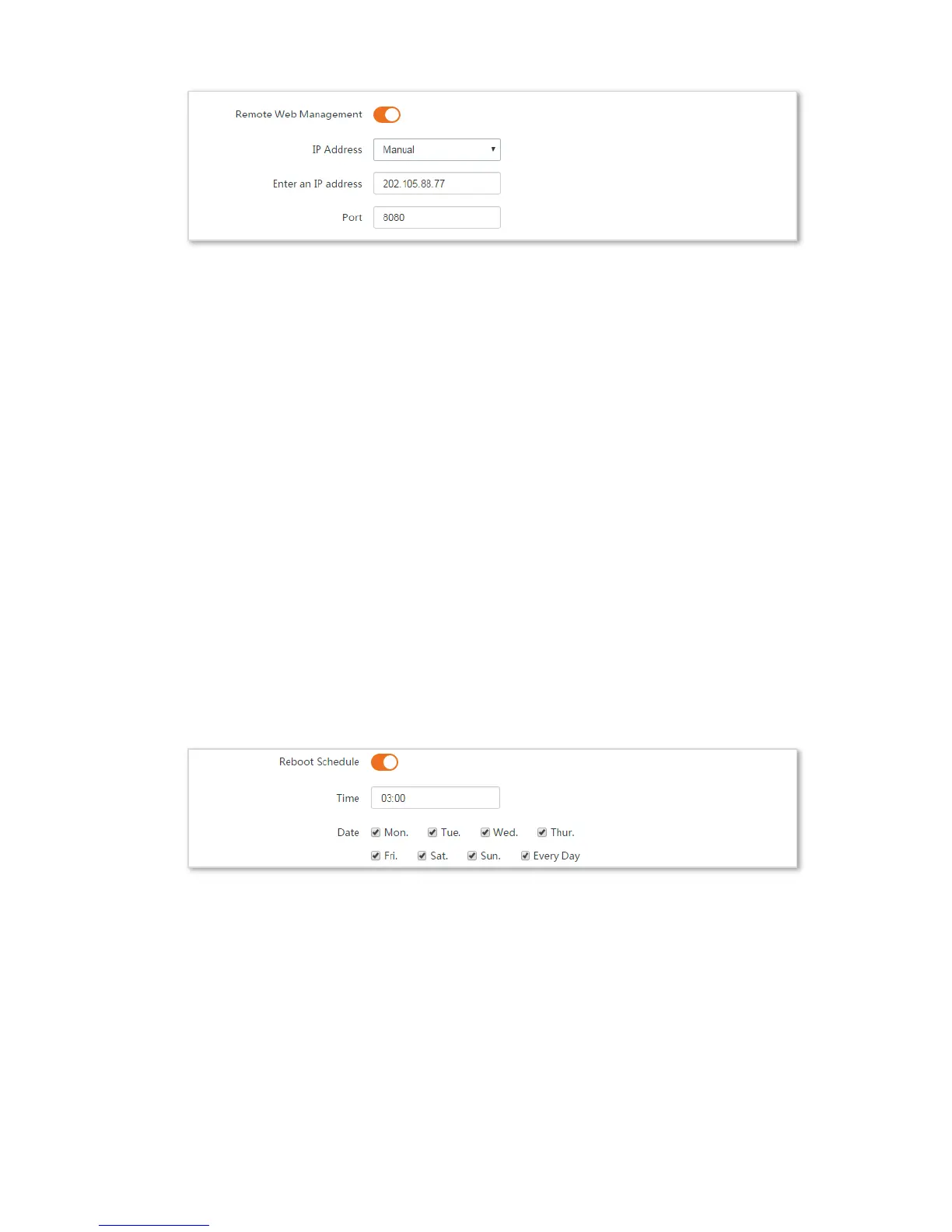

8.6.3 Reboot Schedule
Overview
This function enables the CPE to automatically reboot as scheduled. You can use this function to prevent wireless
performance degradation or network instability that occurs after a long CPE uptime.
Configuration Procedure
Step 1 Choose Advanced > Network Service.
Step 2 Enable the Reboot Schedule function.
Step 3 Specify a time at which the device reboots.
Step 4 Specify the dates on which the device reboots.
Step 5 Click Save on the bottom of this page.
----End
8.6.4 Login Timeout Interval
If you log in to the web UI of the CPE and perform no operation within the login timeout interval, the CPE logs
you out for network security. The default login timeout interval is 5 minutes.
Choose Advanced > Network Service to enter the page.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
