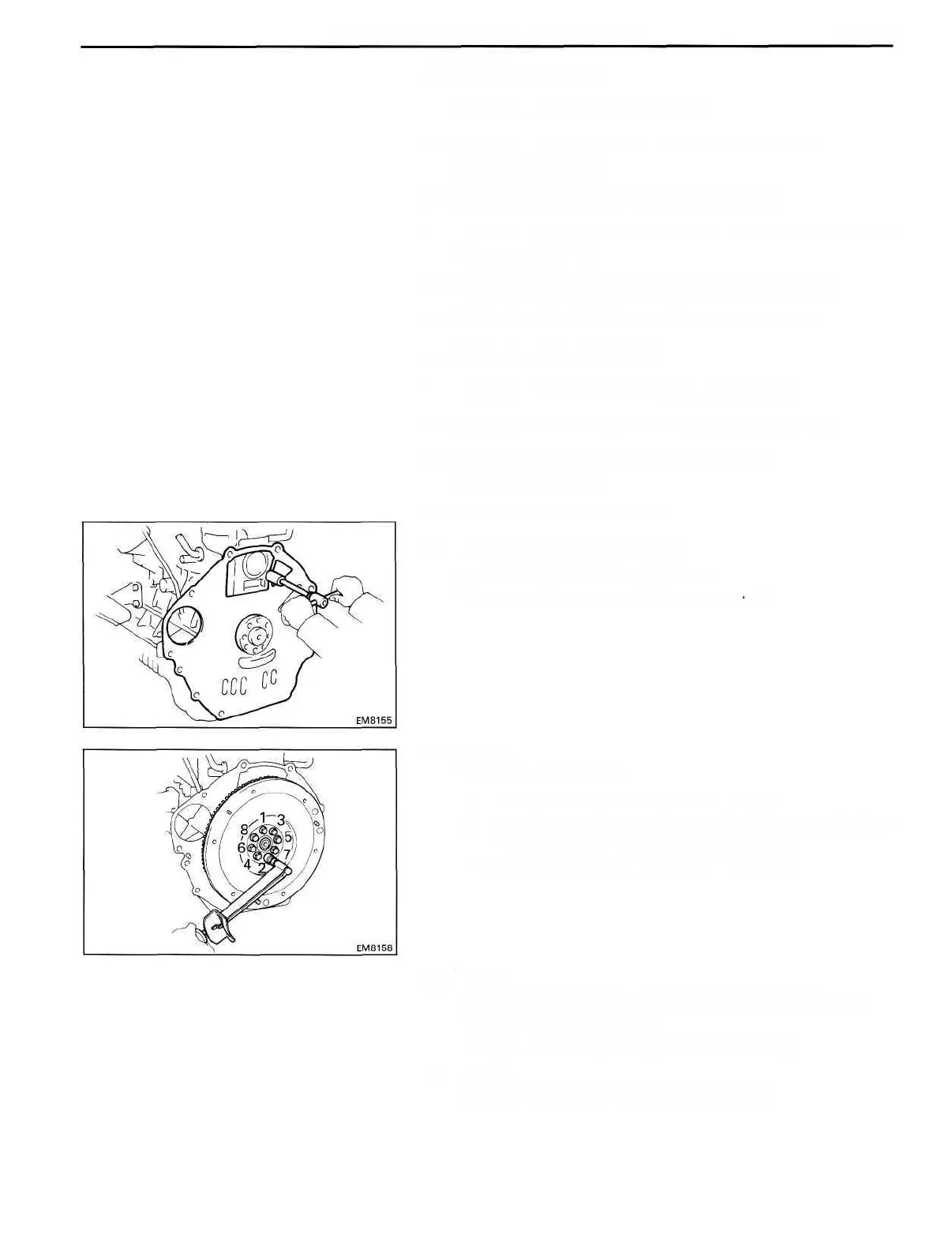

EM-113
ENGINE MECHANICAL - Cylinder Block
POST ASSEMBLY
1. INSTALL ENGINE MOUNTING
2. INSTALL THERMOSTAT AND WATER INLET
(See page CO-11)
3. INSTALL OIL COOLER (See page LU-18)
4. INSTALLTIMING GEAR CASE (OIL PUMP) AND OIL PAN
(See page LU-12)
5. INSTALL INJECTION PUMP (See page FU-93)
6. INSTALL TIMING GEARS (See page EM-50)
7. INSTALL ALTERNATOR
8. INSTALL WATER PUMP (See page CO-8)
9. INSTALL CYLINDER HEAD (See page EM-75)
10. INSTALL PULLEYS AND TIMING BELT
(See page EM-38)
11. REMOVE ENGINE STAND
12. INSTALL REAR END PLATE
Install the end plate with the bolt.
Torque: 185 kg-cm (13 ft-lb, 18 Nm)
13. (M/T)
INSTALL FLYWHEEL
(a) Install the flywheel on the crankshaft.
(b) Install and uniformly tighten the eight mount bolts in
several passes, in the sequence shown.
Torque: 1,300 kg-cm (94 ft-lb, 127 N-m)
14. (A/T)
INSTALL FLYWHEEL, DRIVE PLATE AND SPACER
(See procedure step 13)
Torque: 1,300 kg-cm (94 ft-lb, 127 N-m)
15. (M/T)
INSTALL CLUTCH DISC AND COVER
