EM-21
ENGINE MECHANICAL - Engine Tune-Up

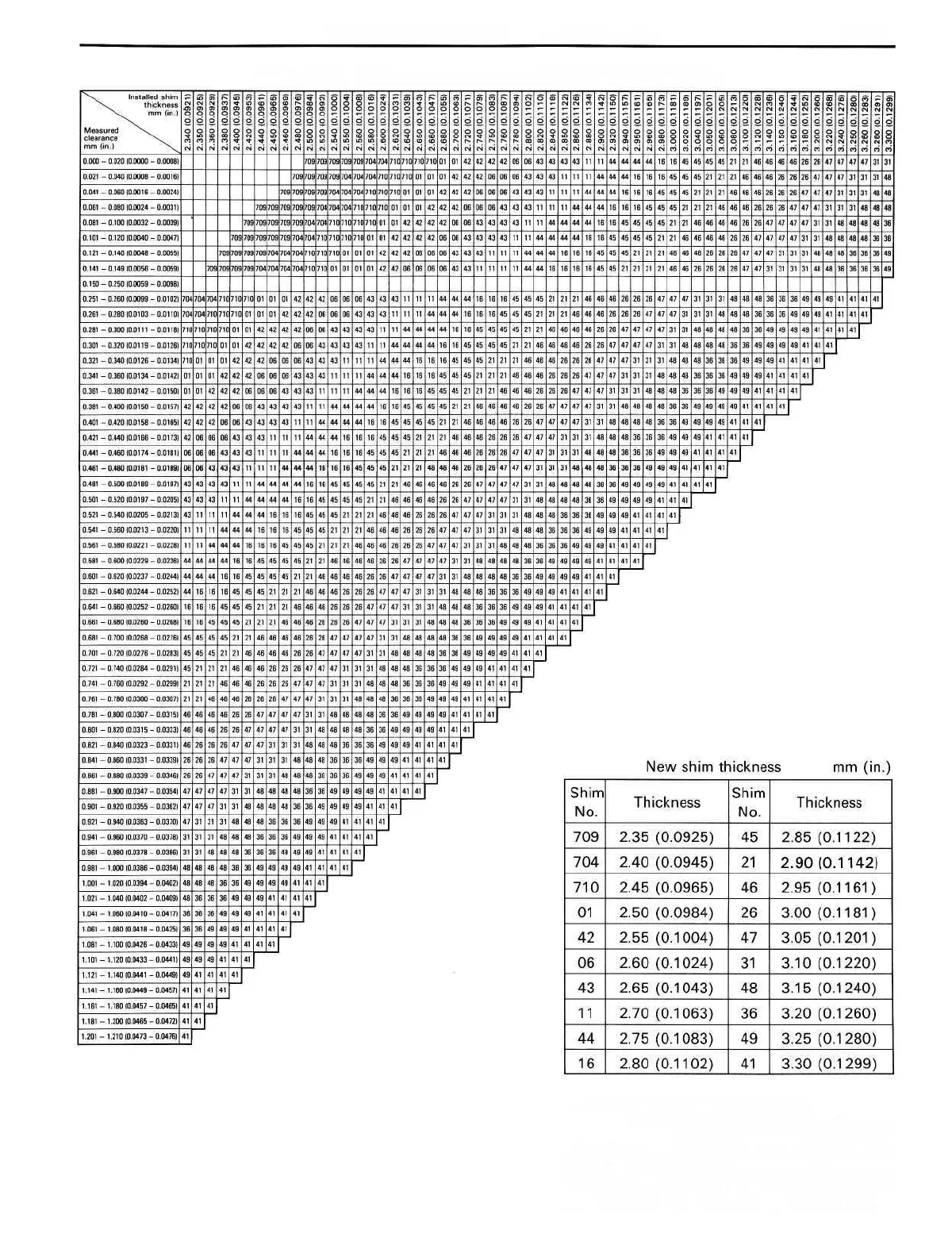

Adjusting Shim Selection Using Chart (Intake)
Intake valve clearance (Cold):
0.15-0.25 mm (0.006-0.010 in.)
EXAMPLE: The 2.800 mm (0.1102 in.)
shim is installed and the measured clearance
is 0.300 mm (0.0118 in.). Replace the 2.800
mm (0.1102 in.) shim with a No.21 shim.
