EM-26
ENGINE MECHANICAL - Engine Tune-Up
9. REMOVE SST AND DIAL INDICATOR
(a) Remove SST and the dial indicator.
SST 09275-54011

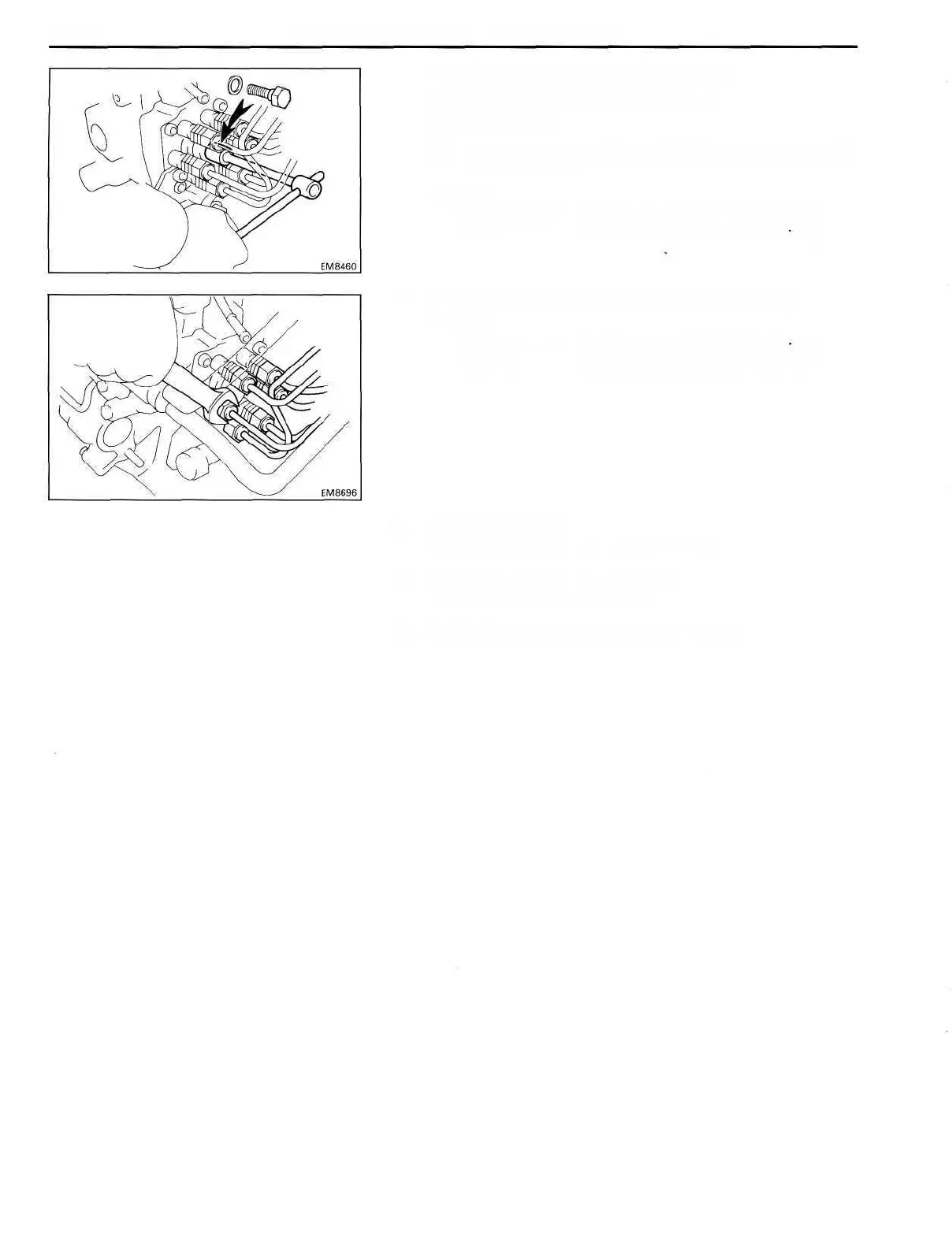

(b) Install a new gasket and the plug bolt of the distrib-
utive head plug.
Torque:
IPZ and 1HZ 170 kg-cm (12 ft-lb, 17 Nm)
1HD-T 260kg-cm (19 ft-lb, 25 Nm)
10. TORQUE UNION NUTS OF INJECTION PIPES
Torque:
1PZ and 1HZ 150kg-cm (11 ft-lb, 15 Nm)
1HD-T 250kg-cm (18 ft-lb, 25 N-m)
11. (1HD-T w/BACS)
INSTALL AIR CONTROL VALVE (ACV)
12. INSTALL TIMING BELT COVER
(See step 9 on page EM-41)
13. START ENGINE AND CHECK FOR LEAKS
To Next Page
