FU-94 FUEL SYSTEM - Injection Pump

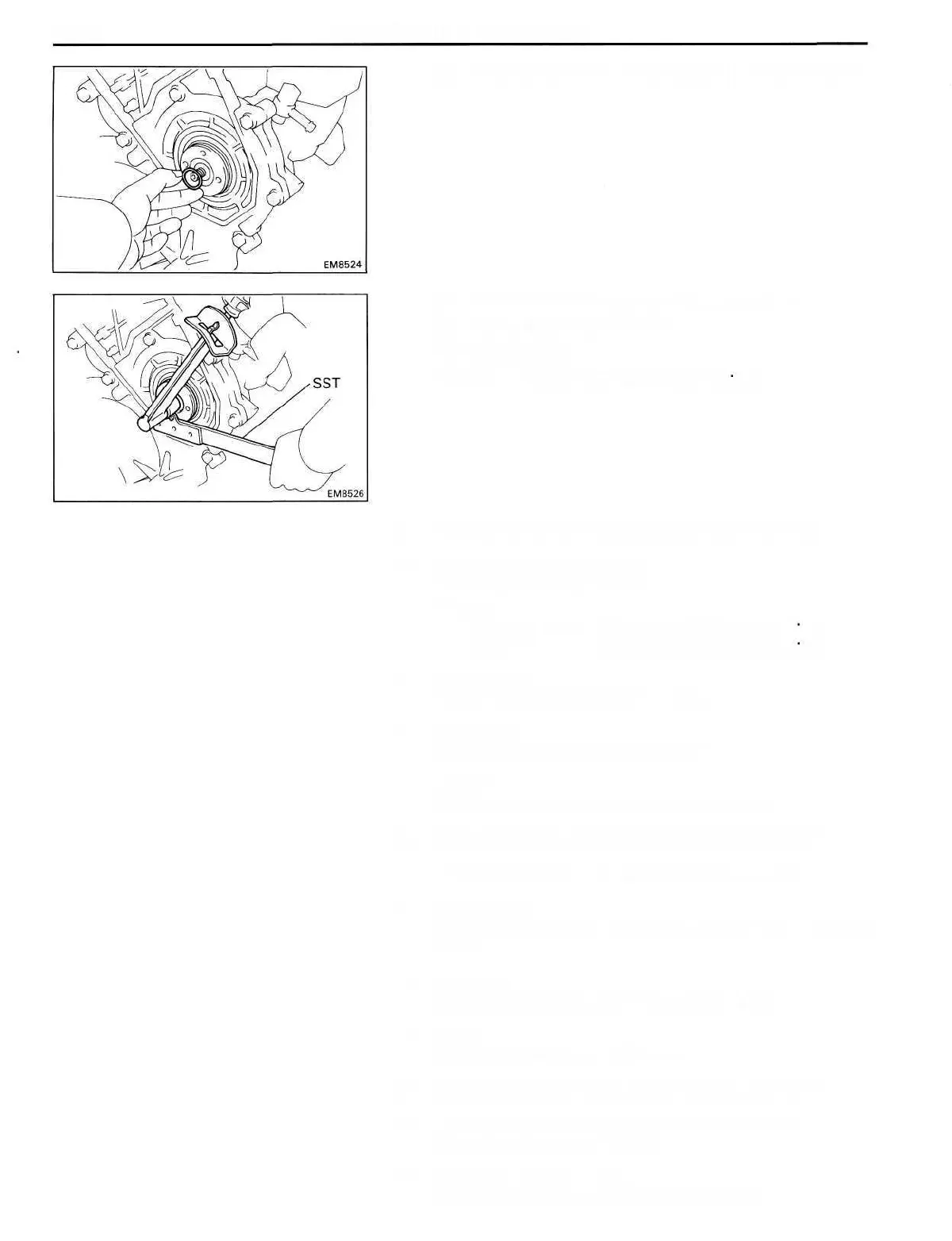

(h) Install a new O-ring to the injection pump drive gear.
(i) Install the injection pump drive gear set nut.
(j) Using SST, torque the nut.
SST 09330-00021
Torque: 1,000 kg-cm (72 ft-lb, 98 Nm)
2. CHECK INJECTION TIMING (See page EM-24)
3. INSTALL INJECTION PIPES
(See step 3 on page FU-15)
Torque:
"IPZand 1HZ 150 kg-cm (11 ft-lb, 15 Nm)
1HD-T 250 kg-cm (18 ft-lb, 25 Nm)
4. (w/ BACS)
CONNECT BACS VACUUM HOSE
5. (w/ PCS)
CONNECT PCS VACUUM HOSE
6. (1HD-T)
CONNECT BOOST COMPENSATOR HOSE
7. CONNECT FUEL HOSES TO INJECTION PUMP
8. CONNECT INJECTION PUMP CONNECTOR
9. (w/ ACSD)
CONNECT WATER BY-PASS HOSES TO THERMO
WAX
10. (w/A/C)
CONNECT A/C IDLE-UP VACUUM HOSE
11. (A/T)
CONNECT THROTTLE CABLE
12. CONNECT ACCELERATOR CONNECTING ROD
13. INSTALL NO.2 CAMSHAFT TIMING PULLEY
(See step 4 on page EM-39)
14. INSTALL TIMING BELT
(See steps 6 to 9 on pages EM-39 to 41)
To Next Page
