EG-73

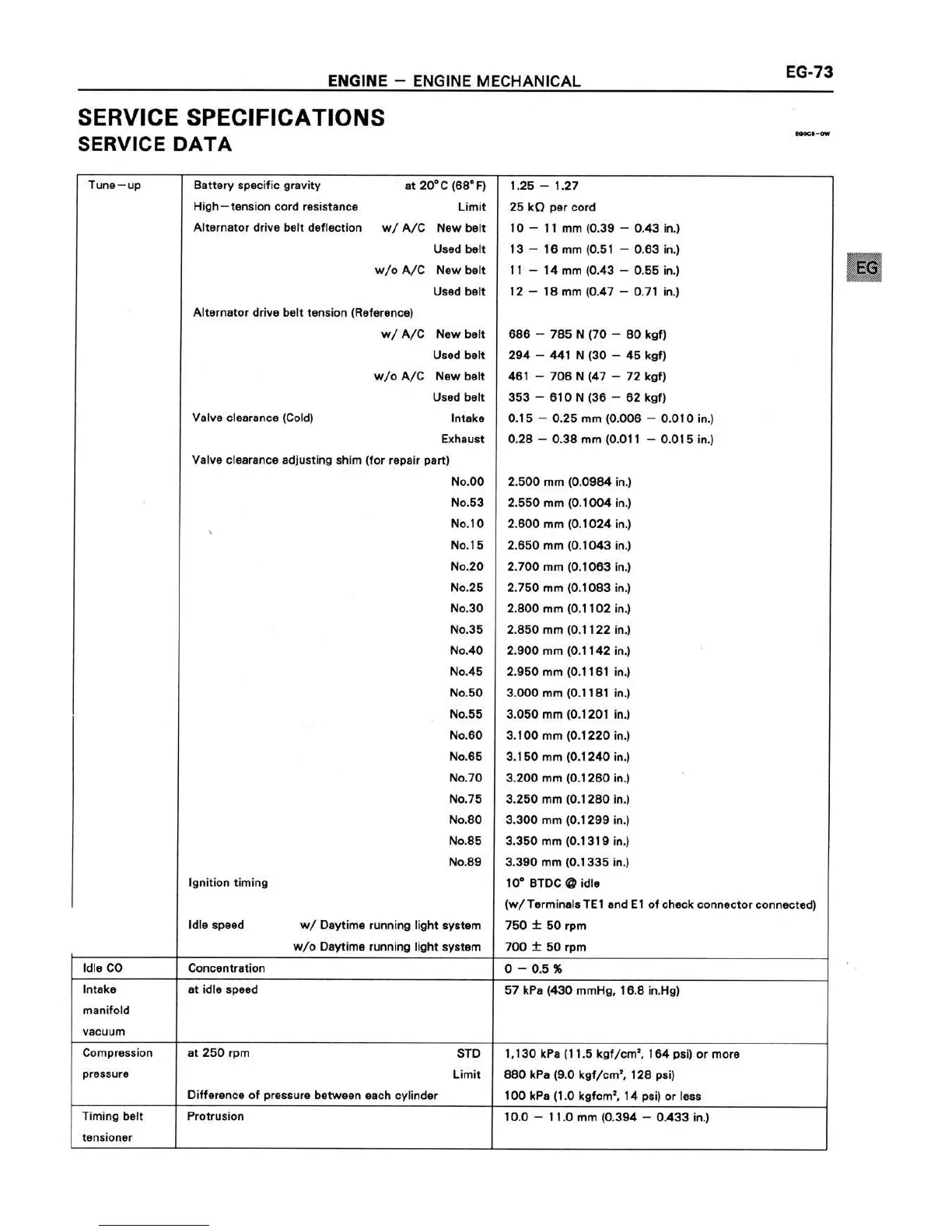

ENGINE — ENGINE MECHANICAL
SERVICE SPECIFICATIONS W M
SERVICE DATA _
Tune—up
l
Battery specific gravity at 20°C (68°Fl
High—tension cord resistance Limit
Alternator drive belt deflection w/ A/C New belt
Used belt
w/o A/C New belt
Used belt
Alternator drive belt tension (Reference)
w/ A/C New belt
Used belt
w/o A/C New belt
Used belt
Valve clearance (Cold) Intake
Exhaust
Valve clearance adjusting shim (for repair part)
No.00
No.53
No.10
No.15
No.20
No.25
No.30
No.35
No.40
No.45
No.50
No.55
No.60
No.65
No.70
No.75
No.80
No.85
No.89
Ignition timing
Idle speed w/ Daytime running light system
w/o Daytime running light system
1.25 — 1.27
25 kQ per cord
10 — 11 mm (0.39 — 0.43 in.)
13 — 16 mm (0.51 — 0.63 in.)
11 — 14 mm (0.43 — 0.55 in.)
12 — 18 mm (0.47 — 0.71 in.)
686 — 785 N (70 — 80 kgf)
294 — 441 N (30 — 45 kgf)
461 — 706 N (47 — 72 kgf)
353 — 610 N (36 - 62 kgf)
0.15 — 0.25 mm (0.006 — 0.010 in.)
0.28 — 0.38 mm (0.011 — 0.015 in.)
2.500 mm (0.09B4 in.)
2.550 mm (0.1004 in.)
2.600 mm (0.1024 in.)
2.850 mm (0.1043 in.)
2.700 mm (0.1063 in.)
2.750 mm (0.1083 in.)
2.800 mm (0.1 I02 in.)
2.850 mm (0.1 122 in.)
2.900 mm (0.1 142 in.)
2.950 mm (0.1161 in.)
3.000 mm (0.1181 in.)
3.050 mm (0.1201 in.)
3.100 mm (0.1220 in.)
3.150 mm (0.1240 in.)
3.200 mm (0.1260 in.)
3.250 mm (0.1280 in.)
3.300 mm (0.129!-1 in.)
3.350 mm (0.1319 in.)
3.390 mm (0.1335 in.)
10' BTDC Q idle
(w/ Terminals TE1 and E1 of check connector connected)
750 :1: 50 rpm
700 :1: 50 rpm
Idle CO Concentration
0—0.5%
Intake
manifold
vacuum
at idle speed
57 kPe (430 mmHg, 16.8 in.H9)
Compression
pressure
at 250 rpm STD
Limit
Difference of pressure between each cylinder
1,130 kPa (11.5 kgf/cm’. 164 psi) or more
880 kPe (9.0 kgf/cm‘, 128 psi)
100 kPe (1.0 kgfcm’. 14 psi) or less ‘
Timing belt
tensioner
Protrusion
10.0 — 11.0 mm (0.394 -~ 0.433 in.)
1 r
x=,?a.
