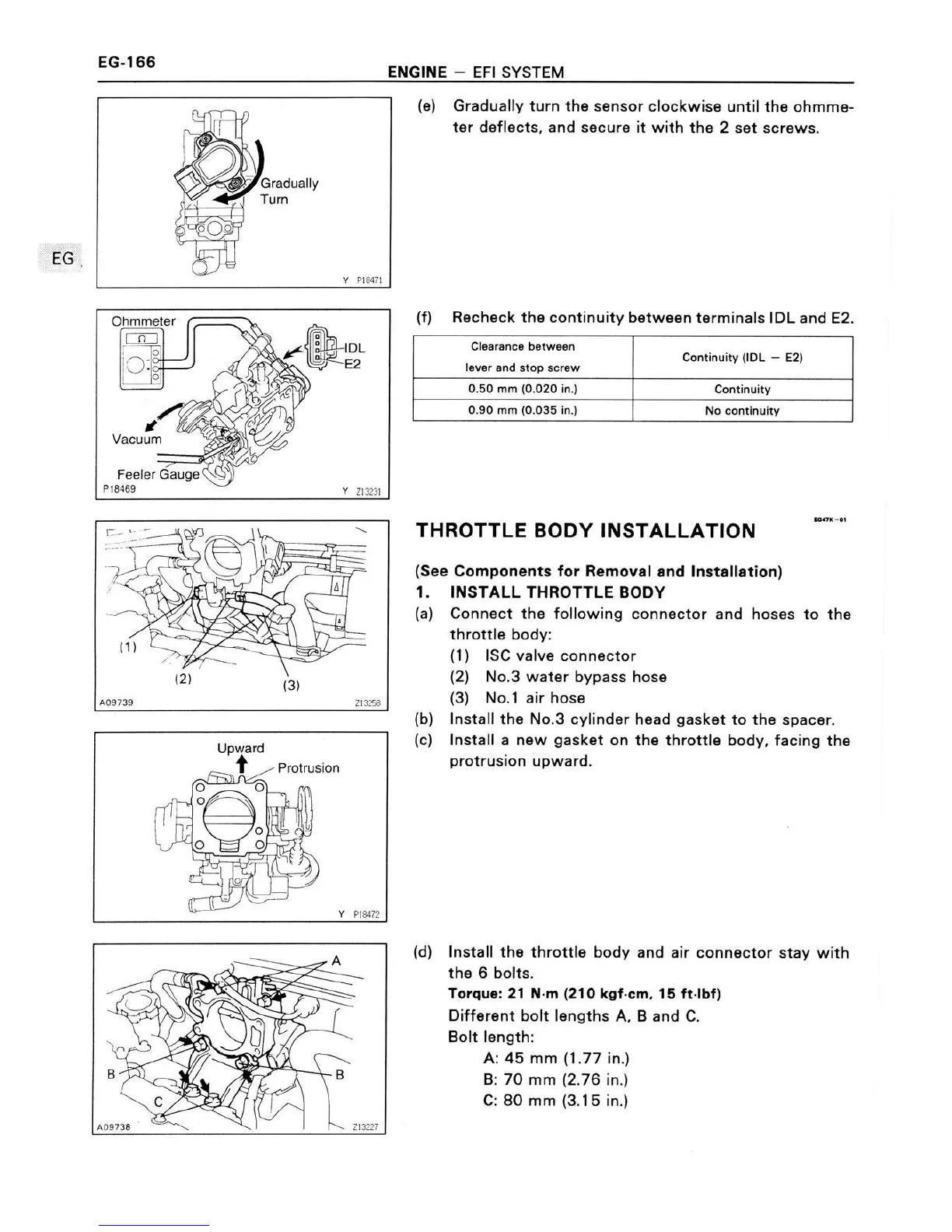

E6 166 ENGINE — EFI SYSTEM
: (:5 Gradually
Turn
mi
(e) Gradually turn the sensor clockwise until the ohmme-
ter deflects. and secure it with the 2 set screws.
Recheck the continuity between terminals IDL and E2
'3‘; & E2
Clearance between _ _
Continuity (IDL — E2)
lever and stop screw
0.50 mm (0.020 in.) Continuity
0.90 mm (0.035 in.) | No continuity
v?
0
\
&
I001!-BI
ROTTLE BODY INSTALLATION
-_ TH
Q
@
T
e Components for Removal and Installation)
Q
‘\'¢ .
fl" "
lb!’
i
1’
/‘I!
AD9739 _
E13?!
l “ 1%
‘*"“*’“ P1847
M W’/ll‘
"X
N4
A
1‘-J
INSTALL THROTTLE BODY
Connect the following connector and hoses to the
throttle body:
(I) ISC valve connector
(2) No.3 water bypass hose
(3) No.1 air hose
Install the No.3 cylinder head gasket to the spacer.
Install a new gasket on the throttle body, facing the
protrusion upward.
Install the throttle body and air connector stay with
the 6 bolts.
Torque: 21 N-m (210 kgf-cm. ‘I5 ft-Ibf)
Different bolt lengths A. B and C.
Bolt length:
A: 45 mm (1.77 in.)
B: 70 mm (2.76 in.)
C: 80 mm (3.15 in.)
