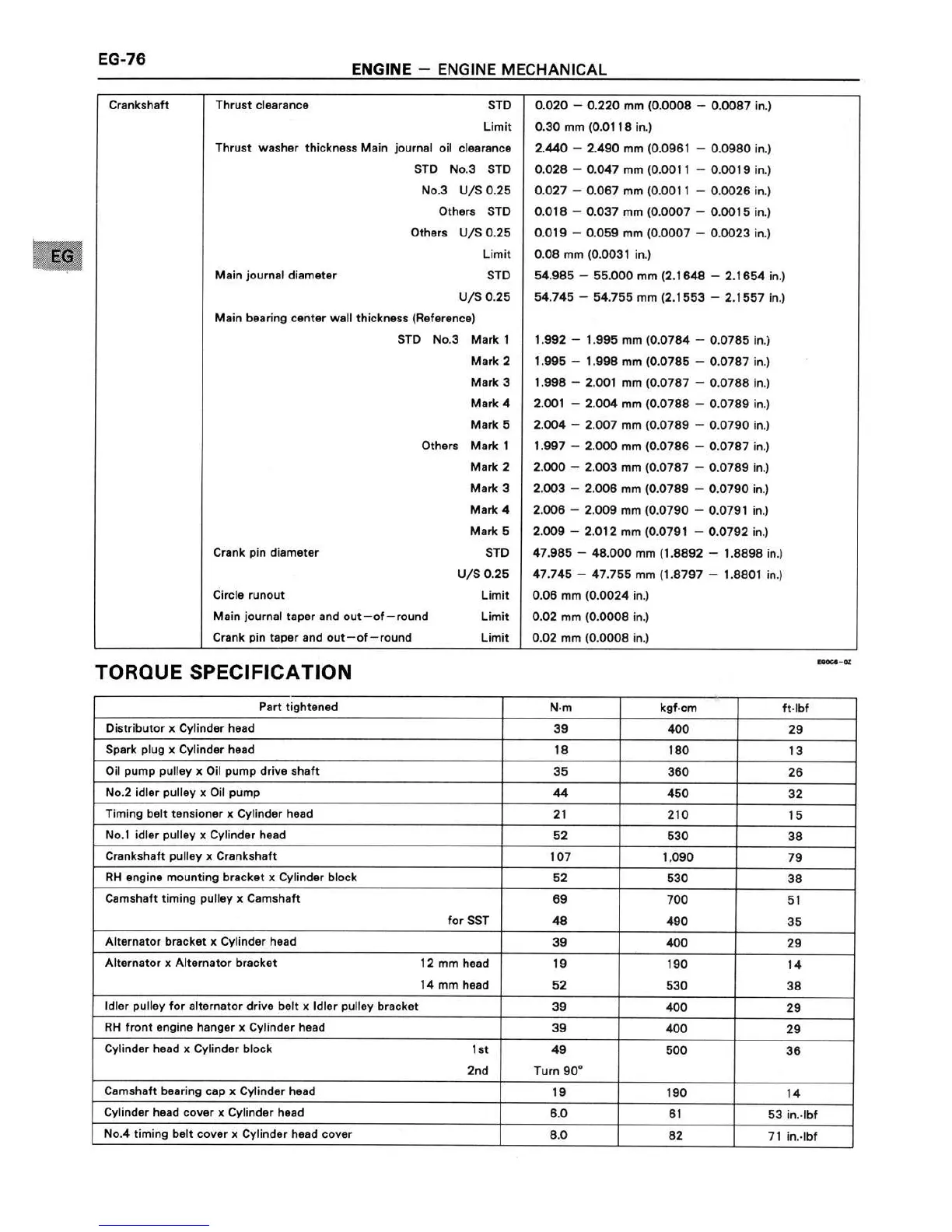

E6‘-'6 ENGINE — ENGINE MECHANICAL
Thrust clearance W 7 T STD Crankshaft
Limit
Thrust washer thickness Main journal oil clearance
STD No.3 STD
No.3 U/S 0.25
Others STD
Others U/S 0.25
Limit
Main journal diameter STD
U/S 0.25
Main bearing center wall thickness (Reference)
STD No.3 Mark 1
Mark 2
Mark 3
Mark 4
Mark 5
Mark 1
Mark 2
Mark 3
Mark 4
Mark 5
STD
U/S 0.25
Limit
Others
Crank pin diameter
Circle runout
Main journal taper and out—of—round Limit
Limit
Crank pin taper and out—of—round
0.020 — 0.220 mm (0.0008 — 0.0087 in.)
0.30 mm (0.01 18 in.)
2.440 —— 2.490 mm (0.098! — 0.0980 in.)
0.028 — 0.047 mm (0.0011 — 0.0019 in.)
0.027 — 0.067 mm (0.0011 — 0.0026 in.)
0.018 — 0.037 mm (0.0007 — 0.0015 in.)
0.019 — 0.059 mm (0.0007 — 0.0023 in.)
0.08 mm (0.0031 in.)
54.985 —- 55.000 mm (2.164-8 — 2.1654 in.)
54.745 — 54.755 mm (2.1553 — 2.1557 in.)
1.992 — 1.995 mm (0.0784 — 0.0785 in.)
1.995 — 1.998 mm (0.0785 — 0.0787 in.)
1.998 -— 2.001 mm (0.0787 — 0.0786 in.)
2.001 — 2.004 mm (0.0788 — 0.0789 in.)
2.004 — 2.007 mm (0.0789 —- 0.0790 in.)
1.997 — 2.000 mm (0.0786 -— 0.0787 in.)
2.000 — 2.003 mm (0.0787 — 0.0789 in.)
2.003 — 2.006 mm (0.0789 — 0.0790 in.)
2.006 - 2.009 mm (0.0790 — 0.0791 in.)
2.008 ~ 2.012 mm (0.0791 — 0.0792 in.)
47.905 - 4e.0oo mm (1.8892 - 1.8898in.)
41.745 - 47.755 mm (1.879? - 1.8801 in.)
0.0a mm (0.0024 in.)
0.02 mm (o.000e in.)
0.02 mm (0.0008 in.)
TORQUE SPECIFICATION
Part tightened
N-m kgf-cm
ft-lbf
Distributor x Cylinder head
39 4-00
29
Spark plug x Cylinder head
18 180
13
Oil pump pulley x Oil pump drive shaft
35 360
26
No.2 idler pulley x Oil pump
44 450
32
Timing belt tensioner x Cylinder head
21 210
15
No.1 idler pulley x Cylinder head
52 530
38
Crankshaft pulley x Crankshaft
107 ( 1.090
79
RH engine mounting bracket x Cylinder block
52 530
38
Camshaft timing pulley x Camshaft
for SST
69 700
48 490
51
35
Alternator bracket x Cylinder head
39 400
29
Alternator x Altemator bracket 12 mm heed
14 mm head
19 190
52 530
14
38
I Idler pulley for alternator drive belt x Idler pulley bracket
39 400
29
I RH front engine hanger x Cylinder head
39 400
29
Cylinder head x Cylinder block 1st
2nd Tum 90°
49 500
36
Camshaft bearing cap x Cylinder head
19 190
14
Cylinder head cover x Cylinder head
6.0 61
53 in.-lbf
No.4 timing belt cover x Cylinder head cover
8.0 82
71 in.-lbf
