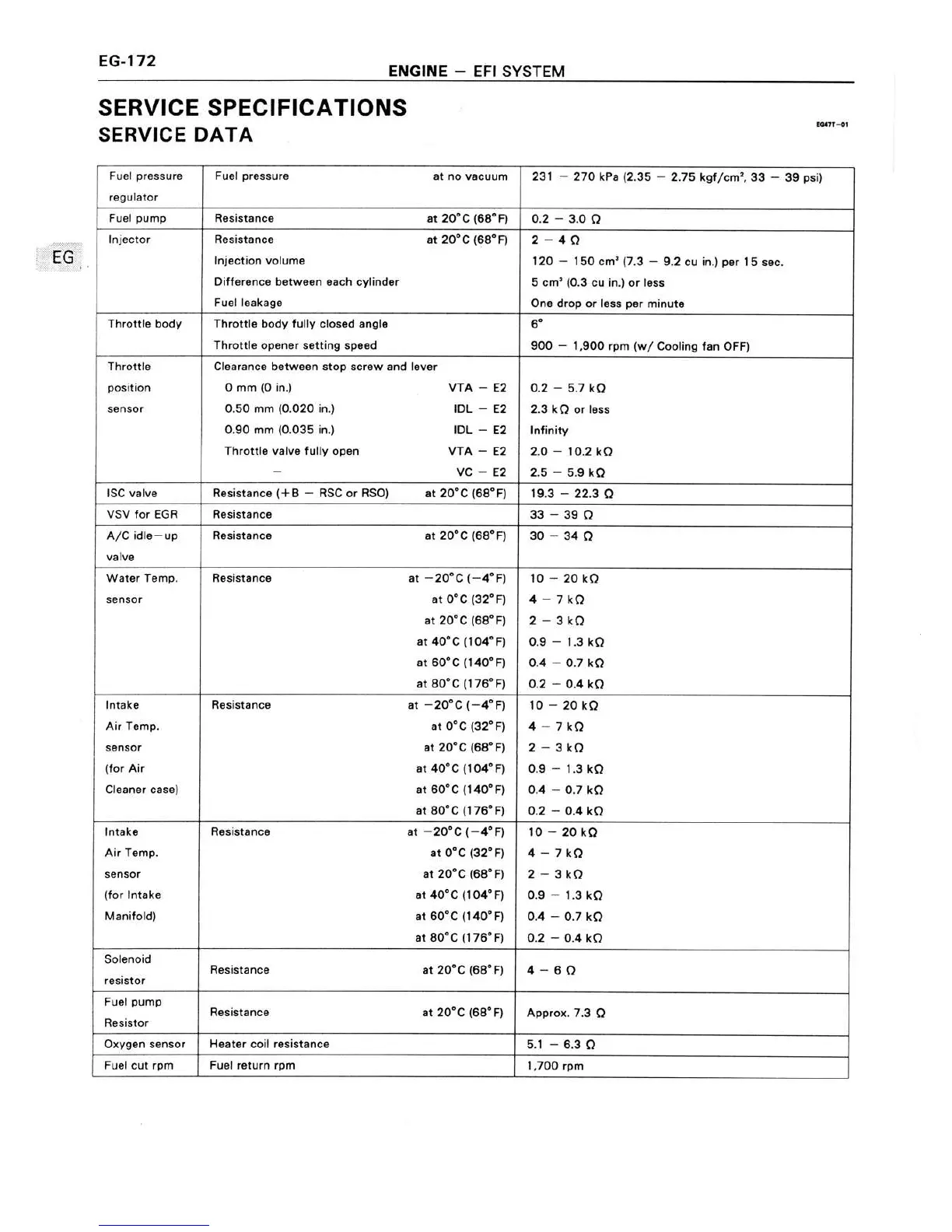

E6472 ENGINE - EFI SYSTEM
SERVICE SPECIFICATIONS
SERVICE DATA
Ml"-el
Fuel pressure
regulator
Fuel pressure
81 DO VBCUUITI
231 — 270 kPa (2.35 — 2.75 kgf/cm’, 33 — 39 psi)
Fuel pump Resistance
at 20°C (68° F)
0.2 — 3.0 Q
Injector Resistance
Injection volume
Difference between each cylinder
Fuel leakage
at 20°C (6B° F)
2-4Q
120 — 150 cm‘ (7.3 - 9.2 cu in.) per 15 sec.
5 cm‘ (0.3 cu in.) or less
One drop or less per minute
Throttle body Throttle body fully closed angle
Throttle opener setting speed
6:
900 — 1.900 rpm (w/ Cooling fan OFF)
Throttle
position
sensor
Clearance between stop screw and lever
0 mm (O in.)
0.50 mm (0.020 in.)
0.90 mm (0.035 in.)
Throttle valve fully open
VTA — E2
IDL — E2
IDL — E2
VTA — E2
VC —- E2
0.2 — 5.7 RQ
2.3 kQ or less
Infinity
2.0 — 10.2 kQ
2.5 — 5.9 ItQ
ISC valve Resistance (+B — RSC or RSO) 81 2030 (68°Fl
19.3 — 22.3 Q
VSV for EG R Resistance 33—39Q
A/C idle— up
valve
Resistance
et 20°C (68° F) 30-349
Water Temp.
sensor
Resistance at -2o°c (—4°F)
at o°c (32’F)
at 2o"c (68°F)
at 4o°c (104'F)
at eo°c (140°F)
at eo°c (176°F)
IO — 20 llQ
4 — 7kQ
2 — 3kQ
0.9 -1.3kQ
0.4 — 0.7 kQ
0.2 - 0.4 ltQ
Intake
Air Temp.
sensor
(for Air
Cleaner case]
Resistance
at —2o°c i—4°i=)
at o°c (:i2° F)
at 2o°c (68°F)
at 4o°c (104°F)
at eo°c (l40’F)
at eo°c (176°F)
I0 — 20 l<Q
4 —- 7kQ
2 — 3kQ
0.9 — 1.3 kQ
0.4 — 0.7 kQ
0.2 — 0.4 kQ
Intake
Air Temp.
sensor
(for Intake
Manifold)
Resistance at —2o"c (—4°F)
at o°c (32°F)
at 2o°c (6B°F)
at 4o°c (I 04° F)
at so°c (I40"F)
at so°c (176°F)
I0 — 20 kQ
4 — 7kQ
2 — 3kQ
0.9 —1.3kQ
0.4 — 0.7 kQ
0.2 — 0.4 kQ
Solenoid
resistor
Resistance
at 20°C (68° F) 4—6Q
Fuel pump
Resistor
Resistance
at 20°C (68° F)
Approx. 7.3 Q
Oxygen sensor Heater coil resistance
5.1 — 6.3 Q
Fuel cut rpm Fuel return rpm
1.700 rpm
