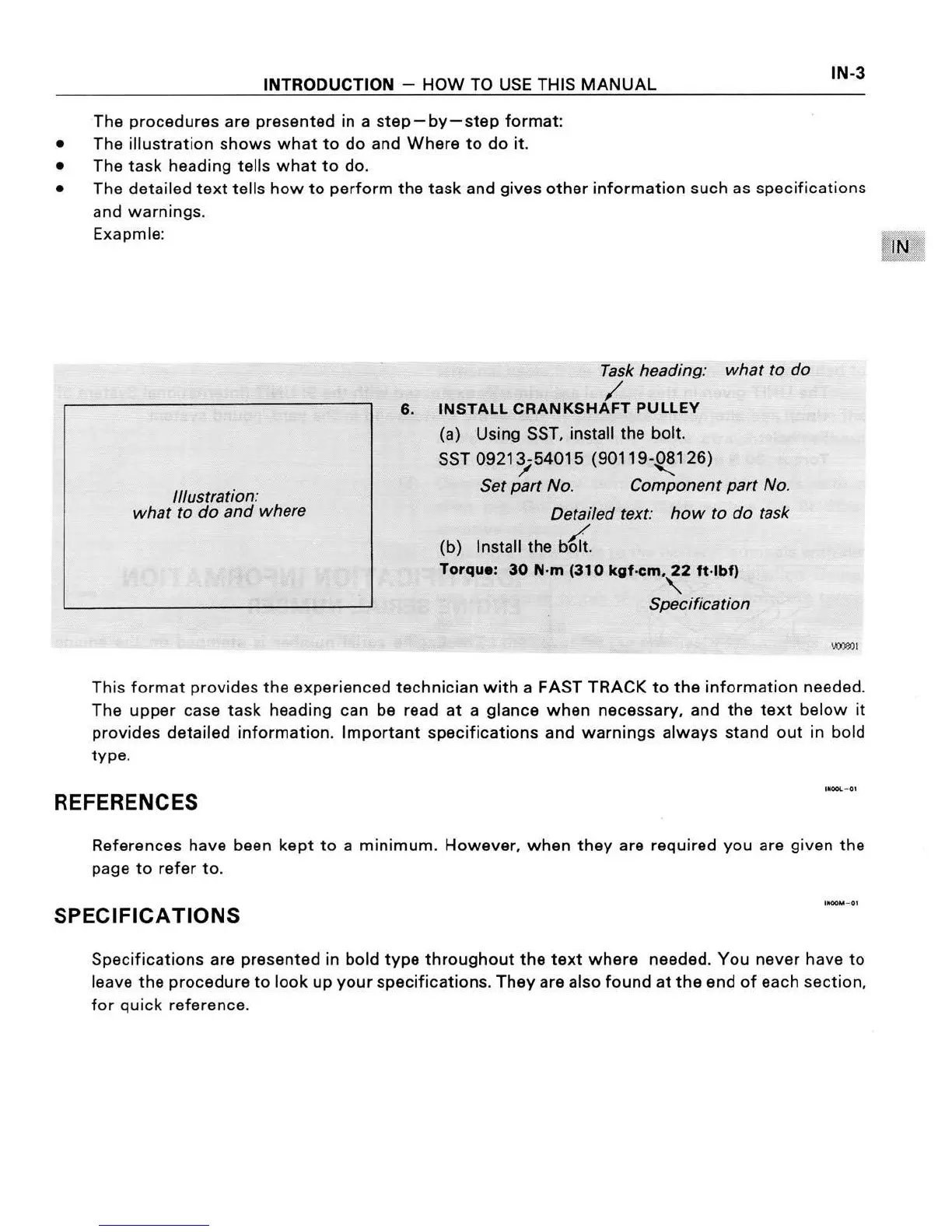

INTRODUCTION — HOW TO USE THIS MANUAL IN-3
The procedures are presented in a step—by—step format:
O The illustration shows what to do and Where to do it.
0 The task heading tells what to do.
0 The detailed text tells how to perform the task and gives other information such as specifications
and warnings.
Exapmle:
Task heading: what to do
. 5. INSTALL CRANKSHAFT PULLEY
(8) USIFIQ SST, install the IJOII.
SST 092113254015 (90119-Q2126)
”Ius”an.on._ Set pan No. Component part No.
what I0 G/0 arid Where Detailed text: how to do task
(b) Install the b6l/t.
Torque: 30 N-m (310 kgf-cm.<2 ft-lbf)
Specification
‘IUDI
This format provides the experienced technician with a FAST TRACK to the information needed.
The upper case task heading can be read at a glance when necessary, and the text below it
provides detailed information. Important specifications and warnings always stand out in bold
type.
REFERENCES
References have been kept to a minimum. However, when they are required you are given the
page to refer to.
SPECIFICATIONS
Specifications are presented in bold type throughout the text where needed. You never have to
leave the procedure to look up your specifications. They are also found at the end of each section,
for quick reference.
