Toyota 3S-GTE User Manual

EG-143
ENGINE — EFI SYSTEM
\ /T;
//
/
,(\©
A
//9 st
[B47]-DI

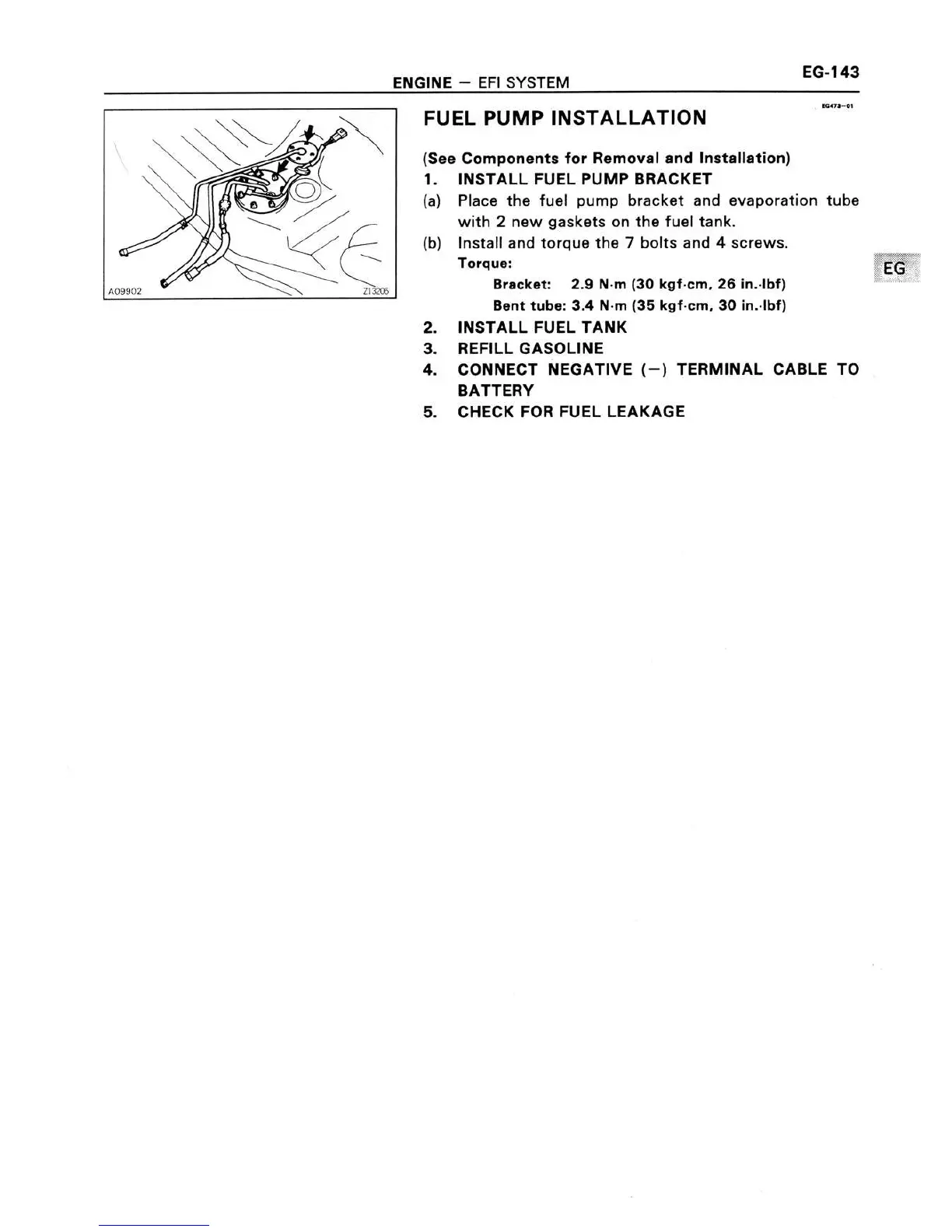

FUEL PUMP INSTALLATION
(See Components for Removal and Installation)
1. INSTALL FUEL PUMP BRACKET
(a) Place the fuel pump bracket and evaporation tube
with 2 new gaskets on the fuel tank.
(b) Install and torque the 7 bolts and 4 screws.
Torque:
Bracket: 2.9 N-m (30 kgf-cm. 26 in.-lbf) '
Bent tube: 3.4 N-m (35 kgf-cm. 30 in.-lbf)
2. INSTALL FUEL TANK
3. REFILL GASOLINE
4. CONNECT NEGATIVE (—) TERMINAL CABLE TO
BATTERY
5. CHECK FOR FUEL LEAKAGE
