Toyota 3S-GTE User Manual

E6456 ENGINE — EFI SYSTEM
9
01111131?
New insulator
FI5383
O e
1/ of
/R /S
.A-T I ‘ I Q‘ Q‘ . ' . ‘ f .
“re f%'~ F C:
H5092
P18505 2335.5
_§;q_
X
i L» ,
' 5'
v
.
é
W‘ W
New Insulator &
Y P185416
_¢
I 4
I \ _
_ or
O i
r’Piie
- “fir
Pl$?5Ul

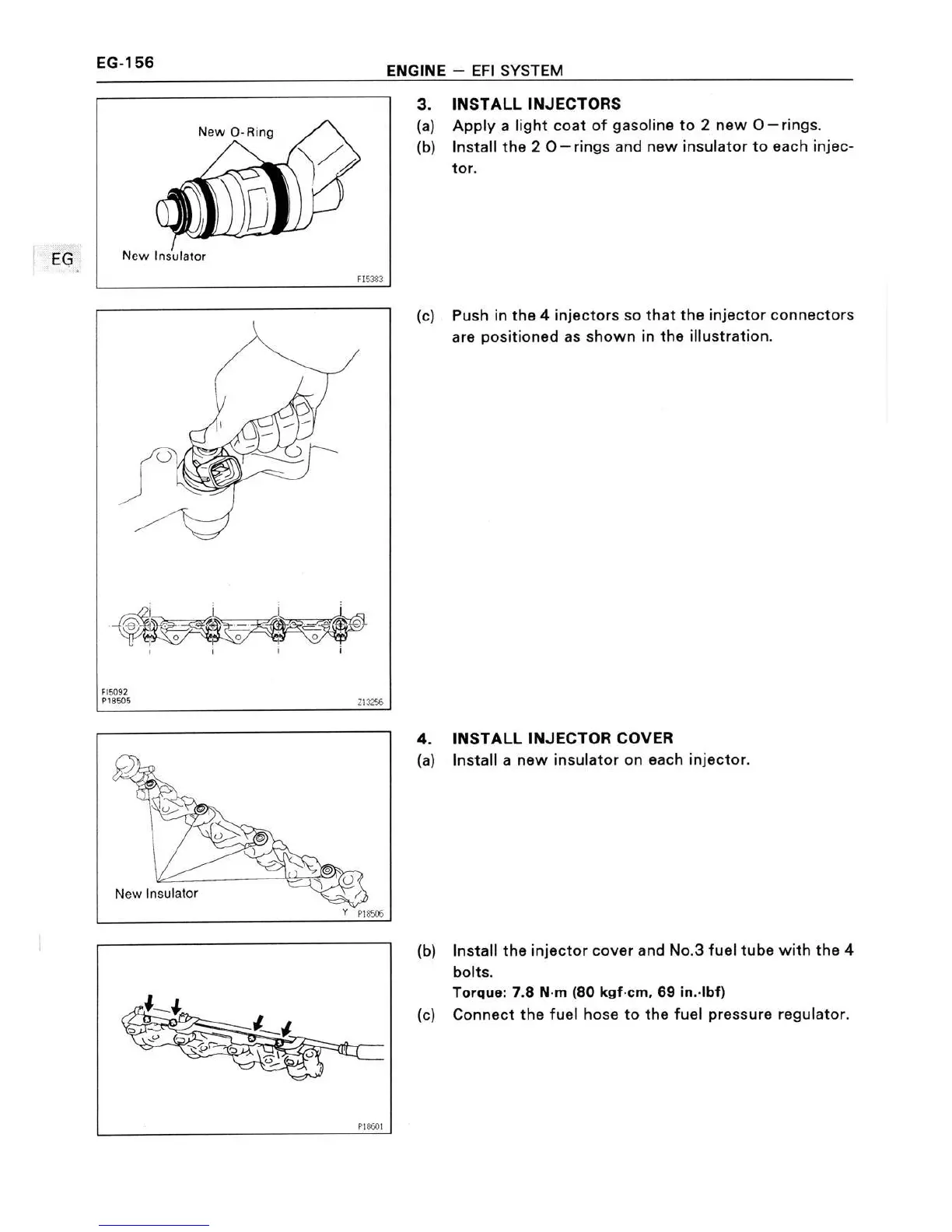

3. INSTALL INJECTORS
(a) Apply a light coat of gasoline to 2 new O—rings.
(b) Install the 2 O—rings and new insulator to each injec-
IIO|'.
(c) Push in the 4 injectors so that the injector connectors
are positioned as shown in the illustration.
4. INSTALL INJECTOR COVER
(a) Install a new insulator on each injector.
(b) Install the injector cover and No.3 fuel tube with the 4
bolts.
Torque: 7.8 N-m (80 kgf-cm. 69 in.-Ibf)
(c) Connect the fuel hose to the fuel pressure regulator.

Toyota 3S-GTE Specifications

General

Brand	Toyota
Model	3S-GTE
Category	Engine
Language	English
