EG-168
ENGINE — EFI SYSTEM

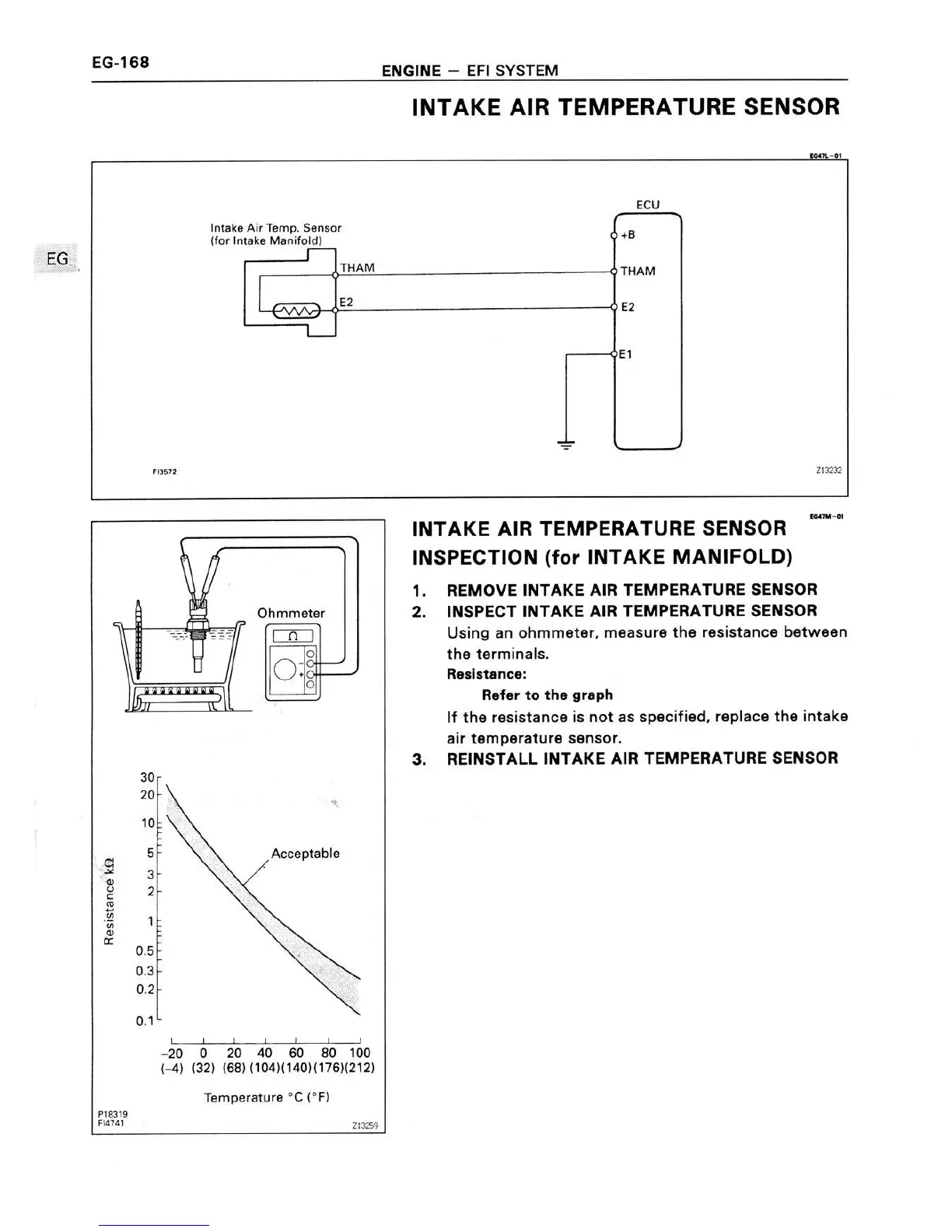

INTAKE AIR TEMPERATURE SENSOR
. ' T
Intake Air Temp. Sensor g+B
(for Intake Manifold)
THAM ta THAM
ECU
FI3572 ZKQQQ
E2
OE2
E1
'=' LS
tance k§2
Res s
-II i 12:’:
$.-
: Ohmmeter
ll _ o
l) eg-
30
20
10
Acceptable
O .0.0.0
—\ N) Q (,1 -3 K) OJ (J1
iii—‘r'—i—r-t-i—r1—i— —~ -r '' 1"—rT
u
—20 0 20 40 60 B0 I00
l—4l I32) l68ll104Il140Il176I(212l
Temperature °C ("Fl
PI83l9
H4741
Z1325’-3
INTAKE AIR TEMPERATURE SENSOR
INSPECTION (for INTAKE MANIFOLD)
1. REMOVE INTAKE AIR TEMPERATURE SENSOR
2. INSPECT INTAKE AIR TEMPERATURE SENSOR
Using an ohmmeter, measure the resistance between
the terminals.
Resistance:
Refer to the graph
If the resistance is not as specified, replace the intake
air temperature sensor.
3. REINSTALL INTAKE AIR TEMPERATURE SENSOR
