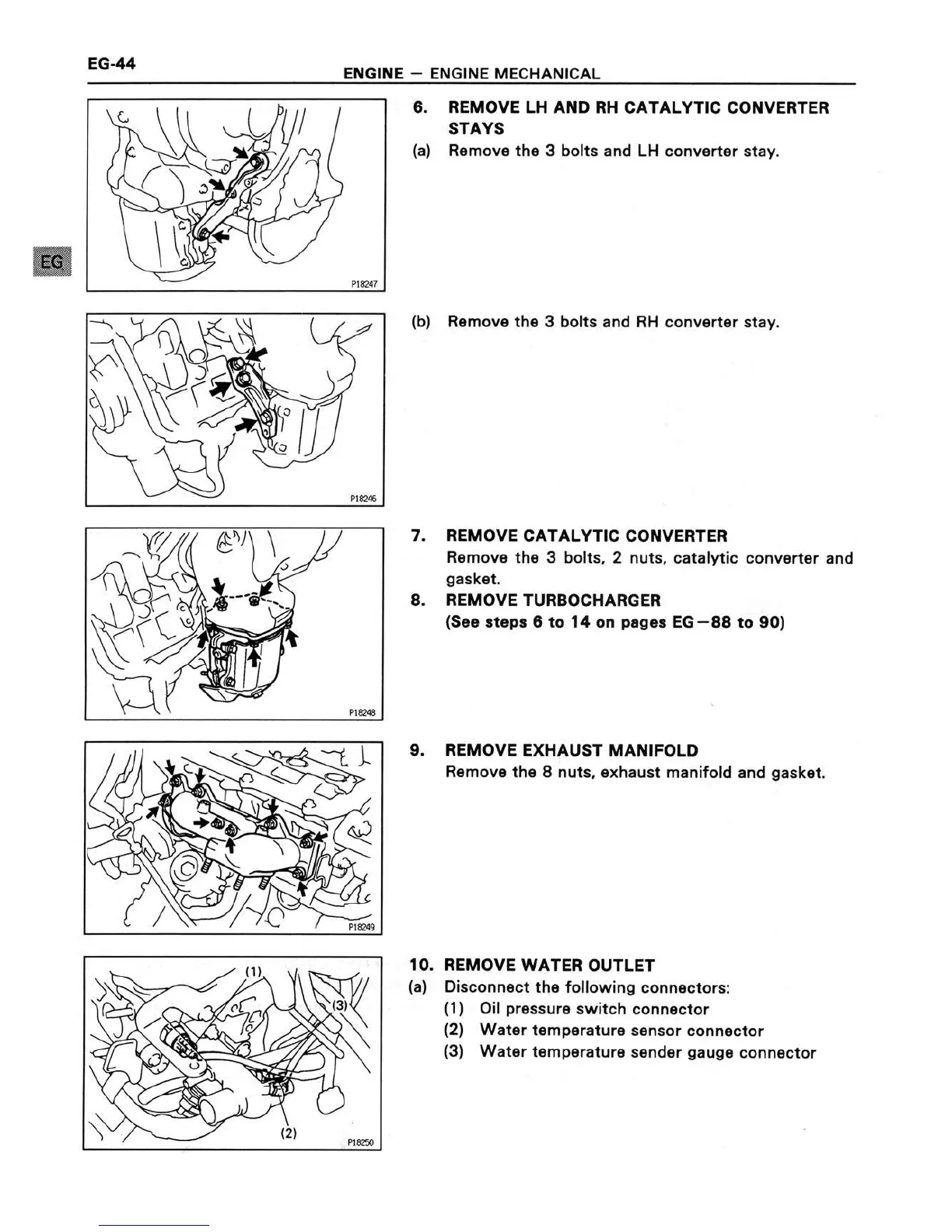

EG-44
ENGINE — ENGINE MECHANICAL
.1?‘
\=:{i./ /
C,
‘V
6. REMOVE LH AND RH CATALYTIC CONVERTER
STAYS
(a) Remove the 3 bolts and LH converter stay.
P1824?
“Q
2<\‘3,
./Va»
\‘.//
(b) Remove the 3 bolts and RH converter stay.
H8246
L1
1
' EM
_-1
6'>-'.~. ‘
5
.\'
AW ég/A) \ 7. REMOVE CATALYTIC CONVERTER
.>
Remove the 3 bolts, 2 nuts, catalytic converter and
gasket.
""~ 8 . REMOVE TURBOCHARGER
(See steps 6 to 14 on pages EG—88 to 90)
PI8248
vi L 9. REMOVE EXHAUST MANIFOLD
} H‘) Remove the 8 nuts. exhaust manifold and gasket.
4 " “‘\ W
» Q
/ ""' /.
,9?
//~ I
(1) 10. REMOVE WATER OUTLET
a Dlsconnec |n conne or
5
t the follow g ct s
(1) Oll pressure swltch connector
( ) . . :
/ (3) ' '
‘ '§ (2) Water temperature sensor connector
. l\fi (3) Water temperature sender gauge connector
\ ‘$3 ‘
P16250
