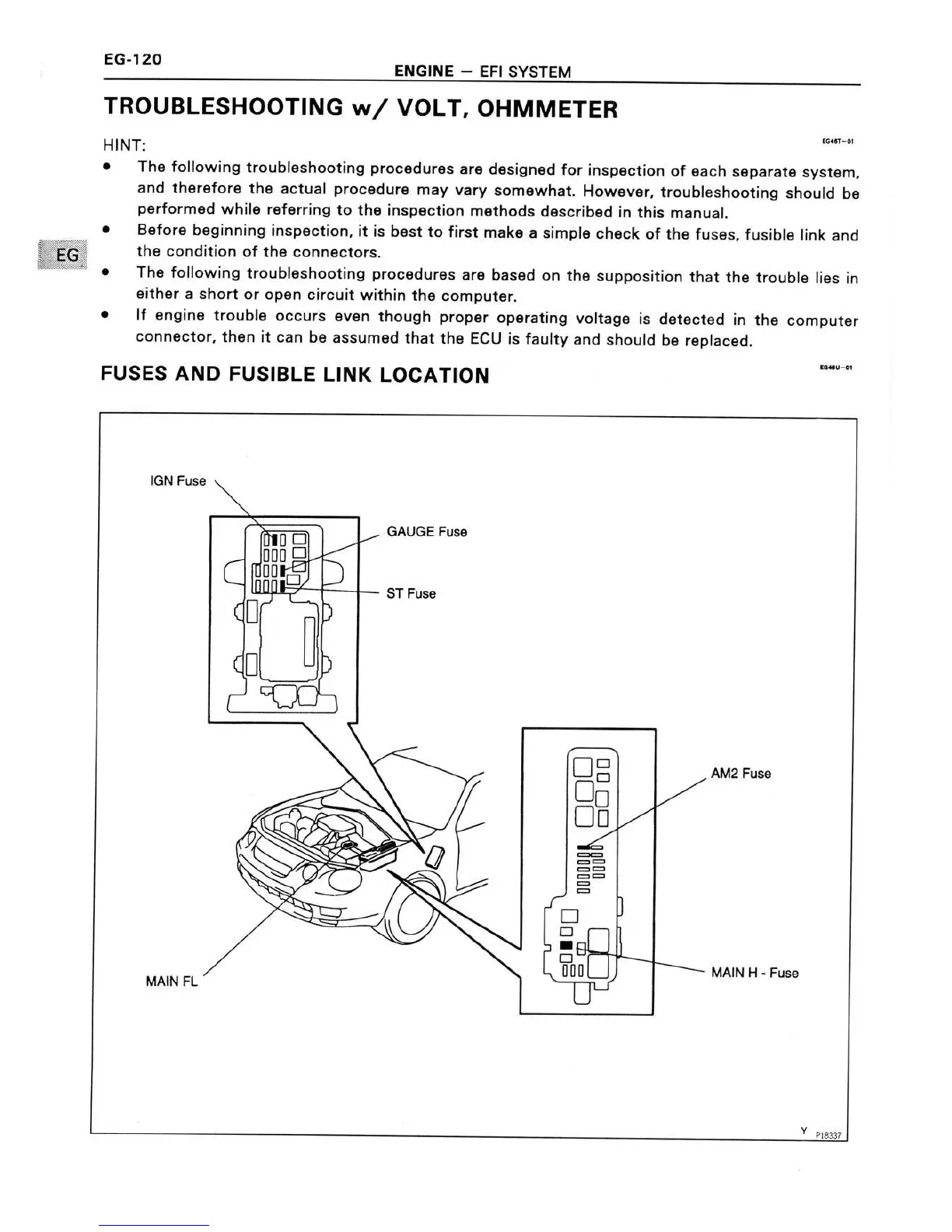

E6420 ENGINE ~ EFI SYSTEM
TROUBLESHOOTING w/ VOLT. OHMMETER
HINT:
I The following troubleshooting procedures are designed for inspection of each separate system,
and therefore the actual procedure may vary somewhat. However. troubleshooting should be
performed while referring to the inspection methods described in this manual.
I Before beginning inspection, it is best to first make a simple check of the fuses, fusible link and
the condition of the connectors.
0 The following troubleshooting procedures are based on the supposition that the trouble lies in
either a short or open circuit within the computer.
0 If engine trouble occurs even though proper operating voltage is detected in the computer
connector, then it can be assumed that the ECU is faulty and should be replaced.
FUSES AND FUSIBLE LINK LOCATION
E6-ll‘T"Ol
IQQU -OI
IGN Fuse
GAUGE Fuse
[l
I I
ST Fuse
U 5 ‘ AM2 Fuse
U0
U 1:1
N
Z1
Z1
Z1
| A13 T
elites/.
xv; '
Q 4
El] I U [1
Z
Z
MAIN H - Fuse
MAIN FL
g
Y P1833?
