EG'5° ENGINE - ENGINE MECHANICAL
Outward Sm
‘ ¢@ 1 “‘
-—> all‘
.
Sow
' Outward
~. YA
%§\ ‘-/“In T“ \
,.*~ir“>‘1‘- - , *1")
an’-;._§Y_gP\’ ',",‘_é*1\)\\\‘/
it
P1823?
/
Seal Packing
EM2252
Front
@@@.-;,.
V3 at
~qra‘\‘- ;- -.8?‘ /K
lg .
t 1- /yj, .
/3-?*“@I§@
“Pi
\
\
/
Ft
it
;@
P182313
P1823)
D?!
\
W
\'°\
K)
6 (d)
o 4 -
8 .'-"
'_, I
__ 10 -_.-v __ 6
i
‘ ’- ' KP’
1...-
‘?_‘~Z~'
v Q
a.
“ii
géw
5
.,_“ (B)
ZI30?0

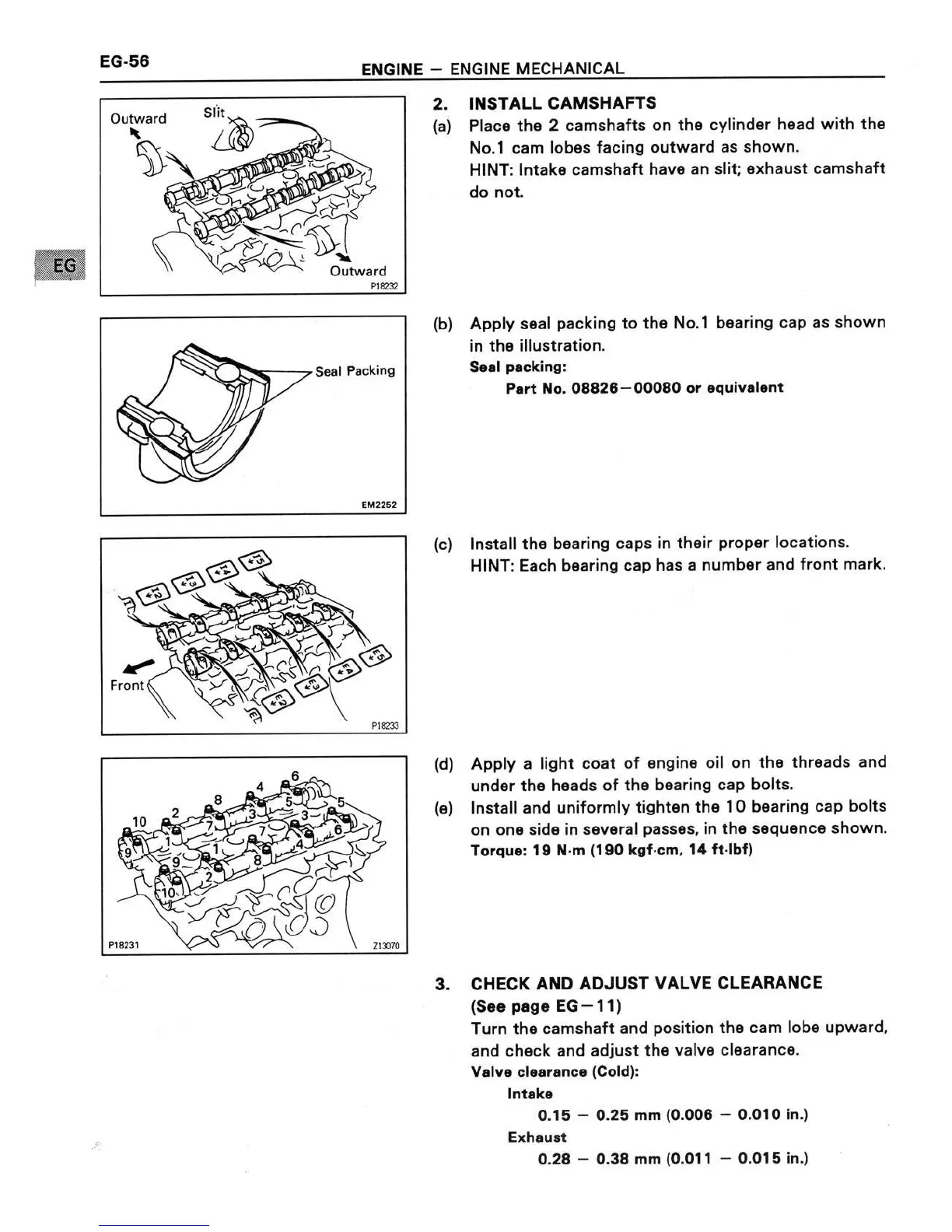

INSTALL CAMSHAFTS
Place the 2 camshafts on the cylinder head with the
No.1 cam lobes facing outward as shown.
HINT: Intake camshaft have an slit; exhaust camshaft
do not.
Apply seal packing to the No.1 bearing cap as shown
in the illustration.
Seal packing:
Part No. 08826-00080 or equivalent
Install the bearing caps in their proper locations.
HINT: Each bearing cap has a number and front mark.
Apply a light coat of engine oil on the threads and
under the heads of the bearing cap bolts.
Install and uniformly tighten the 10 bearing cap bolts
on one side in several passes, in the sequence shown.
Torque: 19 N-m (190 kgf-cm. 14 ft-lbf)
CHECK AND ADJUST VALVE CLEARANCE
(See page EG-11)
Turn the camshaft and position the cam lobe upward.
and check and adjust the valve clearance.
Valve clearance (Cold):
Intake
0.15 — 0.25 mm (0.008 — 0.010 in.)
Exhaust
0.28 -— 0.38 mm (0.011 -— 0.015 in.)
